Add Site
After adding the Region, the user needs to add the Site.
NOTE:
The following points are required to view data on
Site level dashboard
:- Data from different meters which are directly connected to a Site node will be considered for the data aggregation.
- For consumption and demand charts, the respective resource meter has to be configured with the proper tag mapping.
- For Cost charts, the respective rate schedule should be configured at the Site level.
- For Emission, the respective emission factor should be configured at the Site level.
- For Production and energy intensity charts should have correct tag mapping for production count measurement.
- Harmonized units are defined at the Enterprise level and will be used to display harmonized consumption, intensity, or emissions data.
Perform the following steps to add a Site under Region:
- Select theRegionfrom the hierarchy list.
- Click the [
] icon and click Add.TheAdd Newdialog is displayed.Add New Site Dialog

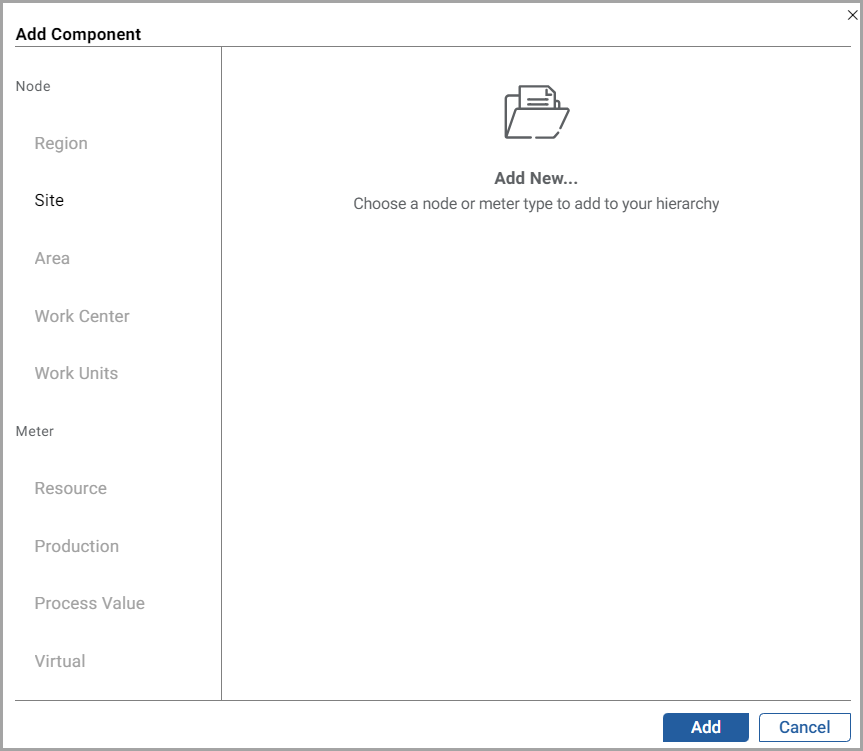

- ClickAdd.TheAdd Componentdialog box is displayed.Add Component -Site Dialog

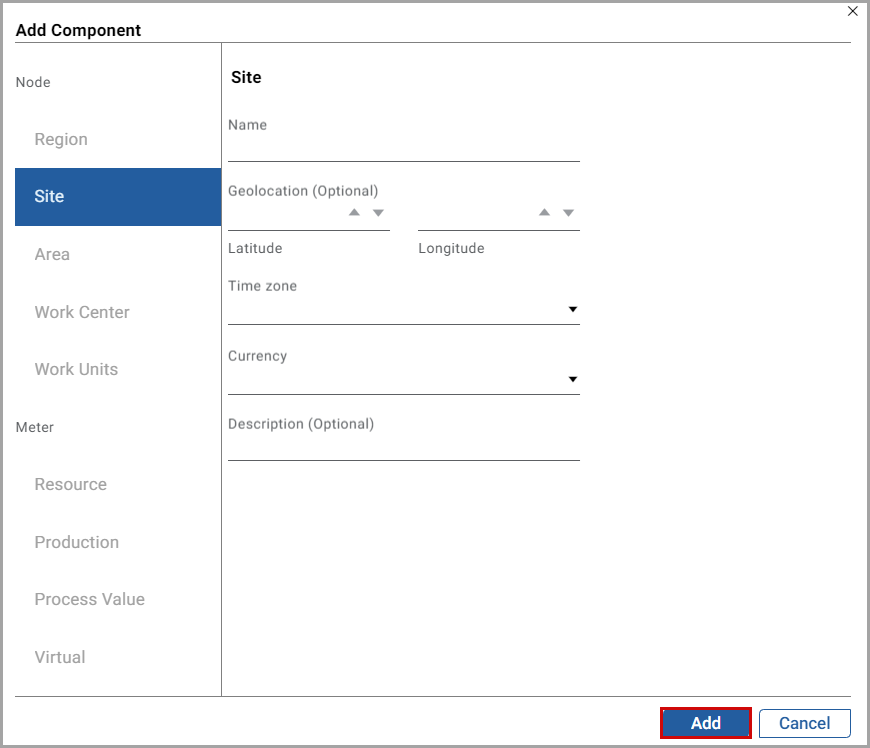

- UnderNode, clickSiteand set these parameters:
- Name: Provide a Site name.
- Geolocation: Provide a latitude and longitude details of the Site.NOTE:After providing the values, use the up-arrow and down-arrow to increase and decrease the values.
- Time zone: Select a time zone from the drop-down list.
- Currency: Select a currency from the drop-down list.
- Description: Provide a description of the Site.
NOTE:In the Site component, the user can configure base details (geolocation, currency, time zone) and configure the Site level: Configure Resource Types, Site level: Configure Emissions Factors, Site level: Configure Measurands, Site level: Configure Parameters, and Site level: Configure Rate Schedules. - ClickAdd.
The "
Site added under Region successfully
" message is displayed.The user can also export the data file to local. For more details, see Export Data File.
