LD Elements
When editing a Ladder Diagram (LD) program organization unit (POU), place elements in a
language container by dragging them from the LD Toolbox or from a contextual menu accessed
by right-clicking. An element is inserted at the current position in the diagram. When
inserting subsequent elements, these are placed to the right of the selected element on the
rung, then onto the next rung. These elements are available for LD POUs:
- Rungs
- Blocks
- Coils
- Contacts
- Jumps
- Returns
- Branches
While dragging rungs and elements from either the toolbox or within a diagram, the language
editor displays the possible drop points. Drop points are displayed as plus signs in a black
circle. For rungs, the possible drop points are displayed between the rung handles on the
left. For elements, the possible drop points are displayed on the rung.

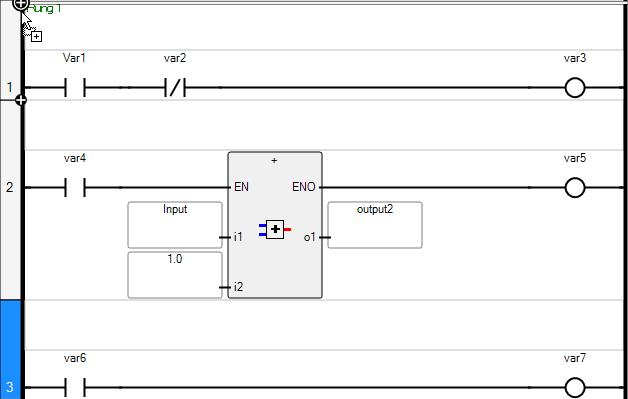

Drop points between rung handles while dragging a rung in a diagram

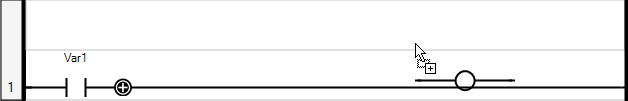

Drop points on a rung while dragging elements over the rung
