Create a Controller Project

To create a controller project, use the

Studio 5000 Logix Designer®

application.

Open the Logix Designer application and click New Project.

Choose the controller catalog number, name the controller, and click Next.

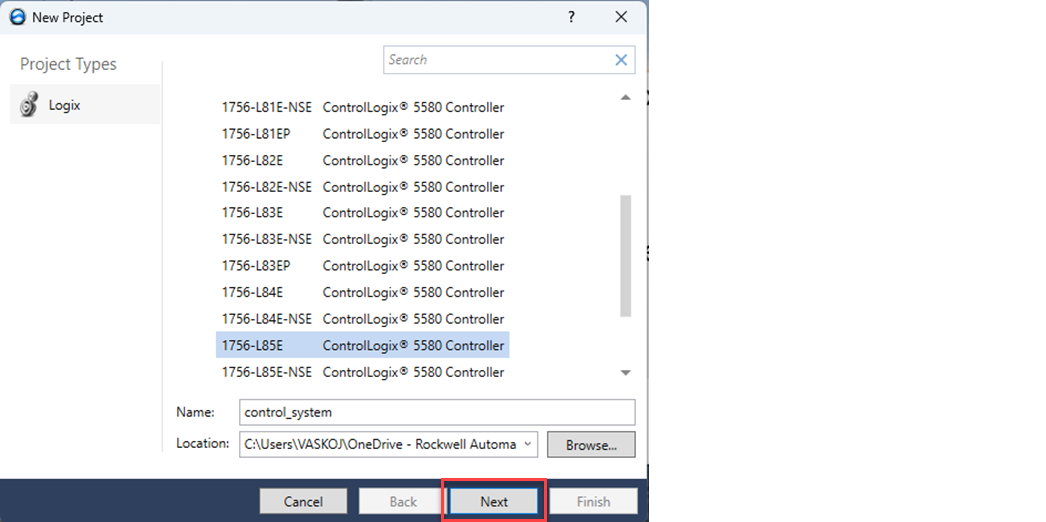

This image shows where to name a new ControlLogix 5580 controller project in Logix Designer.

Define the properties of the controller, and click Finish:

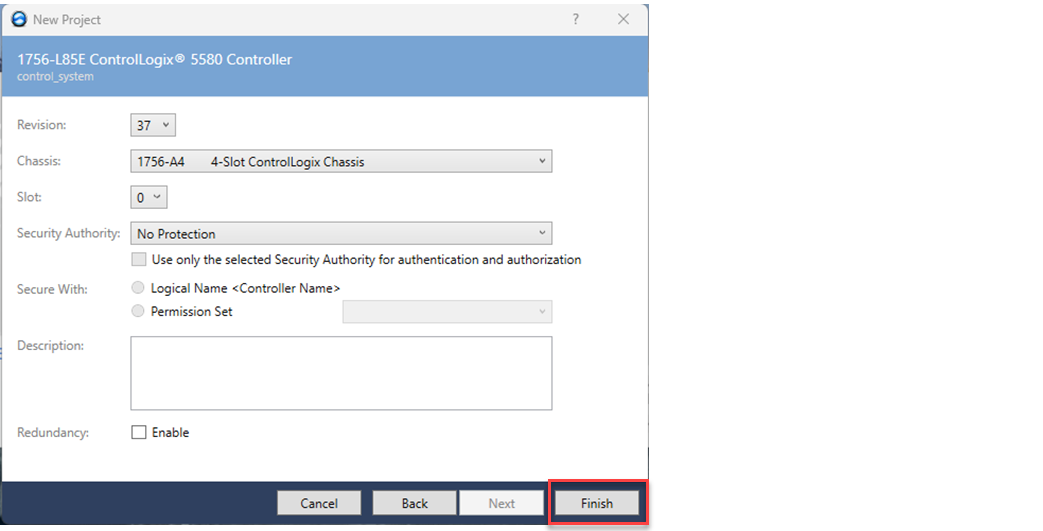

This image shows where to finish a new ControlLogix 5580 project in Logix Designer.
