Performing Updates

Modify a controller while it runs. This is sometimes necessary for processes where any interruption may jeopardize production or safety. When performing builds with unsupported update modifications, warnings may display.
IMPORTANT: When performing updates, ensure there is sufficient free memory space for the storage of modified or added items. Updates are denied when memory space is insufficient. Specify the available memory size for updates in the controller properties.
Modify the I/O configuration of a controller. Modifications to the controller I/O must match the hardware configuration. To modify the controller I/O, the
Update I/O Device Online
controller property must be enabled. The default value for this property is
False
.
WARNING:
  • Performing updates while the application is running can affect the Safety Function of the system. Updates should only be performed when absolutely required since the safety integrity of the system may be reduced during the modification.
  • Before modifying the I/O configuration and performing updates while the controller is connected, set up alternative safety measures lasting the duration of the update.
  • Performing an update on a Safety Implemented System is the responsibility of the user. The running application may stop if modifications are performed incorrectly.
When modifying properties of controllers, perform a download for the changes to take effect. Also, the initial values of variables are applied upon starting controllers. Updates do not start controllers. An update is split into the three phases:
  • Downloads the update to the required controllers
  • Confirms the download is error free and verifies if the controller will accept the update
  • Realizes the update
During an update, all bindings are closed and all consumed variables go to their defined
Update behavior
states. The controller updates and then attempts to re-establish the bindings. If the amount of time between closing and re-establishing the bindings exceeds the binding
Update Timeout
value, the consumed variables transition from their
Update behavior
values to their
Error behavior
values.
TIP: If
AADvance-Trusted SIS Workstation software
is unable to connect to the
AADvance Control System
controller, cancel the update in progress and then retry the operation.
For all
AADvance-Trusted SIS Workstation software
versions, the update limitations are:
  • Declared or user-defined arrays and structures cannot be modified. Declared arrays and structures are defined as data types.
  • Modifications to controller properties are not applied after an update.
Tasks available for the latest
AADvance-Trusted SIS Workstation software
version when performing updates are:
Bindings
Adding, deleting, and editing.
Creating and deleting bindings between variables.
Changing the consume status variable and consumption behavior of a binding. Changing the producing variable, consuming variable, or network for a binding creates a new one.
Adjusting the update timeout period in the network parameters. The update timeout period is the maximum time during which the consumer can remain in the update state.
Internal variables
Adding, deleting, and editing internal variables.
When renaming or changing the data type of internal variables, the
AADvance-Trusted SIS Workstation software
creates new variables. Therefore, variables are initialized.
Changing the alias, initial value, group, scope, direction, retain setting, address, and comment of variables. When changing the initial value of a read-only internal value, the
AADvance-Trusted SIS Workstation software
reinitializes the variable. When changing the scope of a variable, the
AADvance-Trusted SIS Workstation software
reinitializes the variable.
Modifying the length of string variables. When decreasing the length, the contents of the string is truncated to the new length.
Switching a variable attribute between the input and output attribute. Variable cannot be switched between the internal and input/output attribute.
Adding and removing elements in arrays for internal variables. For multi-dimensional arrays, only add elements to the first dimension. The
AADvance-Trusted SIS Workstation software
initializes these new elements. Adding elements to other dimensions causes the
AADvance-Trusted SIS Workstation software
to initialize a new array.
Renaming, adding variables to, removing variables from the group to which a variable belongs or moving the variable to another group.
Programs
Adding, deleting, renaming, and reordering (for execution within the programs section) programs. When renaming programs, the
AADvance-Trusted SIS Workstation software
detects a CRC mismatch and updates the code on the target for the program and reinitializes all local variables. When renaming SFC programs, instance data and local variables are not preserved. Elements are reset to their initial state.
When planning to add programs (other than SFC) by updating, allocate a sufficient number of maximum extra program organization units (POUs).
When planning to add SFC programs by updating, allocate sufficient memory space for SFC programs.
Adding, deleting, renaming steps and transitions and modifying the initial step or the flow between elements. When modifying SFC programs, instance data and local variables are preserved. Elements are not reset to their initial state.
Adding, deleting, and moving action blocks within steps of SFC programs. Action blocks within steps are executed in the order of appearance. Also change the qualifier of an action block.
Functions and Function Blocks
Adding, deleting, and moving function blocks. Adding and deleting function block instances.
Renaming and modifying user-defined functions and function blocks.
Adding, removing, and modifying the parameters of user-defined functions and function blocks. When modifying the parameters, instance data is not preserved. Recompile modified functions and function blocks called by other POUs and the calling POUs.
I/O Channels
Changing the wired variable.
For analog I/O channels, modifying the raw and engineering values to configure the gain and offset settings.
For input channels, modifying the threshold values.
I/O Modules
Tasks to perform when the
Update I/O Device Online
controller property is set to
True
:
  • Adding, deleting, and modifying I/O modules
  • Changing the wired variable.
  • For input modules, modifying the threshold values.
    After an update, the module is configured but not connected. Press
    Fault Reset
    on the AADvance controller or perform a remote fault reset from
    AADvance-Trusted SIS Workstation software
    to connect the I/O module to the running system. The faults disappear and the connection is successful.
I/O Variables
Adding, deleting, and modifying I/O variables.
Wiring, unwiring, and swapping I/O variables whose data type (scalar type for arrays), length (string variables), dimension (arrays), and address remains unchanged. For these I/O variables, modify the direction (input or output only), scope, attribute (read, write, or read/write), retain flag, alias, and comment. When modifying the direction, I/O variables cannot change to or from the internal type. Modifying the Equipment View causes the values of new and removed output I/O variables to be reinitialized.
Modifying the group and bindings in which I/O variables are defined.
cam_pu

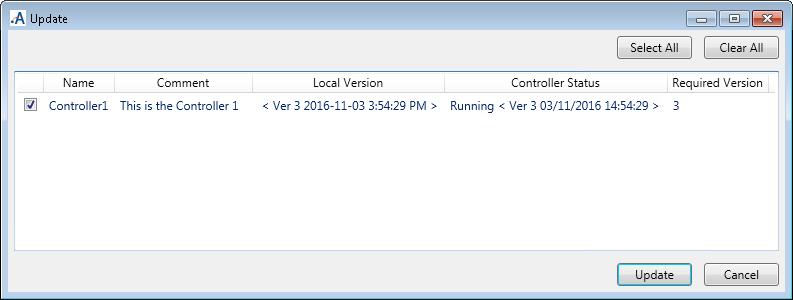

The
Update
window contains the following columns:
Name
The name of the controller
Comment
Free-format text
Local Version
The latest build version.
Controller Status
The status of the AADvance controller. Possible values are Running, Stopped, Unable to connect, or Unrecognized application.
This column also displays the current version of the application running on the AADvance controller. The Controller Status version must match the Required Version.
Required Version
The version of the application downloaded or updated on the AADvance controller.
If
Download Required
displays in the
Required Version
column, cancel the update and perform a download operation.
TIP: Updates are unavailable after getting a previous version from the repository; perform a download operation.
To perform an update
Perform an update after building a project. Updates are unavailable after cleaning a project.
  1. Make sure that the memory size properties for the required controllers indicate sufficient memory space.
  2. Verify the program enable key is plugged into the key connector on the 9100 processor base unit.
  3. From the
    Application View
    , right-click the project or controller for which to perform the update, and then click
    Update
    .
  4. In the
    Update
    window, select the controller or controllers to update, and then click
    Update
    .
