Communication View

To access the Communication View
From the View menu, click
Communication View
.

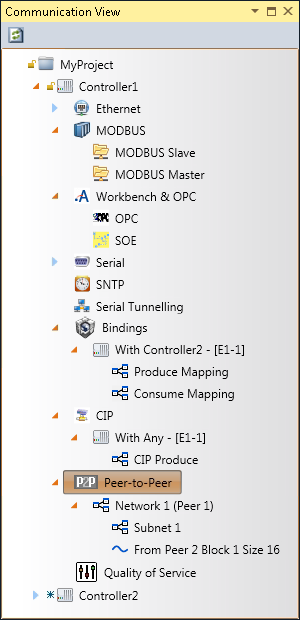

The
Communication View
 is a graphical environment that displays aspects of communication information related to communication events. The
Communication View
 displays a tree-like structure with nodes that expand to show the available communication functions and configurations for the series 9000 equipment.
From the
Communication View
, use these protocols with Ethernet networks and serial ports:
  • Modbus RTU/TCP
  • OPC
  • SOE
  • SNTP
  • Serial Tunneling using TCP/IP
  • SNCP bindings
  • CIP
  • Peer-to-Peer
  • Quality of Service
In the
Communication View
, select tree nodes to access related communication options for the equipment series. These options display in the property pages. When working in the
Communication View
, use the mouse controls or keyboard arrows to navigate. View additional properties for selected elements in the Properties window.
cmv_cmv
To refresh the Communication View
Refresh the Communication View to display the current version control and debug states.
  • Select the
    Communication View
    , then from the
    View
    menu, click
    Refresh
    .
