Application View

To access the Application View
From the
View
 menu, click
Application View
.
Use the
Application View
 to display a graphical view of projects in a logically organized tree view. For
Trusted®
applications, projects include one device, programs, functions, function blocks, global variables, defined words, and libraries. For AADvance applications, projects include controllers, programs, functions, function blocks, controller variables, global data types, and libraries. The physical locations of project files can differ from the representation in the tree view structure.

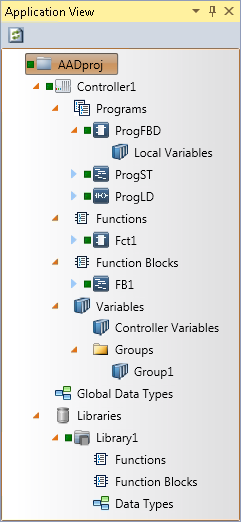

AADvance Tree View

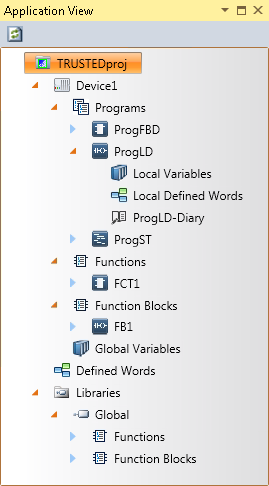

Trusted Tree View
apv_uit
From the
Application View
, perform many tasks for AADvance applications:
  • Adding controllers, programs, functions, and function blocks
  • Adding new libraries, published libraries, and existing libraries
  • Setting properties of projects, controllers, programs, functions, and function blocks
  • Setting passwords for projects, controllers, targets, and programs
  • Building projects, controllers, programs, functions, and function blocks
  • Verifying syntax for programs, functions, and function blocks
  • Cleaning projects and controllers
  • Downloading and updating projects and controllers
  • Connecting controllers
  • Copying, pasting, deleting, and renaming controllers
  • Cutting, copying, pasting, deleting, and renaming programs, functions, and function blocks
  • Opening, defining, importing, and exporting variables
  • Opening and defining global data types
  • Importing target definitions
  • Accessing version control operations for projects, controllers, programs, functions, and function blocks
  • Creating variable groups
    IMPORTANT: Avoid using names with more than 32 characters in the
    Application View
    .
From the
Application View
, perform many tasks for
Trusted
 applications:
  • Adding programs, functions, and function blocks
  • Importing libraries
  • Setting properties of projects, devices, programs, functions, and function blocks
  • Setting passwords for projects
  • Building projects, devices, programs, functions, and function blocks
  • Verifying syntax for programs, functions, and function blocks
  • Cleaning projects, devices, programs, functions, and function blocks
  • Downloading and updating projects and devices
  • Connecting devices
  • Renaming devices
  • Cutting, copying, pasting, deleting, and renaming programs, functions and function blocks
  • Opening, defining, importing, and exporting variables
  • Opening and defining defined words
  • Opening and modifying the Diary text file for programs, functions, and function blocks
    Task
    Procedure
    Drag and drop elements to change position in tree structure
    In the
    Application View
    , drag the required element to the new position within the same section.
    Refresh the content displayed in the Application view
    Select the
    Application View
    , then from the
    View
    menu, click
    Refresh
    .
TIP: For Sequential Function Chart (SFC) program organization units (POUs), move an SFC main program, to a different position in the tree structure. When moving an SFC POU with children, children follow their parent. Also move a child SFC POU to a different main SFC POU or to a different hierarchy level. You can only drag child SFC POUs to hierarchical levels already containing an SFC child.
