Counter View

Counter is available only if you choose HSC for the Encoder Type parameter in the Device Definition dialog.
Counter shows a summary of the module counter configuration

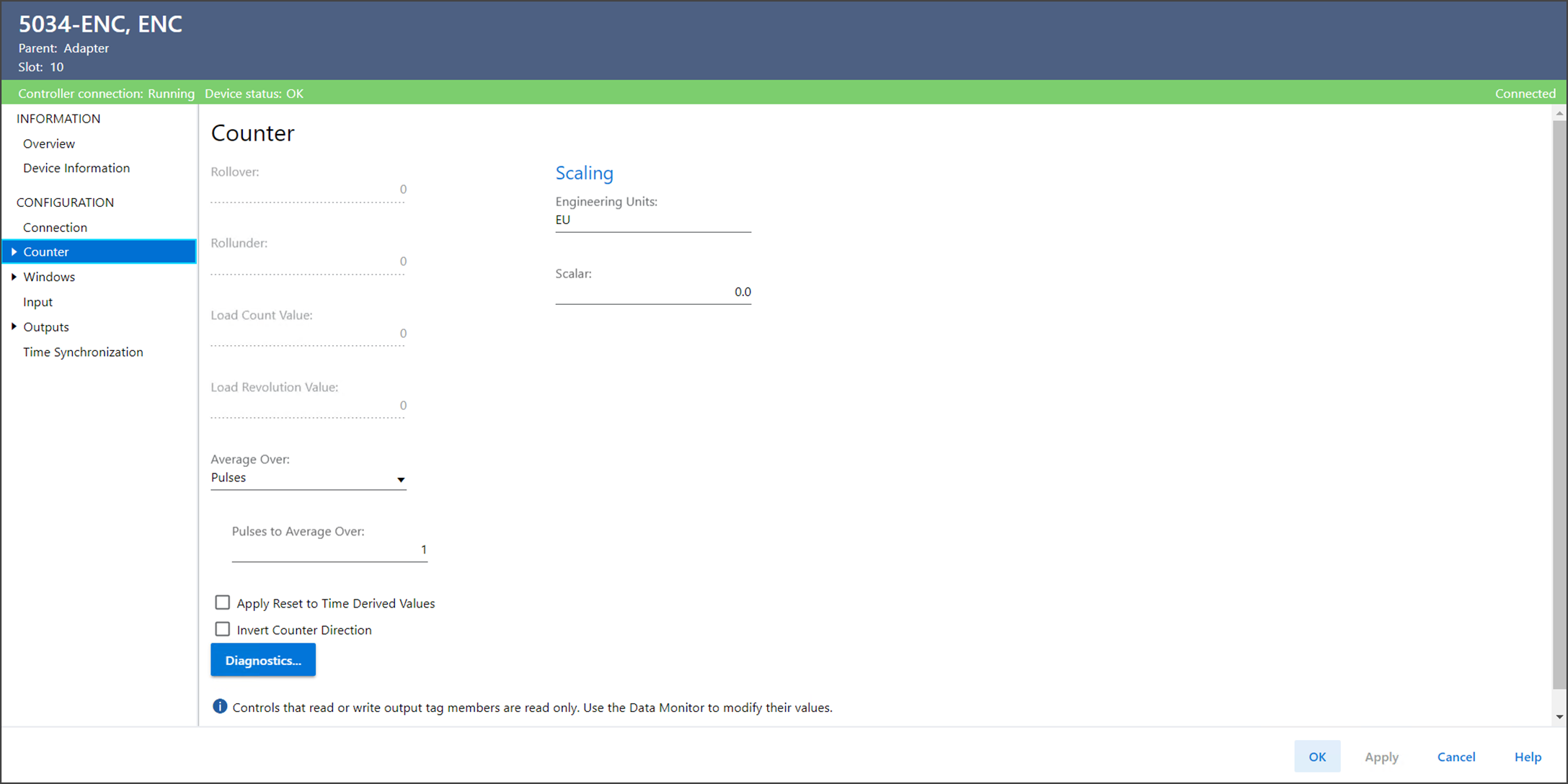

Counter View Example
The Counter view includes these parameters:
Parameter
Description
Rollover
Displays the value of the RolloverValue output tag.
If a counter is counting up, when the counter value reaches the Rollover value - 1, it rolls over to the Rollunder value upon receiving the next count. The rollover tag is set to 1.
Rollunder
Displays the value of the RollunderValue output tag.
If a counter in counting down, when the count reaches the Rollunder value, it rolls under to the Rollover value - 1 value upon receiving the next count. The rollunder tag is set to 1.
Load Count Value
Displays the preset number of counts to load into the counter when the Load function is triggered.
Load Revolution Value
Displays the preset number of revolutions to load into the counter when the Load function is triggered.
Average Over
Defines whether to average based on the number of pulses or over a period of time when calculating average frequency, pulse width, and acceleration.
  • Pulses – Average based on the number of pulses
  • Time – Average based over a period of time
Pulses to Average Over
Defines the number of pulses to average over.
This setting is only available when Counter Average Over is set to Pulses.
Time to Average Over
Defines the duration in milliseconds to average over.
This setting is only available when Counter Average Over is set to Time.
Apply Reset to Time Derived Values
Specifies whether to reset the time derived values when the counter is reset.
  • Cleared – Do not reset the time derived values
  • Selected – Reset the time derived values
Invert Counter Direction
Specificies whether to invert the direction of the counter.
  • Cleared – Do not invert the counter direction
  • Selected – Invert the counter direction
Engineering Units
Defines the engineering unit that the Count, Frequency, and Acceleration values in pulses are scaled to.
For example, if the engineering unit is "abc", the units of the scaled input tags are as follows:
  • ScaledCount: abc
  • ScaledFrequency: abc/s
  • ScaledAccel: abc/s
    2
Scalar
Defines the value that is used to multiply Count, Frequency, and Acceleration values in pulses to achieve the scaled values in engineering units.
Diagnostics
Opens the Diagnostics dialog, which contains diagnostic information.

Counter Diagnostics

To view the Counter diagnostics, select Diagnostics in the Counter view.
Counter Diagnostics Example
