Solução de Transportes de Carros Independentes através do FT View ME

Solução baseada em iTRAK®, Logix e FT View ME para controle, sincronização e visualização de sistemas de transporte com carros independentes. - [Tempo de implementação: 45 minutos]
Innovation Center Home Page
ft-view-me-independent-car-transport-solution 1.jpg
Innovation Center LOGO
Innovation Center Home Page

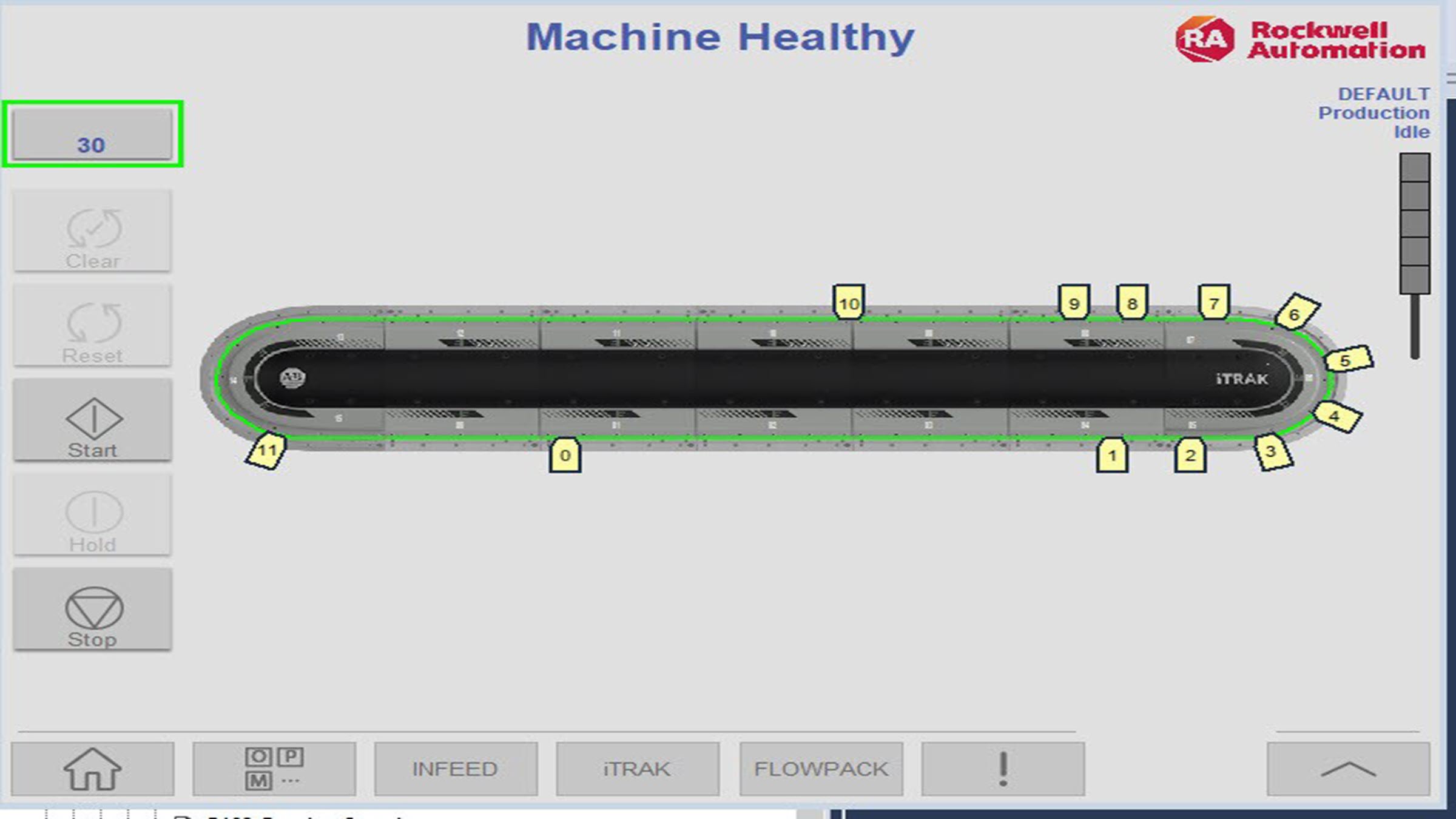

O que esta aplicação faz?

Esta aplicação demonstra uma solução integrada para movimentação de carros independentes, utilizando iTRAK, controle Logix e visualização com FactoryTalk View ME. Permite simular e validar arquiteturas de alta performance, com flexibilidade, sincronismo e precisão no transporte. Serve como referência prática para clientes entenderem ganhos de produtividade, escalabilidade e redução de mecânica tradicional. Acelera o desenvolvimento de projetos reais por meio de um ambiente pronto para testes, aprendizado e replicação.

Características Gerais

Aplicação que demonstra o controle e a sincronização de carros independentes com iTRAK, utilizando Logix e visualização no FactoryTalk View ME para operação e diagnóstico. Permite validar arquiteturas flexíveis e escaláveis, evidenciando ganhos de produtividade e redução de complexidade mecânica em sistemas de transporte industrial.

Vantagens

  • Alta flexibilidade operacional, permitindo alterações rápidas no layout e nas rotas dos carros sem mudanças mecânicas.
  • Maior produtividade e throughput devido ao controle preciso e sincronizado dos movimentos.
  • Redução de custos de manutenção com menor uso de componentes mecânicos tradicionais.
  • Escalabilidade e integração simplificada com o ecossistema Rockwell (Logix e Ethernet/IP).


Limitações e Desvantagens

  • Softwares atualizados nas últimas versões
  • Plataforma de Controle LOGIX com necessidade de MOTION
AHIC Download ICON VF.png

Downloads

Importante: Será necessário aceitar os Termos e Condições para cada download.

Arquivos para download ›
Legal Disclaimer Acceptance. ROCKWELL AUTOMATION WILL PROVIDE ACCESS TO ROCKWELL PRODUCTS (BEST PRACTICES, APPLICATIONS AND KNOWLEDGE) ON THE CONDITION THAT YOU ACCEPT AND COMPLY WITH THE FOLLOWING TERMS AND CONDITIONS. YOU ACCEPT AND AGREE TO BE BOUND BY THE TERMS OF THIS AGREEMENT BY DOWNLOADING, INSTALLING, COPYING, OR OTHERWISE USING PRODUCTS. IF YOU ARE ACCEPTING THESE TERMS ON BEHALF OF ANOTHER PERSON, COMPANY, OR OTHER LEGAL ENTITY, YOU REPRESENT AND WARRANT THAT YOU HAVE FULL AUTHORITY TO BIND THAT PERSON, COMPANY, OR LEGAL ENTITY TO THESE TERMS. IF YOU DO NOT AGREE TO THESE TERMS, DO NOT DOWNLOAD, INSTALL, COPY, ACCESS, OR USE THE PRODUCTS, SOFTWARE AND/OR CLOUD SERVICES. 1. Rockwell Automation retains full ownership and title to all Products and related documentation. No rights or licenses are granted other than those set forth in this Agreement. Company grants to Rockwell Automation a non-exclusive, worldwide, royalty-free, perpetual, non-revocable license to use any feedback Company provides regarding the Products, even if Company has designated the feedback as confidential. Rockwell Automation will be entitled to use the feedback without restriction or compensation to Company. 2. Company may not lease sub-lease, assign, license, sub-license or otherwise transfer any of the Products without the prior written consent of Rockwell Automation. Company may not assign or otherwise transfer access rights to the Products without the prior written consent of Rockwell Automation. Any reverse assembly, reverse engineering, decompilation, and creation of derivative works based on the Products by Company is prohibited. 3. Company acknowledges that Products provided under this Agreement are Rockwell Automation’s Confidential Information and are covered by effective or pending copyrights, patents, trademarks and/or trade secrets of Rockwell Automation, and Company agrees to maintain confidentiality by not disclosing Products or documentation to any third party without the prior written consent of Rockwell Automation and to protect the confidentiality of the Products as it would Company’s own confidential information. Company agrees that its obligation of confidentiality under this paragraph shall survive expiration or termination of this Agreement. 4. Company agrees that Products provided under this Agreement are prototypes and examples and its application and results may vary depending on each customer and project conditions. Rockwell Automation do not warranty the same results. This Agreement shall in no way be construed as a commitment by Rockwell Automation at any time to manufacture and/or offer Products for sale. There is no explicit or implicit service level agreement associated with using the Products. Rockwell Automation does not warrant that the functions contained in the Products will meet Company’s requirements. Company agrees to use all Products only in accordance with the instructions and only for the intended usages identified in the documentation. 5. EXCLUSION OF WARRANTIES AND LIMITATION OF LIABILITY. THE PRODUCTS ARE PROVIDED "AS IS". ROCKWELL AUTOMATION DISCLAIMS ANY AND ALL WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, INCLUDING WITHOUT LIMITATION ANY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ROCKWELL AUTOMATION EXPLICITLY DISCLAIMS ALL WARRANTIES OF NON- INFRINGEMENT AND EXPRESSLY DOES NOT WARRANT THAT THE PRODUCTS, IN WHOLE OR IN PART, WILL BE ERROR FREE OR FREE FROM SECURITY VULNERABILITIES. IN NO EVENT SHALL ROCKWELL AUTOMATION BE LIABLE FOR (i) LOST PROFITS, LOST SAVINGS, DOWNTIME, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR (ii) ANY PERSONAL INJURY, PROPERTY DAMAGE OR ENVIRONMENTAL DAMAGE ARISING OUT OF OR IN CONNECTION WITH THIS AGREEMENT, WHETHER IN AN ACTION IN CONTRACT, STRICT LIABILITY OR IN TORT INCLUDING NEGLIGENCE. 6. COMPANY AGREES TO INDEMNIFY AND HOLD ROCKWELL AUTOMATION HARMLESS FROM ALL COSTS, AWARDS, DAMAGES, EXPENSES AND FEES (INCLUDING ATTORNEYS FEES) RESULTING FROM OR RELATED TO ANY THIRD-PARTY CLAIMS (INCLUDING EMPLOYEES AND AGENTS OF COMPANY) AGAINST ROCKWELL AUTOMATION, ITS DISTRIBUTORS, AGENTS, OFFICERS, DIRECTORS OR EMPLOYEES FOR PERSONAL INJURY (INCLUDING DEATH), PROPERTY DAMAGE OR ENVIRONMENTAL DAMAGE RELATED TO OR RESULTING FROM THE USE OF THE PRODUCTS. 7. In the event a Product is exported, Company agrees to comply with all applicable United States Export Control Law and Regulations, and the applicable export control laws of other countries. This Agreement shall be governed by the laws of the state of Wisconsin. This Agreement is the complete and exclusive Agreement between Rockwell Automation and the Company, and supersedes all prior agreements, whether written or oral, relating to the Products.
AHIC NEED HELP ICON VF.png

Precisa de ajuda?

Se você precisar de ajuda com uma inscrição ou tiver um feedback do centro de inovação, escreva para nós.



Esta aplicação é relevante para mim?

Esta aplicação é útil para demonstrar, de forma prática e reutilizável, o valor do iTRAK com Logix e FT View ME em cenários reais, apoiando discussões técnicas e comerciais com clientes. Além disso, acelera a prototipação e padronização de soluções, reduzindo esforço de engenharia e fortalecendo iniciativas



Como posso fazer funcionar?

Requisitos: produtos, ferramentas, conhecimento prévio.

Hardware:

  • Notebook
  • Controlador Logix (CompactLogix / ControlLogix)
  • Sistema iTRAK (módulos físicos)

Software:

  • Studio 5000
  • FactoryTalk View ME




AHIC STEP ICON.png

Guia de Implementação


Open All Close All
Passo 1

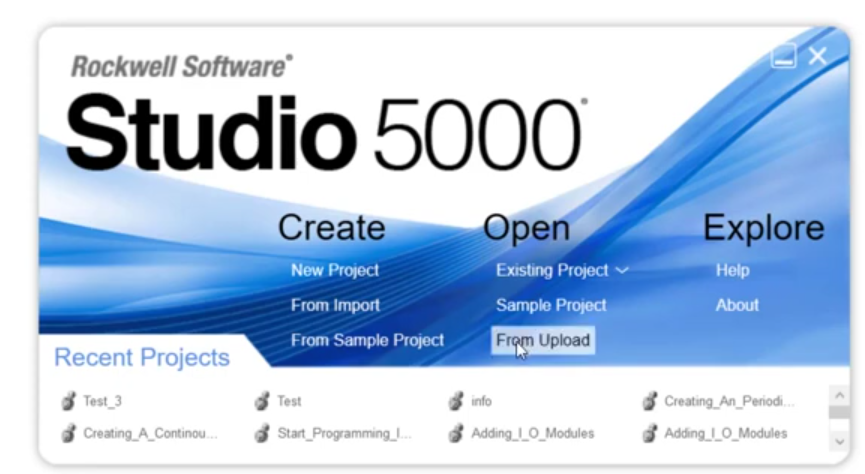

Você precisa abrir o Software Studio 5000 e realizar o Upload do arquivo "Itrak_V10.acd" contido na pasta.


ft-view-me-independent-car-transport-solution 2.png

ft-view-me-independent-car-transport-solution 2.png



ft-view-me-independent-car-transport-solution 3.png

ft-view-me-independent-car-transport-solution 3.png

Passo 2

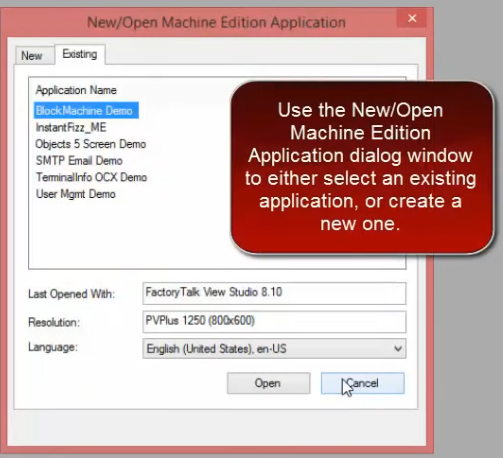

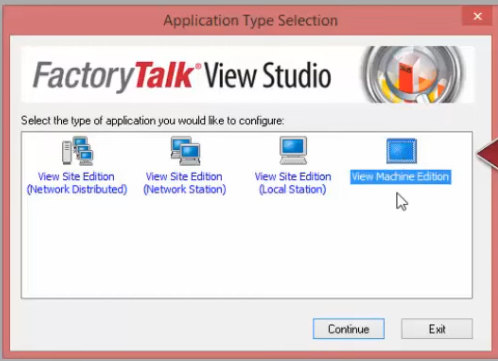

Você precisa abrir o Software FT View ME e realizar o Upload através da área de “Open” do arquivo "Itrak_Inovation", conforme abaixo:


ft-view-me-independent-car-transport-solution 4.png

ft-view-me-independent-car-transport-solution 4.png


ft-view-me-independent-car-transport-solution 5.png

ft-view-me-independent-car-transport-solution 5.png

ft-view-me-independent-car-transport-solution 6.png

ft-view-me-independent-car-transport-solution 6.png

ft-view-me-independent-car-transport-solution 6.png

Passo 3


Você precisa conectar as aplicações conforme os Manuais do Studio 5000 e o FT View ME, até obter a aplicação conforme abaixo:

ft-view-me-independent-car-transport-solution 7.jpg

ft-view-me-independent-car-transport-solution 7.jpg


ft-view-me-independent-car-transport-solution 2.png

ft-view-me-independent-car-transport-solution 2.jpg
ft-view-me-independent-car-transport-solution 3.png

ft-view-me-independent-car-transport-solution 3.jpg
ft-view-me-independent-car-transport-solution 4.png

ft-view-me-independent-car-transport-solution 4.jpg
ft-view-me-independent-car-transport-solution 5.png

ft-view-me-independent-car-transport-solution 5.jpg
ft-view-me-independent-car-transport-solution 6.png

ft-view-me-independent-car-transport-solution 6.jpg
ft-view-me-independent-car-transport-solution 7.jpg

ft-view-me-independent-car-transport-solution 7.jpg



Solução de Transportes de Carros Independentes através do FT View ME
