5069-AEN2TR

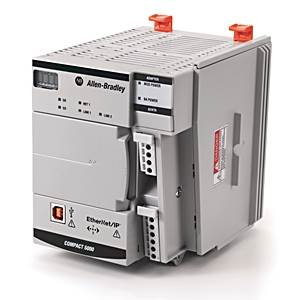

Compact 5000 EtherNet/IP Adapter

Name: Compact 5000 EtherNet/IP Adapter
Brand: Rockwell Automation
SKU: 5069-AEN2TR

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of August 26, 2021, the Compact 5000 EtherNet/IP Adapter will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: August 26, 2021 Replacement Category: Engineering Replacement Replacement Product: 5069-AENTR [https://www.rockwellautomation.com/en-us/products/details.5069-AENTR.html]

Product at a glance

Replacement Available

Repairable/Replaceable Repairable/Replaceable

Product Registration

Lifecycle status: Discontinued

Discontinued Date: August 26, 2021 Replacement Category: Engineering Replacement Replacement Product: 5069-AENTR [https://www.rockwellautomation.com/en-us/products/details.5069-AENTR.html]

Product at a glance

Replacement Available

Repairable/Replaceable Repairable/Replaceable

Product Registration

Description

5069 Compact I/O EtherNet/IP Adapter

Unique Product Identifier	5069-AEN2TR
UPC	887172899713
Estimated Lead Time	61 days
Standard Warranty Duration	1 year See details
Country of Origin	Singapore

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Depth	137mm, 5.39"
Height	138mm, 5.43"
Isolation	300V(cont);No isolation

Number of HW-interfaces industrial Ethernet	1
With optical interface	False
Supporting protocol for TCP/IP	False
Supporting protocol for DeviceNet	False
Supporting protocol for other bus systems	False
Redundancy	False
IO link master	False
Supporting protocol for DeviceNet Safety	False
Supporting protocol for EtherNet/IP	True
Type of data transmission	Module rack extension
Thermal dissipation, max	29 btu/h
Power dissipation, max	8.5 W
Enclosure type rating	None (open-style)
MOD Power inrush	850 mA for 125 ms
MOD power	450mA @ 18...32V DC
Module keying	Electronic keying via progming software
RTB torque	5069-RTB4-SCREW and 5069-RTB6-SCREW only: 0.4 Nm (3.5 in-lb)
Wiring category	3 - on USB ports, 2 - on power ports, 2 - on Ethernet ports
SA power	10mA @ 0...32V DC, 25mA @ 0...240V AC, 47...63 Hz, ATEX/IECEx, 125V AC maximum
MOD power passthrough, max	9.55A @ 18...32V DC, Maximum level of MOD Power current that the adapter can pass through to the next module in the system
Insulation stripping length	5069-RTB4-SPRING, 5069-RTB6-SPRING connections: 10 mm (0.39 in.), 5069-RTB4-SCREW, 5069-RTB6-SCREW connections: 12 mm (0.47 in.)
SA power passthrough, max	9.95A @ 0...32V DC, 9.975A @ 0...240V AC, 47...63 Hz, ATEX/IECEx, 125V AC maximum, Maximum level of SA power current that the adapter can pass through to the next module in the system
Wire size	5069-RTB4-SPRING, 5069-RTB6-SPRING: 0.5...1.5 mm² (22...16 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 2.9 mm (0.11 in.) maximum diam including insulation, single wire connection only, 5069-RTB4-SCREW, 5069-RTB6-SCREW: 0.5
Isolation voltage	250V (continuous), basic insulation type, SA, and MOD power to backplane, 250V (continuous), basic insulation type, SA to MOD power, 250V (continuous), basic insulation type, Ethernet to backplane, 250V (continuous), double insulation type, Ethernet to MO
Supporting protocol for LON	False
Supporting protocol for ASI	False
Supporting protocol for PROFIBUS	False
Supporting protocol for CAN	False
Supporting protocol for INTERBUS	False
Supporting protocol for KNX	False
Supporting protocol for Modbus	False
Supporting protocol for Data-Highway	False
Supporting protocol for SUCONET	False
With potential separation	False
Supporting protocol for SERCOS	False
Supporting protocol for INTERBUS-Safety	False
Supporting protocol for AS-Interface Safety at Work	False
Supporting protocol for Foundation Fieldbus	False
Supporting protocol for PROFINET CBA	False
Supporting protocol for PROFINET IO	False
Supporting protocol for PROFIsafe	False
Supporting protocol for SafetyBUS p	False
ATEX temp code	T4
RTB keying	None

Surrounding air temperature, max	60 °C
Emissions	IEC 61000-6-4
Vibration	5 G @ 10...500 Hz
ESD immunity	6 kV contact discharges, 8 kV air discharges
EFT/B immunity	±4kV @ 5kHz on power ports, ±2kV @ 5kHz on Ethernet ports
Relative humidity	5...95% noncondensing
Shock	Operating: 30 G, Non operating: 50 G
Conducted RF immunity	10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz on power and Ethernet ports
Surge transient immunity	±1kV line-line (DM) and ±2kV line-earth (CM) on power ports, ±2kV line-earth (CM) on Ethernet ports
Operating temperature	0 to 60 °C
Radiated RF immunity	10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
Nonoperating temperature	-40 °C
Voltage variation	10 ms interruption on MOD power port

Width	98 mm
Height	138 mm
Depth	137 mm

Drawings
2-Dimensional Drawing (PDF)	Download (PDF)
3-Dimensional STEP model (STP)	Download (ZIP)
Dimensional Drawing in 3D (PDF)	Download (PDF)
Product Drawing	Drawing (DXF)

Drawings
2-Dimensional Drawing (PDF) Download (PDF)
3-Dimensional STEP model (STP) Download (ZIP)
Dimensional Drawing in 3D (PDF) Download (PDF)
Product Drawing Drawing (DXF)

General	Publication
Product Cutsheet	--
User Manual	ENET-UM004

Technical Data	Publication
5069-td001_-en-p	5069-TD001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Visit the Technical Documentation Center Search the Literature Library

This product was certified with the above certifications as of 2025-11-24. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Looking for certification documents?
Explore certifications for this product and more in our comprehensive Literature Library.

Search the Literature Library

Regulatory Information

EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	5069-AEN2TR
UPC	887172899713
Estimated Lead Time	61 days
Standard Warranty Duration	1 year See details
Country of Origin	Singapore

Electrical & Connectivity

Depth	137mm, 5.39"
Height	138mm, 5.43"
Isolation	300V(cont);No isolation

Number of HW-interfaces industrial Ethernet	1
With optical interface	False
Supporting protocol for TCP/IP	False
Supporting protocol for DeviceNet	False
Supporting protocol for other bus systems	False
Redundancy	False
IO link master	False
Supporting protocol for DeviceNet Safety	False
Supporting protocol for EtherNet/IP	True
Type of data transmission	Module rack extension
Thermal dissipation, max	29 btu/h
Power dissipation, max	8.5 W
Enclosure type rating	None (open-style)
MOD Power inrush	850 mA for 125 ms
MOD power	450mA @ 18...32V DC
Module keying	Electronic keying via progming software
RTB torque	5069-RTB4-SCREW and 5069-RTB6-SCREW only: 0.4 Nm (3.5 in-lb)
Wiring category	3 - on USB ports, 2 - on power ports, 2 - on Ethernet ports
SA power	10mA @ 0...32V DC, 25mA @ 0...240V AC, 47...63 Hz, ATEX/IECEx, 125V AC maximum
MOD power passthrough, max	9.55A @ 18...32V DC, Maximum level of MOD Power current that the adapter can pass through to the next module in the system
Insulation stripping length	5069-RTB4-SPRING, 5069-RTB6-SPRING connections: 10 mm (0.39 in.), 5069-RTB4-SCREW, 5069-RTB6-SCREW connections: 12 mm (0.47 in.)
SA power passthrough, max	9.95A @ 0...32V DC, 9.975A @ 0...240V AC, 47...63 Hz, ATEX/IECEx, 125V AC maximum, Maximum level of SA power current that the adapter can pass through to the next module in the system
Wire size	5069-RTB4-SPRING, 5069-RTB6-SPRING: 0.5...1.5 mm² (22...16 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 2.9 mm (0.11 in.) maximum diam including insulation, single wire connection only, 5069-RTB4-SCREW, 5069-RTB6-SCREW: 0.5
Isolation voltage	250V (continuous), basic insulation type, SA, and MOD power to backplane, 250V (continuous), basic insulation type, SA to MOD power, 250V (continuous), basic insulation type, Ethernet to backplane, 250V (continuous), double insulation type, Ethernet to MO
Supporting protocol for LON	False
Supporting protocol for ASI	False
Supporting protocol for PROFIBUS	False
Supporting protocol for CAN	False
Supporting protocol for INTERBUS	False
Supporting protocol for KNX	False
Supporting protocol for Modbus	False
Supporting protocol for Data-Highway	False
Supporting protocol for SUCONET	False
With potential separation	False
Supporting protocol for SERCOS	False
Supporting protocol for INTERBUS-Safety	False
Supporting protocol for AS-Interface Safety at Work	False
Supporting protocol for Foundation Fieldbus	False
Supporting protocol for PROFINET CBA	False
Supporting protocol for PROFINET IO	False
Supporting protocol for PROFIsafe	False
Supporting protocol for SafetyBUS p	False
ATEX temp code	T4
RTB keying	None

Compliance & Environment

Surrounding air temperature, max	60 °C
Emissions	IEC 61000-6-4
Vibration	5 G @ 10...500 Hz
ESD immunity	6 kV contact discharges, 8 kV air discharges
EFT/B immunity	±4kV @ 5kHz on power ports, ±2kV @ 5kHz on Ethernet ports
Relative humidity	5...95% noncondensing
Shock	Operating: 30 G, Non operating: 50 G
Conducted RF immunity	10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz on power and Ethernet ports
Surge transient immunity	±1kV line-line (DM) and ±2kV line-earth (CM) on power ports, ±2kV line-earth (CM) on Ethernet ports
Operating temperature	0 to 60 °C
Radiated RF immunity	10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
Nonoperating temperature	-40 °C
Voltage variation	10 ms interruption on MOD power port

Physical Characteristics

Width	98 mm
Height	138 mm
Depth	137 mm
