Add Work Center

After adding the Area, the user can add the Work Center.
NOTE:
The following points are required to view data on
Work Center level dashboard
:
  • Data from different meters which are directly connected to a Work center node will be considered for the data aggregation.
  • For consumption and demand charts, the respective resource meter has to be configured with the proper tag mapping.
  • For Cost charts, the respective rate schedule should be configured at the Site level.
  • For Emission, the respective emission factor should be configured at the Site level.
  • For Production and energy intensity charts should have correct tag mapping for production count measurement.
  • Harmonized units are defined at the Enterprise level and will be used to display harmonized consumption, intensity, or emissions data.
Perform the following steps to add a Work center under the Area:
  1. Select
    Area
     from the hierarchy list.
  2. Click the [] icon and click
    Add
    .

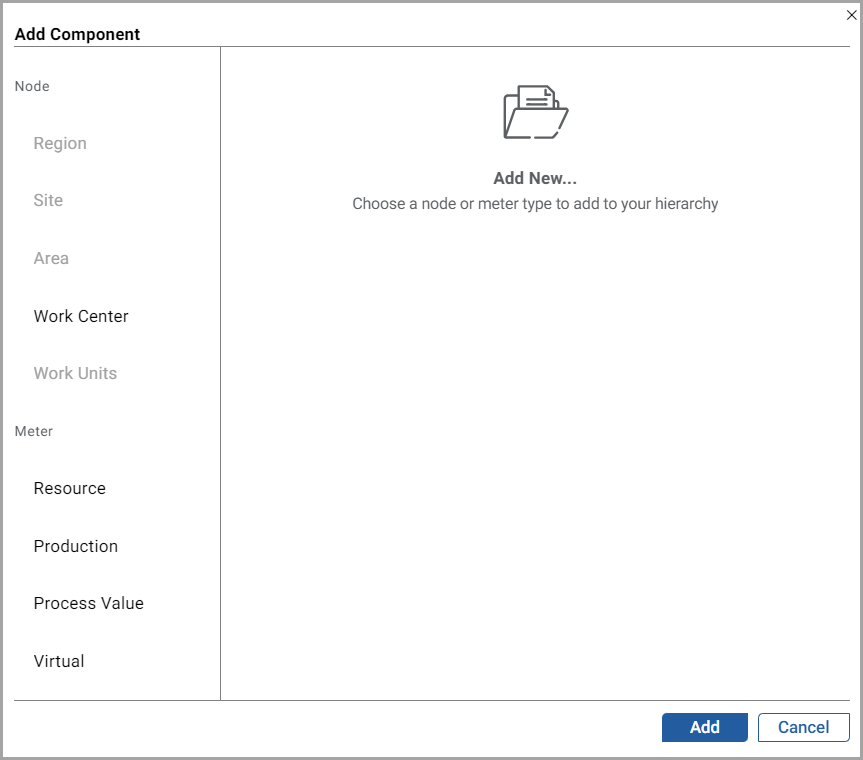

    The
    Add New Work Center Dialog
  3. Click
    Add
    .
    The
    Add Component
     dialog box is displayed.

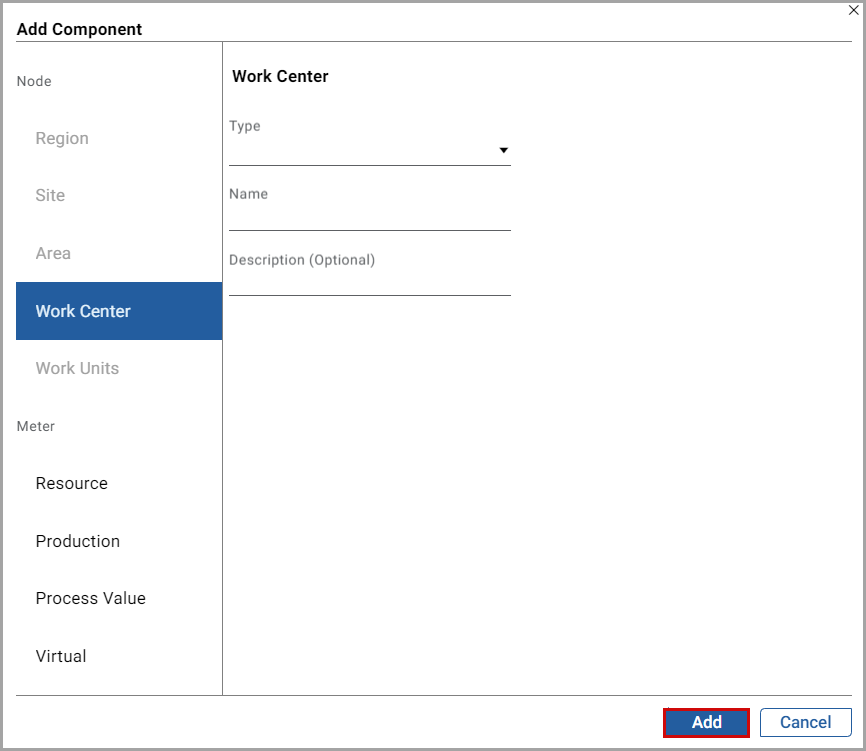

    Add Component- Work Center Dialog
  4. Under
    Node
     from the left pane, select
    Work center
     and set these parameters:
    • Type
      : Select a
      Work center
       type from the drop-down list.

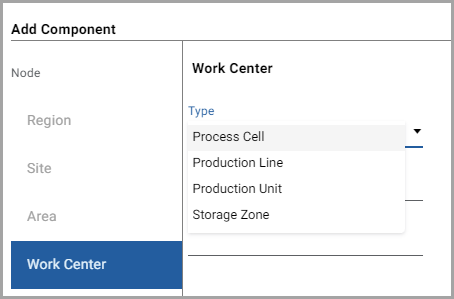

      Work Center Types
    • Name
      : Provide a Work center name.
    • Description
      : Provide a description of the Work Center.
  5. Click
    Add
    .
The "
Work center added under Area successfully
" message is displayed.
The user can also export the data file to local. For more details, see Export Data File
