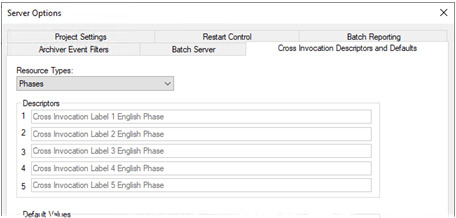

Cross Invocation Descriptors and Defaults tab

The

Cross Invocation Descriptors and Defaults

tab allows you to specify cross invocation labels and set default cross invocation strings for different resource types. Use

FactoryTalk Batch Equipment Editor

to define up to five cross invocation strings for each resource within the area model. Each time a selection changes in

FactoryTalk Batch View

and HMI Controls, the cross invocation strings associated with the equipment resource are retrieved from the

FactoryTalk Batch

Server and evaluated. The contents of these strings can indicate a shortcut menu item and subitems, the caption(s) for the shortcut menu item(s), and the data that is passed to the automation server.
