TON

Increase an internal timer up to a given value.
Arguments
IN
BOOL
If rising edge, starts increasing internal timer
If falling edge, stops and resets internal timer
PT
TIME
Maximum programmed time
Q
BOOL
If TRUE, programmed time is elapsed
ET
TIME
Current elapsed time. Possible values range from 0ms to 1193h2m47s294ms.

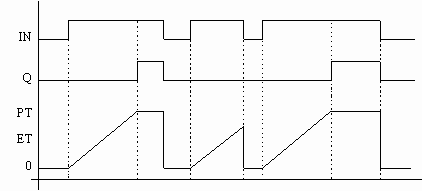

Timing diagram
