INTEGRAL

Integration of a real value.
lrsb_int1_aadvance
Arguments
RUN
BOOL
Mode: TRUE=integrate / FALSE=hold
R1
BOOL
Overriding reset
XIN
REAL
Input: any real value
X0
REAL
Initial value
CYCLE
TIME
Sampling period. Possible values range from 0ms to 23h59m59s999ms.
Q
BOOL
Not R1
XOUT
REAL
Integrated output
If the "CYCLE" parameter value is less than the cycle timing of the execution of the controller in the target, the sampling period is forced to this cycle timing.
Example

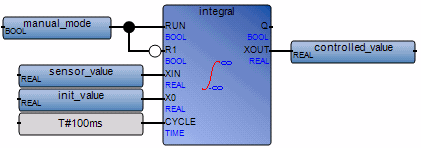

(* FBD Program using "INTEGRAL" Block: *)
lrsb_int2_aadvance
(* ST Equivalence: INTEGRAL1 instance of INTEGRAL block *)
INTEGRAL1(manual_mode, NOT(manual_mode), sensor_value, init_value, t#100ms); controlled_value := INTEGRAL1.XOUT;
