HYSTER

Hysteresis on a real value for a high limit.
Arguments
XIN1
REAL
Any real value
XIN2
REAL
To test if XIN1 has overpassed XIN2+EPS
EPS
REAL
Hysteresis value (must be greater than zero)
Q
BOOL
TRUE if XIN1 has overpassed XIN2+EPS and is not yet below XIN2-EPS

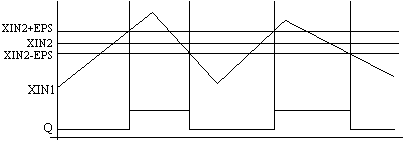

Example of a timing diagram
