Ethernet Communications

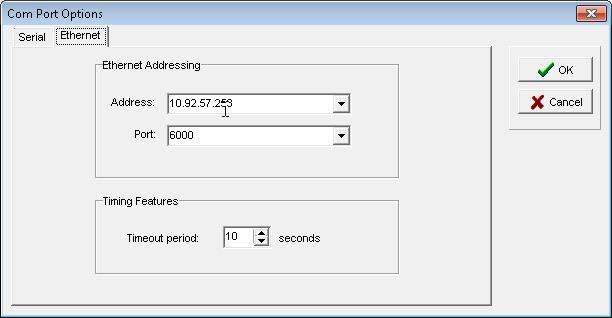

Configure Ethernet communications using the Ethernet
tab in the Com Port Options
dialog box. If the

Trusted®

System has previously been configured for Ethernet communications (using the SYSTEM.INI configuration) then further communications are made quicker by Ethernet. On the Ethernet
tab, enter the TCP/IP address assigned to the socket used on the communications module. Leave the port defined as 6000 unless changed in the SYSTEM.INI configuration.

Setting the Communications Port

Serial Communications
