System Templates

The System template enables configuring the following information:
  • No-Load Threshold
  • Inter-Modular Bus Timeout
  • Watchdog Timeout
  • Power Fail Timeout
  • Bypass Timeout
To configure the System Template
  1. From the
    Template Creation
     dialog box, enter the template name, select an applicable
    Module Type
    , then select the
    System Template Type
    , and then click
    Edit Template
    .
    sct_st

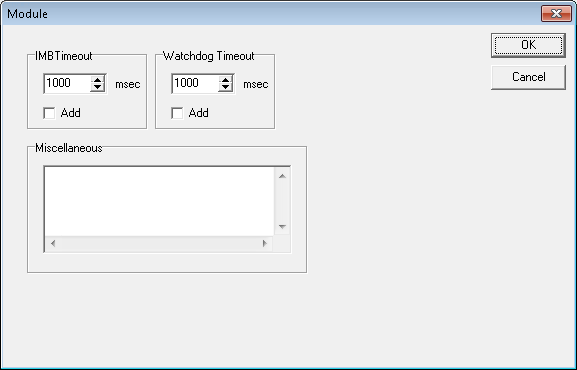

    The
    Module
     dialog box displays.
  2. In the
    Module
    dialog box, do the following:
    1. To add an
      IMB Timeout
      , enter the required value in milliseconds, and then select
      Add
      .
    2. To add a
      Watchdog Timeout
      , enter the required value in milliseconds, and then select
      Add
      .
    3. To add a no-load threshold, in the
      Miscellaneous
      section, enter the required value by using the following syntax:
      nlthresh = < group1 >, < group2 >,< group3 >,< group4 > [,< group5 >]
    4. To add a Power Fail timeout, in the
      Miscellaneous
      section, enter the required value by using the following syntax:
      PWRFAILTO = < value >
    5. To add a Bypass timeout, in the
      Miscellaneous
      section, enter the required value by using the following syntax:
      BYPASSTO = < value >
  3. To complete the configuration, click
    OK
    .
