Block Selector

To access the Block Selector
From the Toolbox, drag the block element into the language container.
Use the
Block Selector
to select operators, functions, and function blocks for use in block elements defined in programs. For Function Block Diagram (FBD) and Ladder Diagram (LD) programs, enter blocks and declared instances.
The
Block Selector
lists the available operators, functions, and function blocks for IEC 61131-3 programs. The available items are operators (OPE), standard functions (SFU), standard function blocks (SFB), user IEC 61131-3 Functions (IFU), user IEC 61131-3 Function Blocks (IFB) and all C Functions (CFU) and C Function Blocks (CFB) supported by the current target.

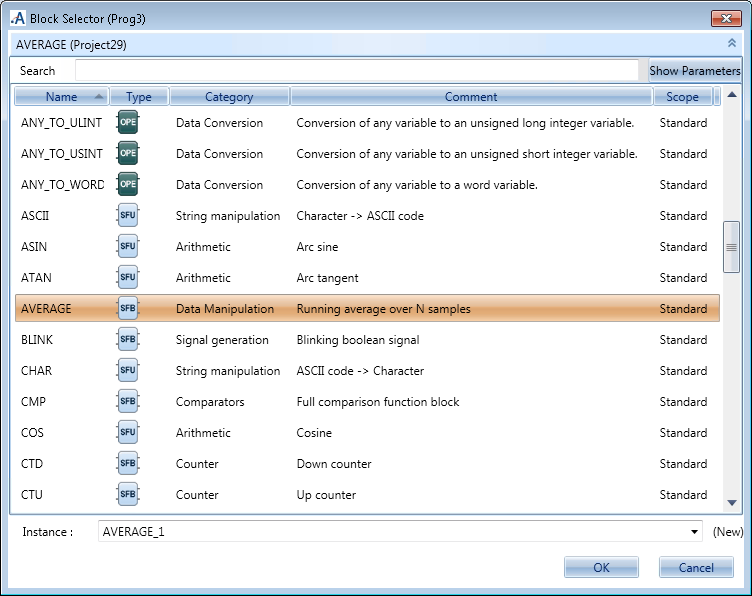

bks_ui1
For the block list, the properties are:
Property
Description
Name
Name of the function, function block, or operator.
Type
Type of function, function block, or operator. Possible types are "C" function (CFU), "C" function block (CFB), IEC 61131-3 function (IFU), IEC 61131-3 function block (IFB), operator (OPE), standard function block (SFB), and standard function (SFU).
Category
Category of function, function block, or operator. Possible categories vary depending on the target definition.
Comment
Comment for the function, function block, or operator. Free-format text.
Scope
Indicates where the POU is defined.
When selecting operators like addition, multiplication, and AND, specify the number of inputs.
Use the
Block Selector
to refine the list of available blocks by sorting the block list and limiting searches. Also choose to display the parameters while viewing the blocks.
In the
Block Selector
, navigate with keyboard and mouse controls.
Arrow keys
Move up, down, left, and right within the cells of the blocks list.
Tab key
Move left and right within the cells of each row in the blocks list. After exiting the blocks list, move from left to right between the fields, option, command buttons and back to the blocks list.
Esc key
Move from the blocks list to the fields.
Space bar
Open the parameters display when the
Show Parameters
option is selected.
Enter key
Close the
Block Selector
and display the selected block in the workspace.
From the
Block Selector
, access help for the displayed operators, functions, and function blocks.
Task
Procedure
Create a declared instance of a function block
Declared instances are function blocks with assigned instances. For graphical and non-graphical programs, declare instances in the
Block Selector
. These instances are considered as variables.
  1. From the list of available blocks, select the function block type.
  2. In the
    Instance
    field, type a name for the instance, and then click
    OK
    .
Sort the block list
Sort the columns of the block list by setting these in ascending or descending order.
  • Click the required column header to toggle the sort order between ascending and descending.
Limit searches
Type text in the
Search
field to list only the blocks containing these characters.
  • In the
    Search
    field of the
    Block Selector
    , type the required text.
