Ungroup graphic objects

Ungrouping a set of grouped objects deletes any animation attached to the group because the group no longer exists. Animation attached to the individual objects remains active.
To ungroup graphic objects:

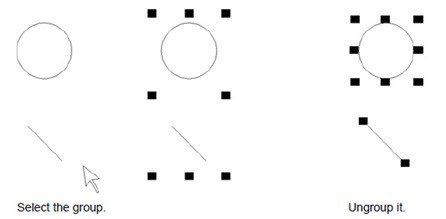

  1. In FactoryTalk View Studio, on a graphic display, select the group you are going to ungroup.
  2. From the menu,click
    Arrange
     >
    Ungroup
    . The handles around the group are replaced with handles around each object.
