Example: Configuration and data flow for the station with remote OPC UA Server architecture

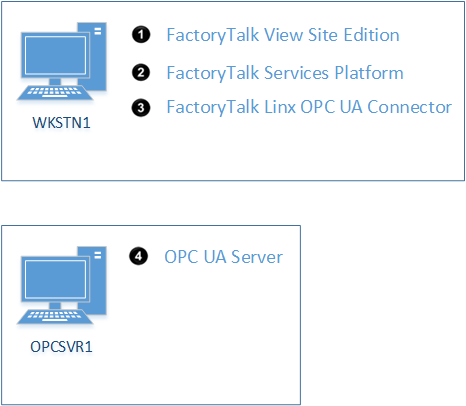

A station architecture hosts the

FactoryTalk

client,

FactoryTalk

Network Directory server, and

FactoryTalk Linx

OPC

UA Connector on a single workstation. A remote computer or embedded device might provide the OPC UA Server.

Software	Installed on Computer	Configured Using
FactoryTalk client, FactoryTalk View SE	WKSTN1	FactoryTalk View Studio
FactoryTalk Services Platform configured as FactoryTalk Network Directory server	WKSTN1	FactoryTalk Administration Console
FactoryTalk Linx OPC UA Connector	WKSTN1	FactoryTalk Linx OPC UA Connector settings configured using Explorer FactoryTalk Linx OPC UA Connector Connector Settings . FactoryTalk Linx OPC UA Connector server and endpoint selection settings configured using Explorer FactoryTalk Linx OPC UA Connector OPC UA Servers .
OPC UA Server	OPCSVR1	Software provided by OPC UA Server

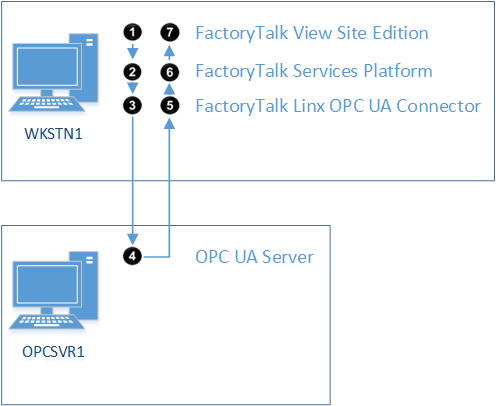

When a

FactoryTalk

client, such as

FactoryTalk View SE

, requests a tag provided by

FactoryTalk Services Platform

, the

FactoryTalk Linx

OPC

UA Connector subscribes to the

OPC

UA Server node. When the node value is received, the

FactoryTalk Linx

OPC

UA Connector provides the value to

FactoryTalk Services Platform

as a tag, which the

FactoryTalk Services Platform

service returns to the

FactoryTalk

client.

Order	Software	Action
	FactoryTalk client, FactoryTalk View SE	Request tag value from FactoryTalk Services Platform .
	FactoryTalk Services Platform configured as FactoryTalk Network Directory server	Request tag value from FactoryTalk Linx OPC UA Connector.
	FactoryTalk Linx OPC UA Connector	Translate to OPC UA Server node ID and subscribe.
	OPC UA Server	Provide node value to FactoryTalk Linx OPC UA Connector.
	FactoryTalk Linx OPC UA Connector	Convert node value to FactoryTalk data type, then update tag value in FactoryTalk Services Platform .
	FactoryTalk Services Platform configured as FactoryTalk Network Directory server	Provide tag value to FactoryTalk client.
	FactoryTalk client, FactoryTalk View SE	Display or use tag value.
