889N-F7AF-10

889 Mini Cable

Name: 889 Mini Cable
Brand: Rockwell Automation
SKU: 889n-f7af-10

Serial #:

Lifecycle status: Active

Description

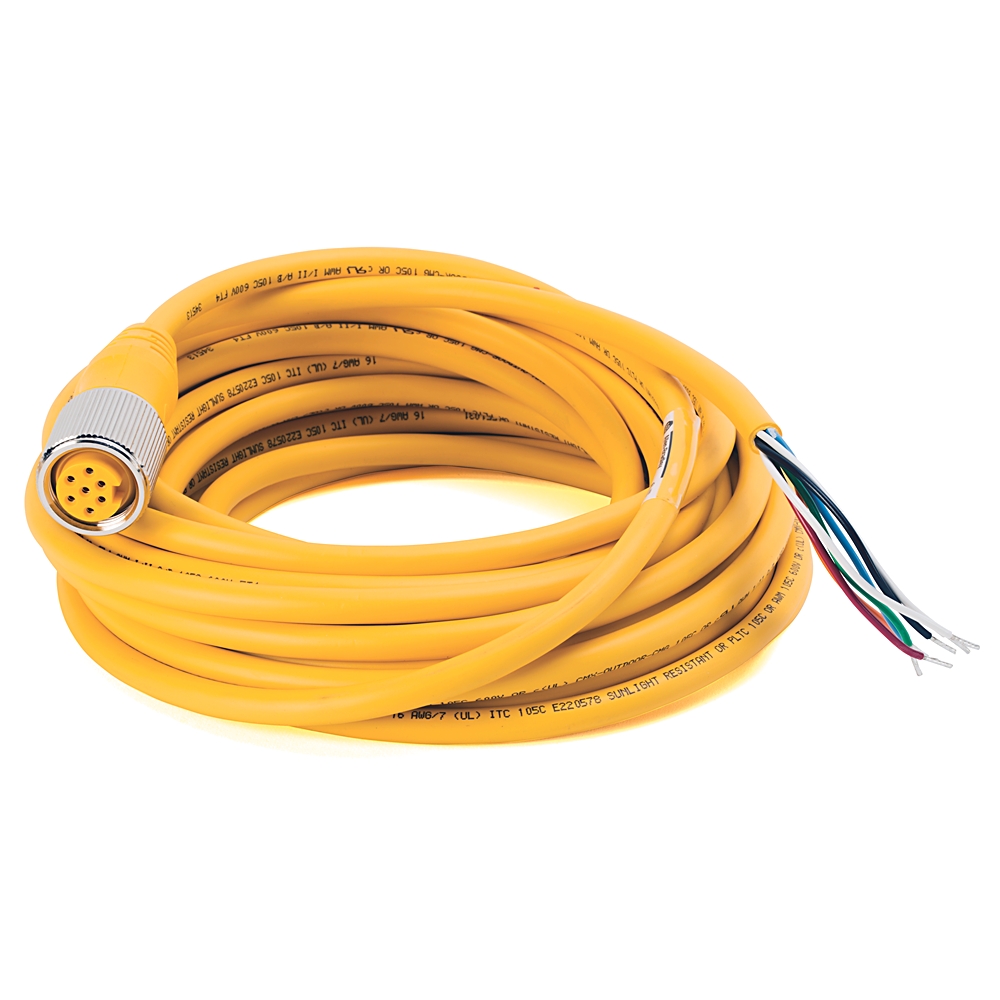

Cordset: Mini/Mini Plus, Female, Straight, 7-Pin, PVC Cable, Yellow, Unshielded, IEC Color Coded, No Connector, 10 meter (32.8 feet), 16AWG

Unique Product Identifier	889N-F7AF-10
UPC	611320239140
Estimated Lead Time	52 days
Standard Warranty Duration	1 year See details
Country of Origin	United States of America

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

First End Connection	No Connector,Female, Straight (Int Threads)
Jacket	--,PVC Cable, Yellow, 16 AWG
Second End Conductors	Same as First End
Wire Size	--

Rated voltage	600 V
Assembly rating	16 AWG: 600V @ 7A
Cable rating	16 AWG: UL STOOW 90C @ 600V, CSA ST 105C FT2 UL AWM style 2517 or 2661 105C @ 300V, CSA AWM A/B I/II 105C @ 300V, CSA AWM A/B I/II 105C @ 300V FT1

Number of poles	7
Operating temperature	-40 °C
List of degrees of protection	IP68
Second end conductors	Same as first end
Enclosure type rating	NEMA 1, 3, 4, 6P, 12, 13, 1200 psi washdown
First end connector style	Female, straight (internal threads, except mini receptacles)
Cable diameter	16 AWG 9 core cable: 17 mm, 16 AWG 10 core cable: 17 mm, 16 AWG 12 core cable: 18 mm
Cable type	PVC cable, yellow, unshielded, 16 AWG
Material	Coupling nut: brass Nickel, 16 AWG, Epoxy-coated Zinc, 18 AWG, housing: TPU yellow, contact: Gold-plated machined brass
Bend radius	10 x diam

With shield connection	False
Cable length	10000 mm
Length	Connector: 61.8 mm
Special characteristic	Standard
Second end termination style	No connector
Second end termination type	Cable - IEC standard color code
Product type feature	Standard- Epoxy coated Zinc for DC micro, AC micro, mini QD with 2-6 pin, Standard-Nickel plated brass for pico, Standard-aluminum with clear sealant for mini QD with 7-12 pin
Material of contact surface	Gold
Material housing	Plastic
Type of plug-in contact, inner side	Female (bus)
Mounting method	Freely positionable
