889 Mini Cable

Name: 889 Mini Cable
Brand: Rockwell Automation
SKU: 889N-F5AFC-20F

Serial #:

Lifecycle status: Active

Description

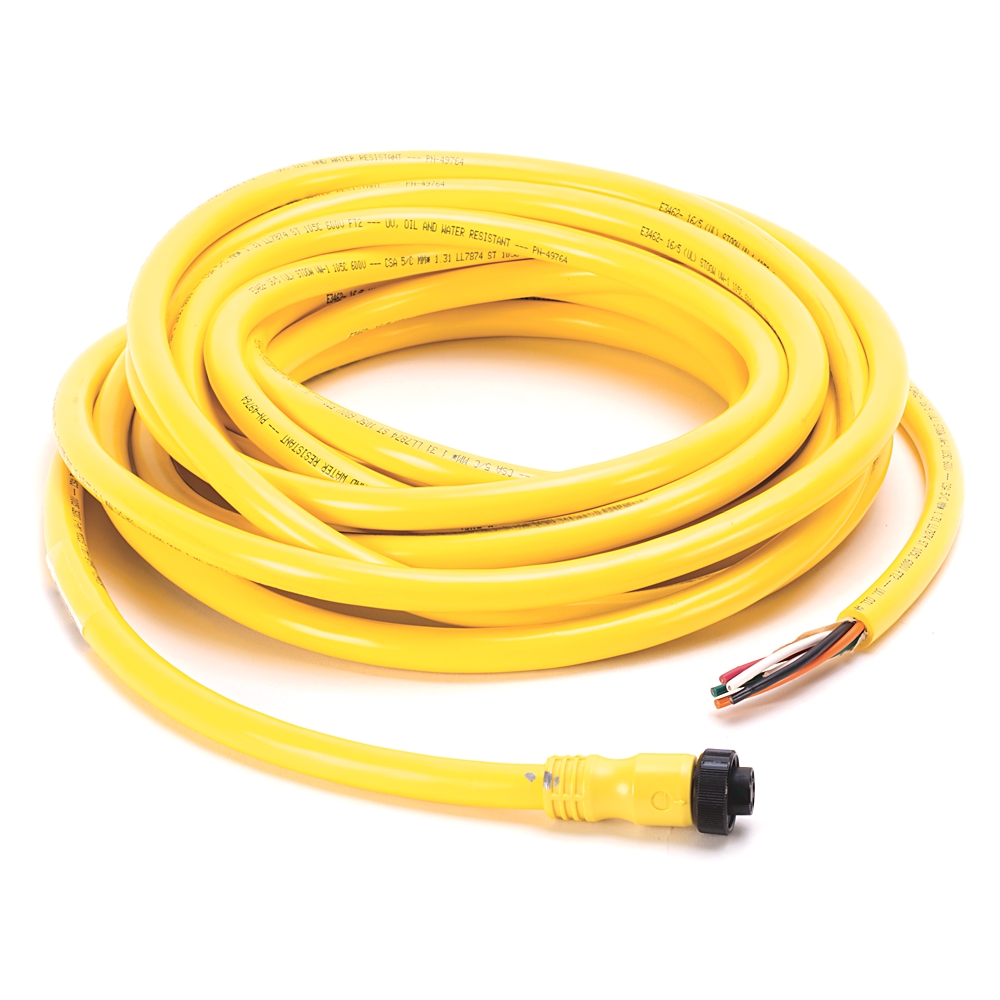

Cordset: Mini/Mini Plus, Female, Straight, 5-Pin, PVC Cable, Yellow, Unshielded, US Color Coded, No Connector, 20 feet (6.1 meters), 16AWG

Unique Product Identifier	889N-F5AFC-20F
UPC	662468941488
Estimated Lead Time	5 days
Country of Origin	>1

First End Connection	Female, Straight (int threads),Female, Straight (Int Threads)
First End Number of pins	5-pin
Jacket	PVC Cbl, Yellow, UnShld,PVC Cable, Yellow, 16 AWG
Second End Conductors	Same as First End
Second End Connection	No Connector,Cable,No Connector,Cable - U.S. Color Code
Wire Size	16 AWG

Number of poles	5
Operating temperature	-40 °C
List of degrees of protection	IP67 and IP69K
Second end conductors	Same as first end
Enclosure type rating	NEMA 1, 3, 4, 6P, 12, 13, 1200 psi washdown
First end connector style	Female, straight (internal threads, except mini receptacles)
Cable diameter	16 AWG 9 core cable: 17 mm, 16 AWG 10 core cable: 17 mm, 16 AWG 12 core cable: 18 mm
Cable type	PVC cable, yellow, unshielded, 16 AWG
Material	Coupling nut: brass Nickel, 16 AWG, Epoxy-coated Zinc, 18 AWG, housing: TPU yellow, contact: Gold-plated machined brass
Bend radius	10 x diam

Rated voltage	600 V
Assembly rating	16 AWG: 600V @ 7A
Cable rating	16 AWG: UL STOOW 90C @ 600V, CSA ST 105C FT2 UL AWM style 2517 or 2661 105C @ 300V, CSA AWM A/B I/II 105C @ 300V, CSA AWM A/B I/II 105C @ 300V FT1

With shield connection	False
Cable length	6096 mm
Length	Connector: 61.8 mm
Special characteristic	Standard
Second end termination style	No connector
Second end termination type	Cable - U.S. industry standard color coded
Product type feature	Standard- Epoxy coated Zinc for DC micro, AC micro, mini QD with 2-6 pin, Standard-Nickel plated brass for pico, Standard-aluminum with clear sealant for mini QD with 7-12 pin
Material of contact surface	Gold
Material housing	Plastic
Type of plug-in contact, inner side	Female (bus)
Mounting method	Freely positionable

General	Publication
Product Cutsheet	--

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

UKCA DOC

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	889N-F5AFC-20F
UPC	662468941488
Estimated Lead Time	5 days
Country of Origin	>1

Technical Specifications

First End Connection	Female, Straight (int threads),Female, Straight (Int Threads)
First End Number of pins	5-pin
Jacket	PVC Cbl, Yellow, UnShld,PVC Cable, Yellow, 16 AWG
Second End Conductors	Same as First End
Second End Connection	No Connector,Cable,No Connector,Cable - U.S. Color Code
Wire Size	16 AWG

Number of poles	5
Operating temperature	-40 °C
List of degrees of protection	IP67 and IP69K
Second end conductors	Same as first end
Enclosure type rating	NEMA 1, 3, 4, 6P, 12, 13, 1200 psi washdown
First end connector style	Female, straight (internal threads, except mini receptacles)
Cable diameter	16 AWG 9 core cable: 17 mm, 16 AWG 10 core cable: 17 mm, 16 AWG 12 core cable: 18 mm
Cable type	PVC cable, yellow, unshielded, 16 AWG
Material	Coupling nut: brass Nickel, 16 AWG, Epoxy-coated Zinc, 18 AWG, housing: TPU yellow, contact: Gold-plated machined brass
Bend radius	10 x diam

Rated voltage	600 V
Assembly rating	16 AWG: 600V @ 7A
Cable rating	16 AWG: UL STOOW 90C @ 600V, CSA ST 105C FT2 UL AWM style 2517 or 2661 105C @ 300V, CSA AWM A/B I/II 105C @ 300V, CSA AWM A/B I/II 105C @ 300V FT1

With shield connection	False
Cable length	6096 mm
Length	Connector: 61.8 mm
Special characteristic	Standard
Second end termination style	No connector
Second end termination type	Cable - U.S. industry standard color coded
Product type feature	Standard- Epoxy coated Zinc for DC micro, AC micro, mini QD with 2-6 pin, Standard-Nickel plated brass for pico, Standard-aluminum with clear sealant for mini QD with 7-12 pin
Material of contact surface	Gold
Material housing	Plastic
Type of plug-in contact, inner side	Female (bus)
Mounting method	Freely positionable

Documents

Product Cutsheet General
--

General	Publication
Product Cutsheet	--
