889-C6ECA-S50

Cable Only 889

Name: Cable Only 889
Brand: Rockwell Automation
SKU: 889-C6ECA-S50

Serial #:

Lifecycle status: Active

Description

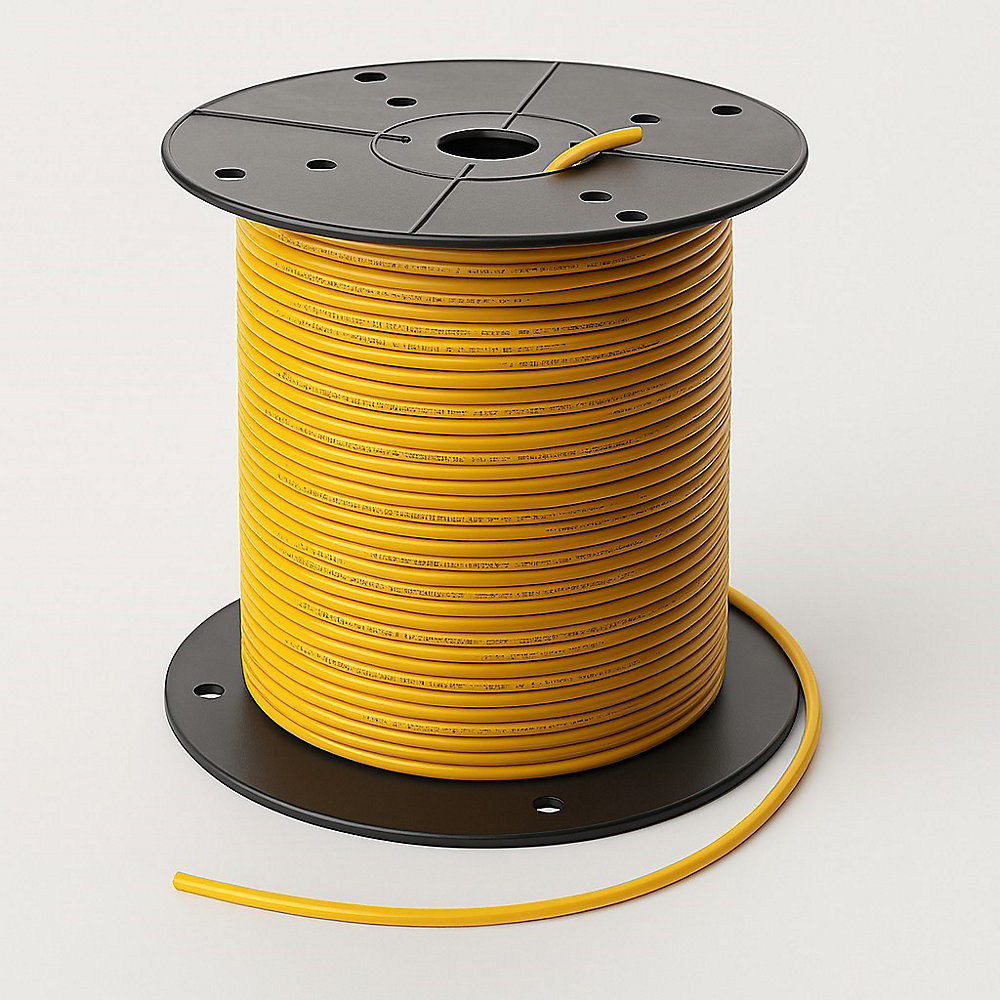

6 Conductor, PVC Cable, Yellow, Braided Shield, 22AWG, O.D. of 6.7mm (0.26in), 50m (164ft)

Lifecycle status: Active

Description

6 Conductor, PVC Cable, Yellow, Braided Shield, 22AWG, O.D. of 6.7mm (0.26in), 50m (164ft)

Unique Product Identifier	889-C6ECA-S50
UPC	662074293056
Estimated Lead Time	31 days
Standard Warranty Duration	1 year See details
Country of Origin	United States of America

AWG size	22 AWG
Cable geometry	Round
Cable rating	UL AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant
Material outer sheath	Polyvinyl chloride (PVC)
Stranding element	Other

Mechanical

Colour outer sheath	Yellow
Conductor category	Class 2 = stranded
Core identification	Colour
Longitudinal water blocking cable	True
Material core insulation	Polyvinyl chloride (PVC)
Number of cores	6
Radial water blocking cable	True
Suitable as computer data cable	True
Suitable as signalling cable	True
Suitable as telephone cable	False
UV resistant	True

Construction

Cable length	50 m
Cable spool	Cable only
Color code	Automotive
Stranding	Bundle
Type of cable	PVC cable, yellow, shielded, 22 AWG

Operating temperature	-20 °C

General	Publication
Product Cutsheet	--

Technical Data	Publication
889-td002_-en-p	889-TD002

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Visit the Technical Documentation Center Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	889-C6ECA-S50
UPC	662074293056
Estimated Lead Time	31 days
Standard Warranty Duration	1 year See details
Country of Origin	United States of America

Electrical & Connectivity

AWG size	22 AWG
Cable geometry	Round
Cable rating	UL AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant
Material outer sheath	Polyvinyl chloride (PVC)
Stranding element	Other

Physical Characteristics

Mechanical

Colour outer sheath	Yellow
Conductor category	Class 2 = stranded
Core identification	Colour
Longitudinal water blocking cable	True
Material core insulation	Polyvinyl chloride (PVC)
Number of cores	6
Radial water blocking cable	True
Suitable as computer data cable	True
Suitable as signalling cable	True
Suitable as telephone cable	False
UV resistant	True

Construction

Cable length	50 m
Cable spool	Cable only
Color code	Automotive
Stranding	Bundle
Type of cable	PVC cable, yellow, shielded, 22 AWG

Compliance & Environment

Operating temperature	-20 °C

Documents

Product Cutsheet General
--

889-td002_-en-p Technical Data
889-TD002

General	Publication
Product Cutsheet	--
Technical Data	Publication
889-td002_-en-p	889-TD002
