| Number of cores | 4 None |
|---|---|
| Suitable as telephone cable | False |
| Colour outer sheath | Yellow |
| Material core insulation | Polyvinyl chloride (PVC) |
| UV resistant | True |
| Longitudinal water blocking cable | True |
| Radial water blocking cable | True |
| Suitable as computer data cable | True |
| Suitable as signalling cable | True |
| Core identification | Colour |
| Armouring/reinforcement | Braiding |
| Conductor category | Class 2 = stranded |
| AWG size | 22 AWG |
|---|---|
| Stranding element | Quad |
| Material outer sheath | Polyvinyl chloride (PVC) |
| Cable rating | UL AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant |
| Cable geometry | Round |
| Screen over stranding | Braiding |
|---|---|
| Cable length | 200 m |
| Color code | IEC standard (euro) |

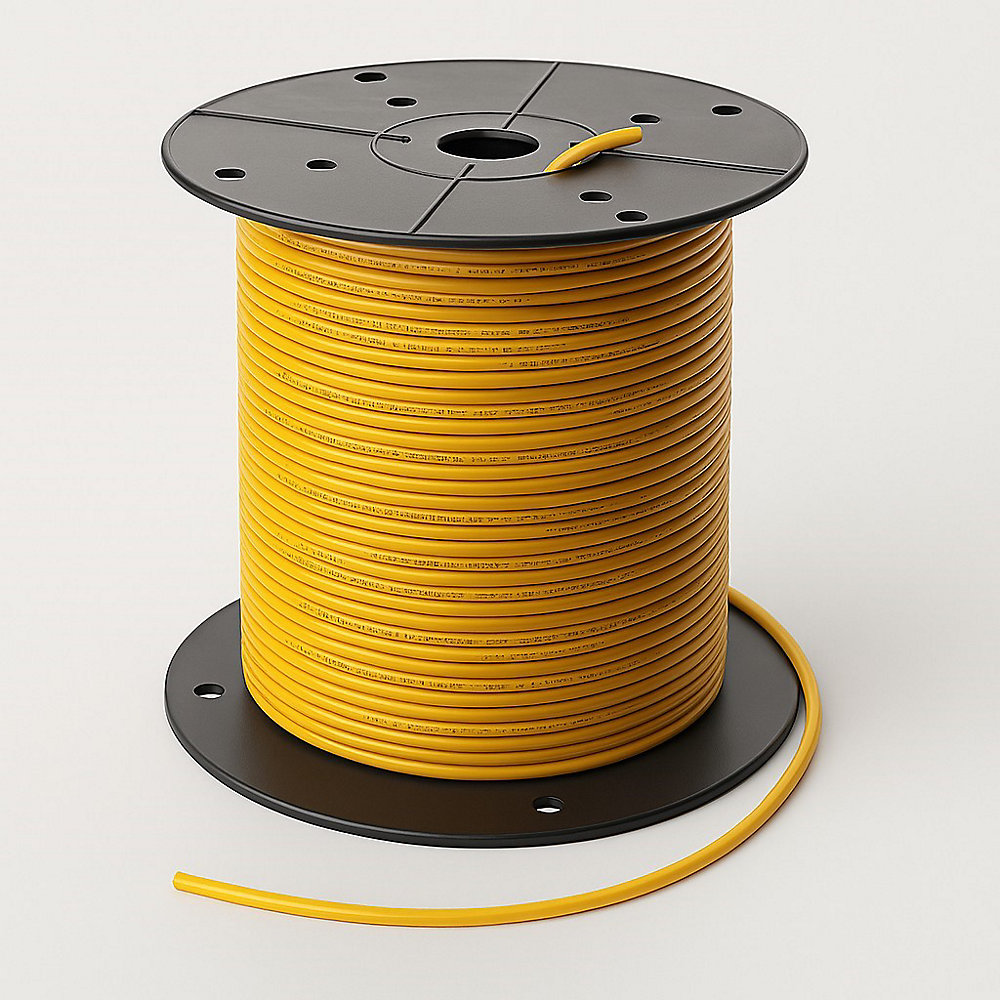

| Type of cable | PVC cable, yellow, foil shield 22 AWG |
| Stranding | Bundle |
| Cable spool | Cable only |
| Operating temperature | -20 °C |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 33.02 |
| Lead Time | 29 |
| Dimension Width | 31.75 |
| Dimension Length | 30.48 |
| Stock Status | NON_STOCKED |
| Weight | 10.342 |
| Weight Unit | KG |
| Dimension Unit | CM |
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| Technical Data | 889-td002_-en-p | 889-TD002 |
