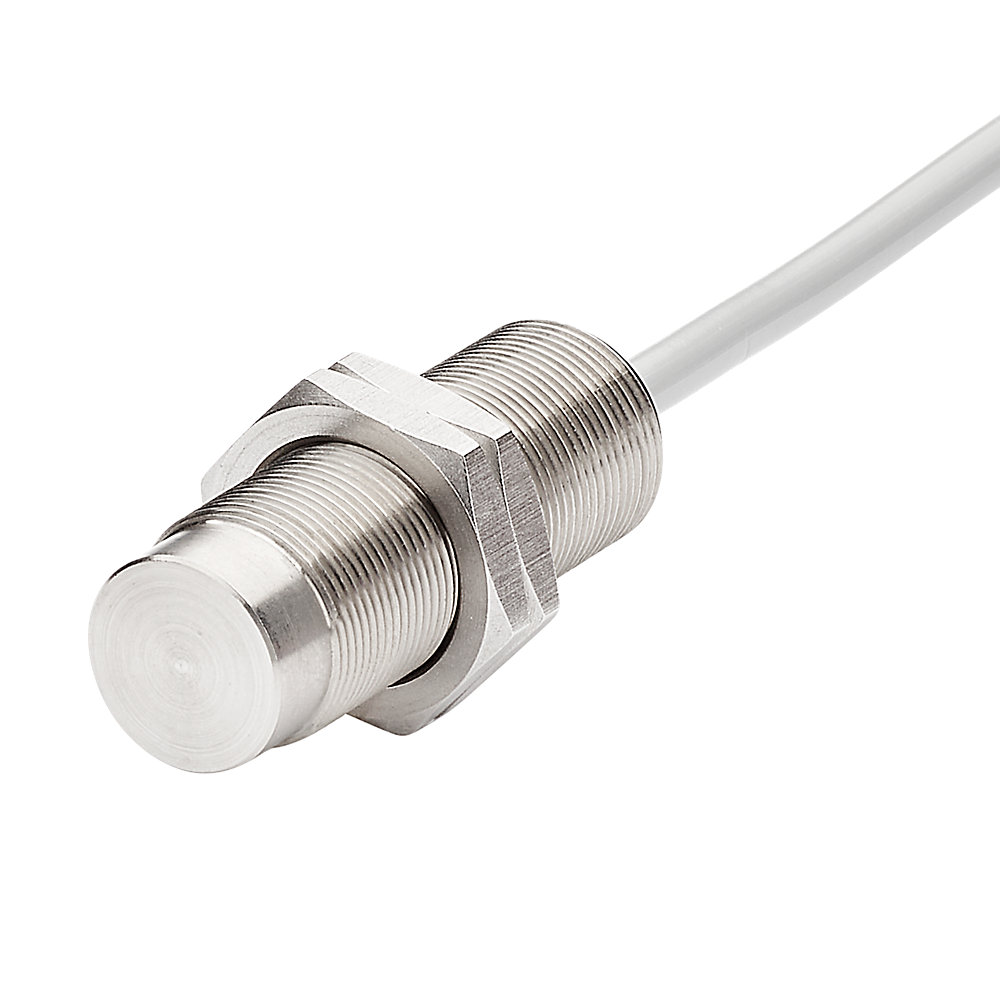

| Supply voltage | 10 to 30 V |
|---|---|
| Length of sensor | 51 mm |
| Diameter sensor | 18 mm |
| Switching distance | 8 mm |
| Type of switch function | N.O. |
| Type of switching output | PNP |
| Type of electric connection | PVC cable 2 m |
| Voltage type | DC |
| Switching frequency | 100 Hz |
| Material housing | Stainless Steel 304 |
| Degree of protection | IP68, IP69K |
| IO-link protocol | 1.1 |
| Shielding | Standard (no shield) |
| Temperature range | -25 to 85 °C |
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| Technical Data | prox-td001_-en-p | PROX-TD001 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Supply voltage | 10 to 30 V |
|---|---|
| Length of sensor | 51 mm |
| Diameter sensor | 18 mm |
| Switching distance | 8 mm |
| Type of switch function | N.O. |
| Type of switching output | PNP |
| Type of electric connection | PVC cable 2 m |
| Voltage type | DC |
| Switching frequency | 100 Hz |
| Material housing | Stainless Steel 304 |
| Degree of protection | IP68, IP69K |
| IO-link protocol | 1.1 |
| Shielding | Standard (no shield) |
| Temperature range | -25 to 85 °C |
Drawings
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
Documents
|
Product Cutsheet
General
-- |
|
prox-td001_-en-p
Technical Data
PROX-TD001 |
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| Technical Data | prox-td001_-en-p | PROX-TD001 |
