871TM-DH15NP30-A2

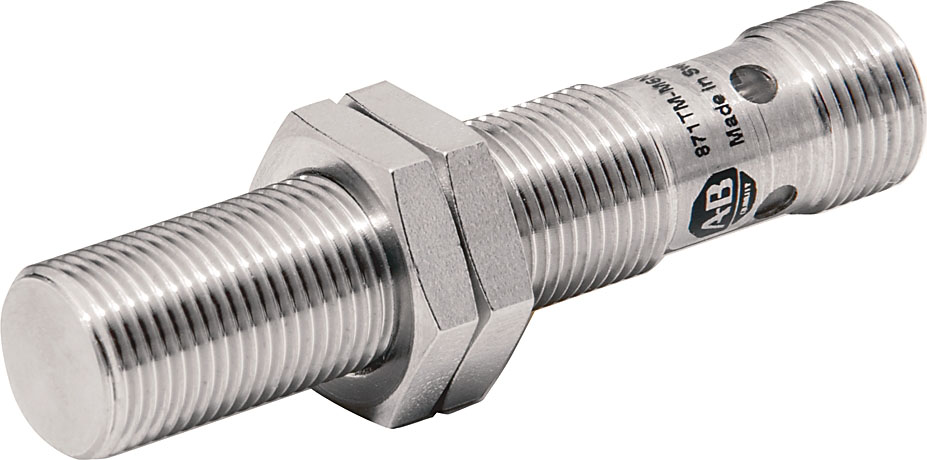

Metal Face Inductive Sensor

Name: Metal Face Inductive Sensor
Brand: Rockwell Automation
SKU: 871TM-DH15NP30-A2

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of June 24, 2024, the Metal Face Inductive Sensor will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: June 24, 2024 Replacement Category: Engineering Replacement Replacement Product: 871TM-N15NP30-A2 [https://www.rockwellautomation.com/en-us/products/details.871TM-N15NP30-A2.html]

Product at a glance

Replacement Available

Description

Proximity Sensor, 3-Wire DC Standard Barrel, 30mm Diameter, Shielded, Tubular:Stainless Steel, Metal Face, 15mm Sensing Distance, N.O., Source (PNP) Output, PVC Cable

Lifecycle status: Discontinued

Discontinued Date: June 24, 2024 Replacement Category: Engineering Replacement Replacement Product: 871TM-N15NP30-A2 [https://www.rockwellautomation.com/en-us/products/details.871TM-N15NP30-A2.html]

Product at a glance

Replacement Available

Description

Proximity Sensor, 3-Wire DC Standard Barrel, 30mm Diameter, Shielded, Tubular:Stainless Steel, Metal Face, 15mm Sensing Distance, N.O., Source (PNP) Output, PVC Cable

Unique Product Identifier	871TM-DH15NP30-A2
UPC	662468005012
Standard Warranty Duration	1 year See details
Country of Origin	Dominican Republic

Output	DC NOC Sourcing
Sensing Distance	15 mm
Type	Inductive Sensor

Capacitive load	≤1 µF
Correction factor	Steel: 1
Description	Metal face inductive sensor
Hysteresis	10% typical
Leakage current	≤0.9 mA
Load current	≤200 mA
Output	Normally open
Output configuration	Normally open sourcing DC
Product type	Metal face
Protection type	False pulse, transient noise, reverse polarity, short circuit (trigger at 340 mA typical), overload
Rated control supply voltage at DC	10 V
Repeatability	≤10% at constant temperature
Special feature	Short barrel
Status indicator	Red: Output energized, Green: Power/short circuit (flashing)-18 mm models only
Switching frequency	30 Hz
Voltage drop	≤8V

Mechanical

Degree of protection (NEMA)	13
Diameter sensor	30 mm
Enclosure type rating	NEMA 1, 2, 3, 3R, 4, 4X, 6, 6P, 12, IP67 (IEC529) all models, 1200 psi washdown, toughlink and micro connector versions are also rated IP69K (IEC 529)
Nominal sensing distance	15 mm
Shock	30 G (1.06 oz), 11 ms
Vibration	55 Hz, 1 mm Alitude, 3 planes

Construction

Connection style	Cable: 2 m length, A2 - 3-conductor PVC, C2 - 3-conductor #22 AWG-toughlink, H2 - 3-conductor #18 AWG toughlink, Quick disconnect: 4 pin mini style, 4 pin micro style
Connection type	PVC cable 2 m
Housing material	Stainless steel face and barrel
Material housing	Metal
Type of actuation	Metallic Target
Type of electric connection	Cable
Voltage type	DC

Operating temperature	-25 °C

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

General	Publication
Product Cutsheet	--

Technical Data	Publication
prox-td001_-en-p	PROX-TD001

User Manual	Publication
871tm-um001_-en-p	871TM-UM001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Available Downloads

IODD Files for Inductive Proximity Sensors (871TM-xxxxx v1.1

See All Downloads

UKCA DOC

This product was certified with the above certifications as of 2026-07-16. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Looking for certification documents?
Explore certifications for this product and more in our comprehensive Literature Library.

Search the Literature Library

Regulatory Information

EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	871TM-DH15NP30-A2
UPC	662468005012
Standard Warranty Duration	1 year See details
Country of Origin	Dominican Republic

Electrical & Connectivity

Output	DC NOC Sourcing
Sensing Distance	15 mm
Type	Inductive Sensor

Capacitive load	≤1 µF
Correction factor	Steel: 1
Description	Metal face inductive sensor
Hysteresis	10% typical
Leakage current	≤0.9 mA
Load current	≤200 mA
Output	Normally open
Output configuration	Normally open sourcing DC
Product type	Metal face
Protection type	False pulse, transient noise, reverse polarity, short circuit (trigger at 340 mA typical), overload
Rated control supply voltage at DC	10 V
Repeatability	≤10% at constant temperature
Special feature	Short barrel
Status indicator	Red: Output energized, Green: Power/short circuit (flashing)-18 mm models only
Switching frequency	30 Hz
Voltage drop	≤8V

Physical Characteristics

Mechanical

Degree of protection (NEMA)	13
Diameter sensor	30 mm
Enclosure type rating	NEMA 1, 2, 3, 3R, 4, 4X, 6, 6P, 12, IP67 (IEC529) all models, 1200 psi washdown, toughlink and micro connector versions are also rated IP69K (IEC 529)
Nominal sensing distance	15 mm
Shock	30 G (1.06 oz), 11 ms
Vibration	55 Hz, 1 mm Alitude, 3 planes

Construction

Connection style	Cable: 2 m length, A2 - 3-conductor PVC, C2 - 3-conductor #22 AWG-toughlink, H2 - 3-conductor #18 AWG toughlink, Quick disconnect: 4 pin mini style, 4 pin micro style
Connection type	PVC cable 2 m
Housing material	Stainless steel face and barrel
Material housing	Metal
Type of actuation	Metallic Target
Type of electric connection	Cable
Voltage type	DC

Compliance & Environment

Operating temperature	-25 °C
