855W-G24Y3Y5Y4Y7P1

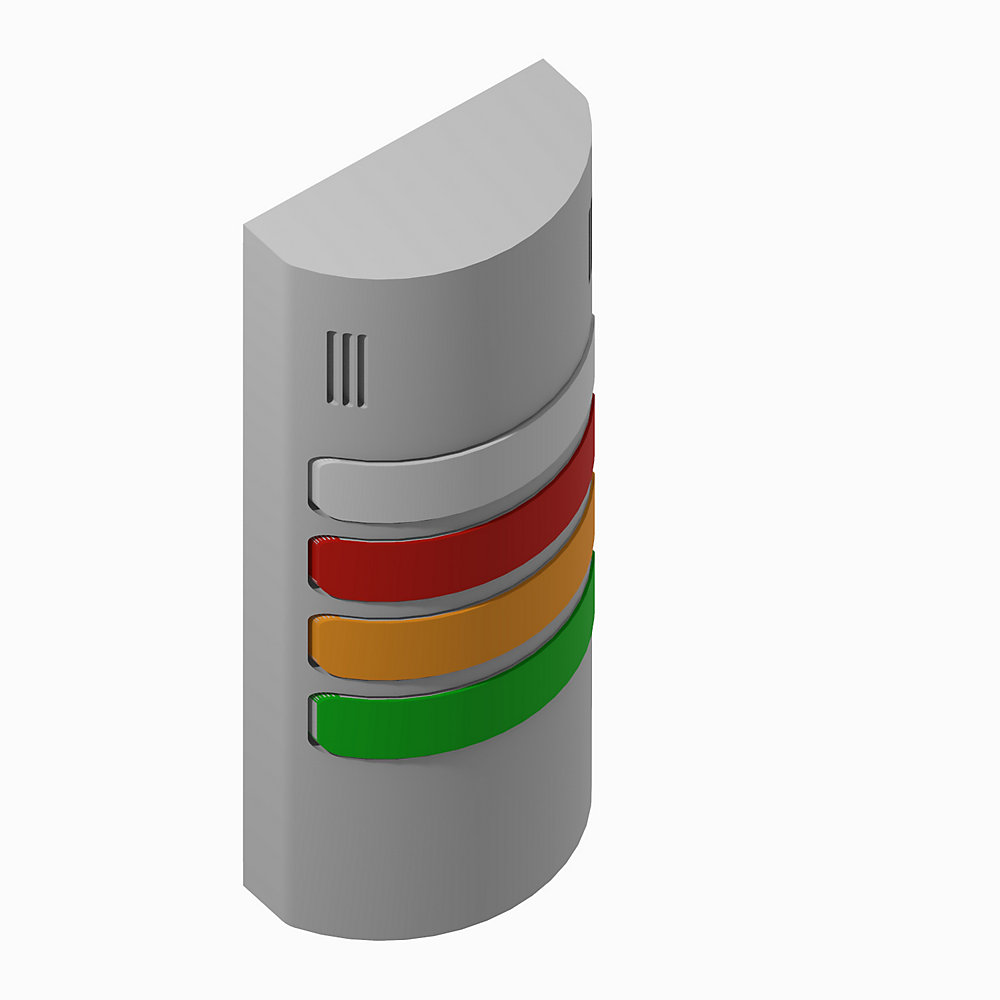

855W 24V AC/DC Wall Mount Signal Light

Serial #:

Lifecycle status: Active

Degree of protection (NEMA)	4X
Loudness	90 dBb
Degree of protection (IP)	IP65
Design life rating	Steady or flashing LED: 30000...50000 hr
Decibel rating	Piezo sounder: 90 dBa (potentiom adjustable down to 70 dBa), all dBa ratings are determined at a distance of 1 m (3.3 ft) from the sound module
List of degrees of protection (NEMA)	4, 4X, 13

Function acoustic	True
Rated operating voltage Ue	24 V
Voltage type for actuating	AC/DC
Current consumption, max	Steady or flashing LED per channel: 43mA @ 24V AC/DC
Operating voltage	24V AC/DC (±10%)
Current consumption	Piezo sounder: 62mA @ 24V AC/DC
Network option	No network option
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation

Housing color	Grey
Optical signal type	Continuous light
Level-1 lens color	Green
Level-2 lens color	Amber
Level-3 lens color	Red
Level-4 lens color	Clear
Level-5 lens color	No module
Mounting type	Wall mount
Sound option	90 dB piezo sounder, selectable continuous or pulsing 90 dBa max with volume adjust of -20 dB
Level-5 module type	No module
Function continuous light	True
Type of lamp	LED
Acoustic signal device type	Piezo sounder
Acoustic signal type	Pulse tone/continuous tone

Operating temperature	-25 °C
Storage temperature	-25 °C

Material	Lenses and base: Polycarbonate (94V-0), Cover: ABS, Rubber seals and gaskets: NBR 70

Drawings
2D Drawing (PDF)	Download (PDF)
3D STEP Model (STP)	Download (ZIP)
Product Drawing	Drawing (DXF)

Drawings
2D Drawing (PDF) Download (PDF)
3D STEP Model (STP) Download (ZIP)
Product Drawing Drawing (DXF)

General	Publication
Product Cutsheet	--

Technical Data	Publication
855-td001_-en-p	855-TD001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

UKCA DOC

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Technical Specifications

Degree of protection (NEMA)	4X
Loudness	90 dBb
Degree of protection (IP)	IP65
Design life rating	Steady or flashing LED: 30000...50000 hr
Decibel rating	Piezo sounder: 90 dBa (potentiom adjustable down to 70 dBa), all dBa ratings are determined at a distance of 1 m (3.3 ft) from the sound module
List of degrees of protection (NEMA)	4, 4X, 13

Function acoustic	True
Rated operating voltage Ue	24 V
Voltage type for actuating	AC/DC
Current consumption, max	Steady or flashing LED per channel: 43mA @ 24V AC/DC
Operating voltage	24V AC/DC (±10%)
Current consumption	Piezo sounder: 62mA @ 24V AC/DC
Network option	No network option
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation

Housing color	Grey
Optical signal type	Continuous light
Level-1 lens color	Green
Level-2 lens color	Amber
Level-3 lens color	Red
Level-4 lens color	Clear
Level-5 lens color	No module
Mounting type	Wall mount
Sound option	90 dB piezo sounder, selectable continuous or pulsing 90 dBa max with volume adjust of -20 dB
Level-5 module type	No module
Function continuous light	True
Type of lamp	LED
Acoustic signal device type	Piezo sounder
Acoustic signal type	Pulse tone/continuous tone

Operating temperature	-25 °C
Storage temperature	-25 °C

Material	Lenses and base: Polycarbonate (94V-0), Cover: ABS, Rubber seals and gaskets: NBR 70
