855W-G10L7L6P1

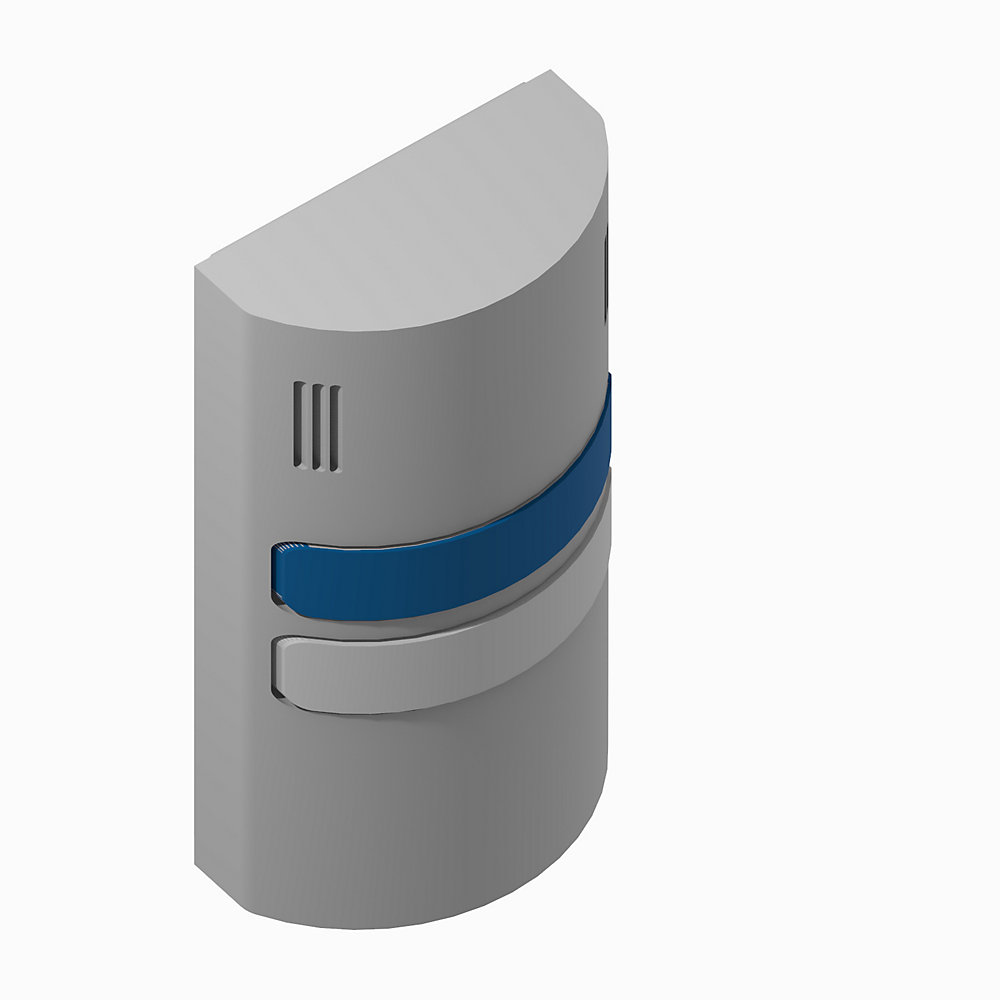

855W 120V AC Wall Mount Signal Light

Name: 855W 120V AC Wall Mount Signal Light
Brand: Rockwell Automation
SKU: 855W-G10L7L6P1

Serial #:

Lifecycle status: Active

Description

Wall Mount Signal Light, No Network Option, Grey, 120V AC, Clear Flashing LED, Blue Flashing LED, None No Module, None No Module, None, No Module, Piezo Sounder (Continuous/Pulsing)

Lifecycle status: Active

Description

Wall Mount Signal Light, No Network Option, Grey, 120V AC, Clear Flashing LED, Blue Flashing LED, None No Module, None No Module, None, No Module, Piezo Sounder (Continuous/Pulsing)

Unique Product Identifier	855W-G10L7L6P1
UPC	887172334641
Estimated Lead Time	36 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Mechanical

Decibel rating	Piezo sounder: 90 dBa (potentiom adjustable down to 70 dBa), all dBa ratings are determined at a distance of 1 m (3.3 ft) from the sound module
Degree of protection (IP)	IP65
Degree of protection (NEMA)	4X
Design life rating	Steady or flashing LED: 30000...50000 hr
Frequency	Flashing LED, level-2 module: 2 Hz
List of degrees of protection (NEMA)	4, 4X, 13
Loudness	90 dBb

Construction

Acoustic signal device type	Piezo sounder
Acoustic signal type	Pulse tone/continuous tone
Flashing light	True
Function flashlight	True
Housing color	Grey
Level-1 lens color	Clear
Level-2 lens color	Blue
Level-3 lens color	No module
Level-3 module type	No module
Level-4 lens color	No module
Level-4 module type	No module
Level-5 lens color	No module
Level-5 module type	No module
Mounting type	Wall mount
Optical signal type	Flash light
Sound option	90 dB piezo sounder, selectable continuous or pulsing 90 dBa max with volume adjust of -20 dB
Type of lamp	LED

Accessory

Material	Lenses and base: Polycarbonate (94V-0), Cover: ABS, Rubber seals and gaskets: NBR 70

Current consumption	Piezo sounder: 24mA @ 120V AC
Current consumption, max	Steady or flashing LED per channel: 33mA @ 120V AC
Function acoustic	True
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Network option	No network option
Operating voltage	110V AC @ 50Hz (±10%), 120V AC @ 60Hz (±10%)
Rated operating voltage Ue	120 V
Voltage type for actuating	AC

Operating temperature	-25 °C
Storage temperature	-25 °C

Drawings
2D Drawing (PDF)	Download (PDF)
3D STEP Model (STP)	Download (ZIP)
Product Drawing	Drawing (DXF)

Drawings
2D Drawing (PDF) Download (PDF)
3D STEP Model (STP) Download (ZIP)
Product Drawing Drawing (DXF)

Click the Download CAD button below to view all file formats available for download.

General	Publication
Product Cutsheet	--

Technical Data	Publication
855-td001_-en-p	855-TD001
