View all 855W Wall Mount Signal Lights
855W-C24Y3Y7Y4P1

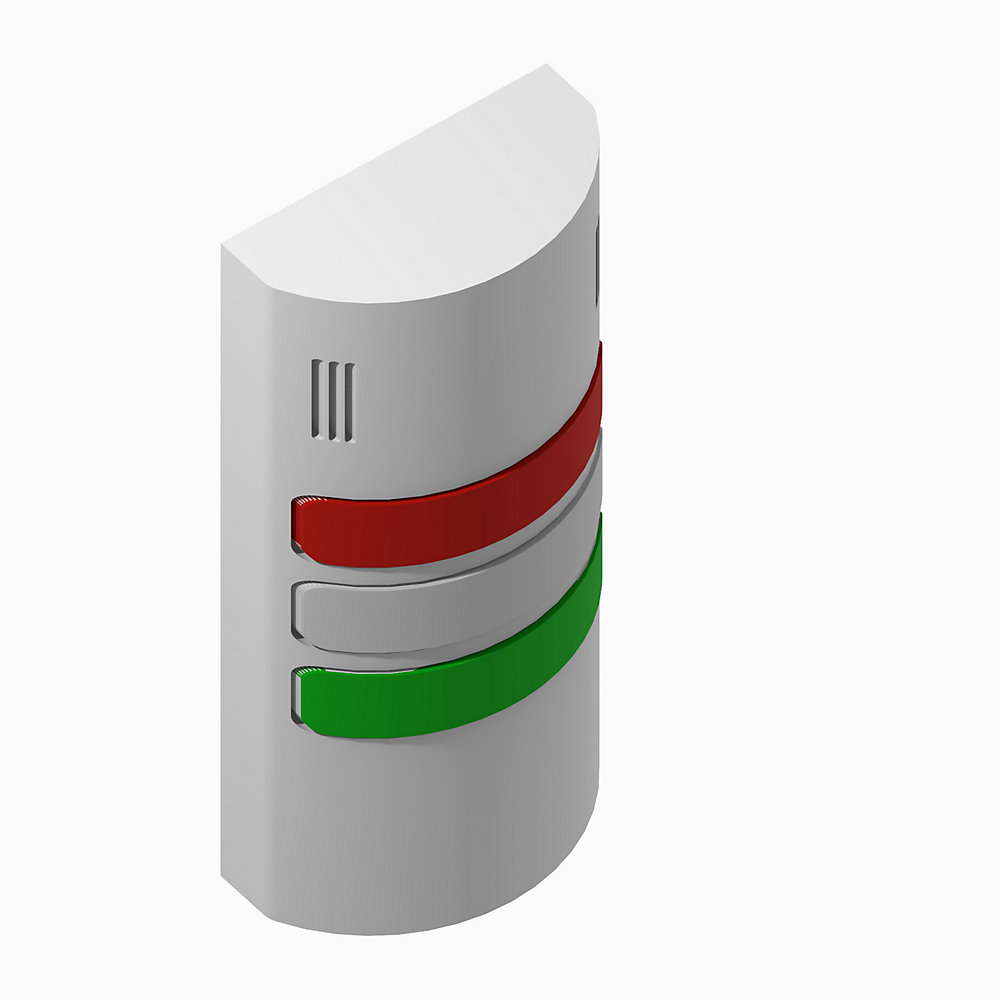

855W 24V AC/DC Wall Mount Signal Light
Rockwell Automation announces that as of July 31, 2025, the 855W 24V AC/DC Wall Mount Signal Light will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
July 31, 2025
Replacement Category:
No planned RA replacement
Rockwell Automation announces that as of July 31, 2025, the 855W 24V AC/DC Wall Mount Signal Light will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
July 31, 2025
Replacement Category:
No planned RA replacement
| Degree of protection (NEMA) |
4X
|
|---|---|
| Loudness |
90 dBb
|
| Degree of protection (IP) |
IP65
|
| Design life rating |
Steady or flashing LED: 30000...50000 hr
|
| Decibel rating |
Piezo sounder: 90 dBa (potentiom adjustable down to 70 dBa), all dBa ratings are determined at a distance of 1 m (3.3 ft) from the sound module
|
| List of degrees of protection (NEMA) |
4, 4X, 13
|
| Function acoustic |
True
|
|---|---|
| Rated operating voltage Ue |
24 V
|
| Voltage type for actuating |
AC/DC
|
| Current consumption, max |
Steady or flashing LED per channel: 43mA @ 24V AC/DC
|
| Operating voltage |
24V AC/DC (±10%)
|
| Current consumption |
Piezo sounder: 62mA @ 24V AC/DC
|
| Network option |
No network option
|
| Leakage current impact |
All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
|
| Housing color |
Chrome
|
|---|---|
| Optical signal type |
Continuous light
|
| Level-1 lens color |
Green
|
| Level-2 lens color |
Clear
|
| Level-3 lens color |
Red
|
| Level-4 lens color |
No module
|
| Level-5 lens color |
No module
|
| Mounting type |
Wall mount
|
| Sound option |
90 dB piezo sounder, selectable continuous or pulsing 90 dBa max with volume adjust of -20 dB
|
| Level-5 module type |
No module
|
| Level-4 module type |
No module
|
| Function continuous light |
True
|
| Type of lamp |
LED
|
| Acoustic signal device type |
Piezo sounder
|
| Acoustic signal type |
Pulse tone/continuous tone
|
| Operating temperature |
-25 °C
|
|---|---|
| Storage temperature |
-25 °C
|
| Material |
Lenses and base: Polycarbonate (94V-0), Cover: ABS, Rubber seals and gaskets: NBR 70
|
|---|
| Drawings | |
|---|---|
| 2D Drawing (PDF) | Download (PDF) |
| 3D STEP Model (STP) | Download (ZIP) |
| Product Drawing | Drawing (DXF) |
| Drawings |
|---|
| 2D Drawing (PDF) Download (PDF) |
| 3D STEP Model (STP) Download (ZIP) |
| Product Drawing Drawing (DXF) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| General | Publication |
|---|---|
| Product Cutsheet | -- |
| Technical Data | Publication |
|---|---|
| 855-td001_-en-p | 855-TD001 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
| Technotes |
|---|
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Degree of protection (NEMA) |
4X
|
|---|---|
| Loudness |
90 dBb
|
| Degree of protection (IP) |
IP65
|
| Design life rating |
Steady or flashing LED: 30000...50000 hr
|
| Decibel rating |
Piezo sounder: 90 dBa (potentiom adjustable down to 70 dBa), all dBa ratings are determined at a distance of 1 m (3.3 ft) from the sound module
|
| List of degrees of protection (NEMA) |
4, 4X, 13
|
| Function acoustic |
True
|
|---|---|
| Rated operating voltage Ue |
24 V
|
| Voltage type for actuating |
AC/DC
|
| Current consumption, max |
Steady or flashing LED per channel: 43mA @ 24V AC/DC
|
| Operating voltage |
24V AC/DC (±10%)
|
| Current consumption |
Piezo sounder: 62mA @ 24V AC/DC
|
| Network option |
No network option
|
| Leakage current impact |
All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
|
| Housing color |
Chrome
|
|---|---|
| Optical signal type |
Continuous light
|
| Level-1 lens color |
Green
|
| Level-2 lens color |
Clear
|
| Level-3 lens color |
Red
|
| Level-4 lens color |
No module
|
| Level-5 lens color |
No module
|
| Mounting type |
Wall mount
|
| Sound option |
90 dB piezo sounder, selectable continuous or pulsing 90 dBa max with volume adjust of -20 dB
|
| Level-5 module type |
No module
|
| Level-4 module type |
No module
|
| Function continuous light |
True
|
| Type of lamp |
LED
|
| Acoustic signal device type |
Piezo sounder
|
| Acoustic signal type |
Pulse tone/continuous tone
|
| Operating temperature |
-25 °C
|
|---|---|
| Storage temperature |
-25 °C
|
| Material |
Lenses and base: Polycarbonate (94V-0), Cover: ABS, Rubber seals and gaskets: NBR 70
|
|---|
