855TV-DL1B24Y5

Vertical Mount Signaling Device

Name: Vertical Mount Signaling Device
Brand: Rockwell Automation
SKU: 855TV-DL1B24Y5

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of October 01, 2019, the Vertical Mount Signaling Device will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: October 01, 2019 Replacement Category: No planned RA replacement

Lifecycle status: Discontinued

Discontinued Date: October 01, 2019 Replacement Category: No planned RA replacement

Description

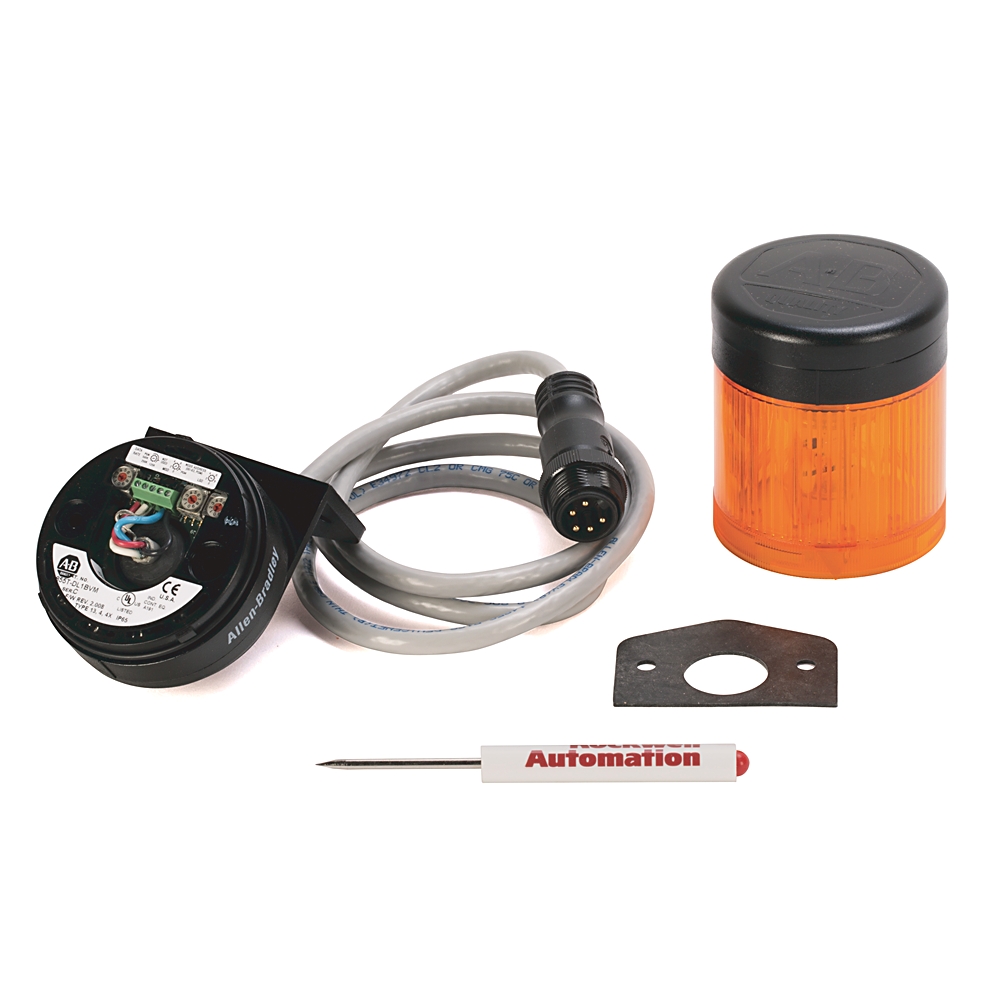

Product discontinued. Pre-Assembled Ctl. Tower, Vertical Mount with Cap, DeviceNet Mini Connect with 1 meter Cable, Black Housing, 24V AC/DC Full Voltage, Amber Steady LED

Unique Product Identifier	855TV-DL1B24Y5
UPC	662074471850
Estimated Lead Time	13 days
Country of Origin	Austria

Outer diameter	70 mm
Degree of protection (NEMA)	4X
Degree of protection (IP)	IP65
Recommended wire size	0.5 mm²
Recommended terminal torque	0.8 Nm
Shock	5 module stack: 35 G (surface-mount base or 10 cm aluminum pole base)
Vibration	5 module stack: 0.75 G (surface-mount base or 10 cm aluminum pole base)

Rated operating voltage Ue	24 V
Voltage type for actuating	AC/DC
Lamp life rating	Level-1 LED module: 10000 h
Light output	Level-1 module, Yellow LED: 900...1800 mcd
Voltage	24V AC/DC full voltage
Operating voltage	24V (±10%) @ AC/DC
Current consumption	Level-1 module: 42mA @ 12V AC/DC
Network option	DeviceNet mini-connect with 1 m cable (It can only be used with 24V AC/DC)
Leakage current impact	Can absorb up to 3 mA of leakage current from solid-state outputs without module activation.
Communication rate options	125K, 250K, 500K, autobaud

Housing color	Black
Base type	Vertical mount (includes cap)
Level-1 lens color	Amber
Level-2 lens color	No module
Level-3 lens color	No module
Level-4 lens color	No module
Level-5 lens color	No module
Level-5 module type	No module
Level-1 module type	Steady LED lA module
Level-2 module type	No module
Level-3 module type	No module
Level-4 module type	No module
Function continuous light	True

Operating temperature	-25 °C
Storage temperature	-40 °C

Materials	Surface and vertical-mount pole connection box and magnetic mount housing: Polycarbonate
