View all 856T Control Tower Stack Lights
855TV-B10T4

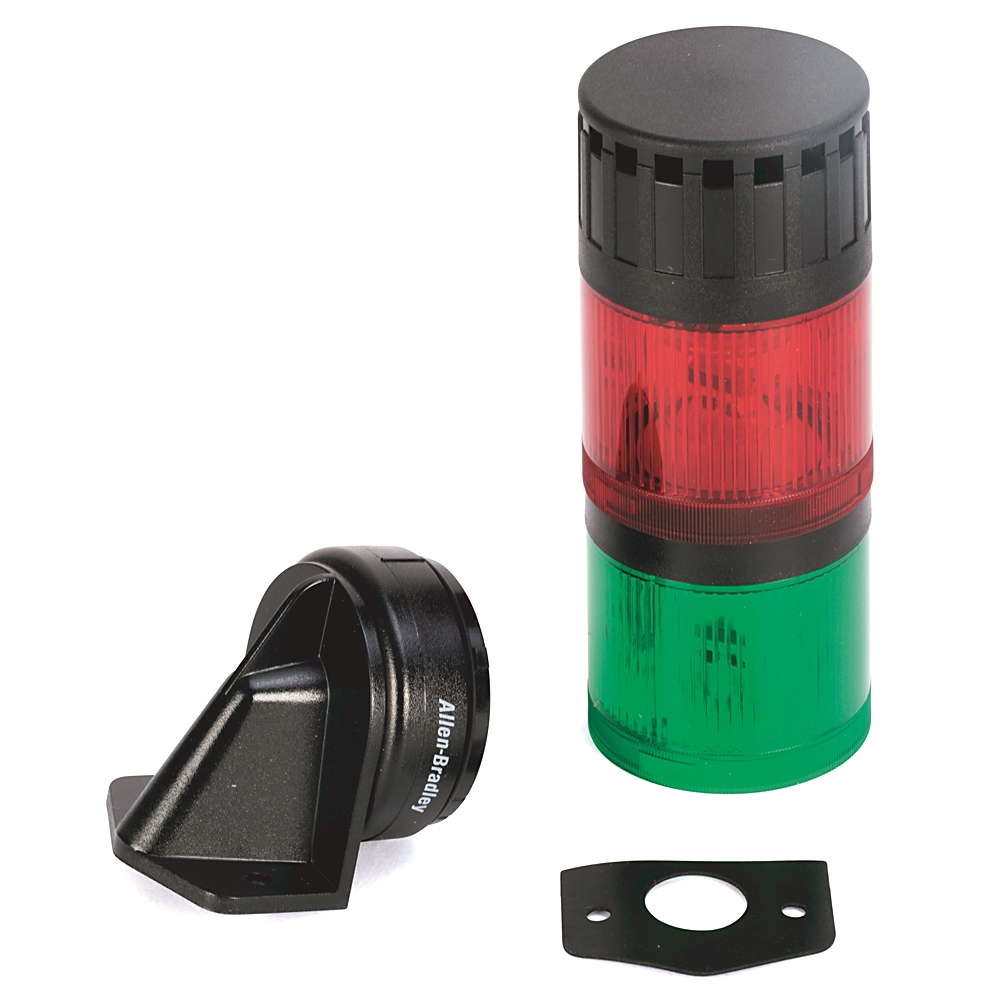

Vertical Mount Signaling Device
Rockwell Automation announces that as of October 01, 2019, the Vertical Mount Signaling Device will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
October 01, 2019
Replacement Category:
Functional Replacement
Replacement Product:
856TC-VMBA3Y4P1
[https://www.rockwellautomation.com/en-us/products/details.856TC-VMBA3Y4P1.html]
Product at a glance
Rockwell Automation announces that as of October 01, 2019, the Vertical Mount Signaling Device will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
October 01, 2019
Replacement Category:
Functional Replacement
Replacement Product:
856TC-VMBA3Y4P1
[https://www.rockwellautomation.com/en-us/products/details.856TC-VMBA3Y4P1.html]
Product at a glance
| Outer diameter |
70 mm
|
|---|---|
| Degree of protection (NEMA) |
4X
|
| Degree of protection (IP) |
IP65
|
| Recommended wire size |
0.5 mm²
|
| Recommended terminal torque |
0.8 Nm
|
| Shock |
5 module stack: 35 G (surface-mount base or 10 cm aluminum pole base)
|
| Vibration |
5 module stack: 0.75 G (surface-mount base or 10 cm aluminum pole base)
|
| Decibel rating |
Piezo light modules and light modules/with sound: high 107 dB/low 95 dB, selectable via DIP switch (set at continuous or pulsing tone, determined at a distance of 1 m from the sound module)
|
| Rated operating voltage Ue |
120 V
|
|---|---|
| Voltage type for actuating |
AC
|
| Sound module rating |
Level-1 sound module: 20000 h
|
| Tone frequency |
Level-1 module: preset at 2400 Hz or 3300 Hz
|
| Flashing and tone frequency for steady Incandescent/ with sound |
Level-1 module: sound pulsing frequency 1.5 Hz
|
| Lamp life rating |
Level-1 incandescent module: 8000h @ 12V AC/DC
|
| Voltage |
120V AC full voltage
|
| Operating voltage |
120V AC (±10%) @ AC, 60 Hz
|
| Current consumption |
Level-1 module: 78mA @ 120V AC
|
| Network option |
Standard
|
| Leakage current impact |
Can absorb up to 3 mA of leakage current from solid-state outputs without module activation.
|
| Communication rate options |
125K, 250K, 500K, autobaud
|
| Housing color |
Black
|
|---|---|
| Base type |
Vertical mount (includes cap)
|
| Level-1 lens color |
Red
|
| Level-2 lens color |
No module
|
| Level-3 lens color |
No module
|
| Level-4 lens color |
No module
|
| Level-5 lens color |
No module
|
| Level-5 module type |
No module
|
| Level-1 module type |
Steady incandescent & sound
|
| Level-2 module type |
No module
|
| Level-3 module type |
No module
|
| Level-4 module type |
No module
|
| Function continuous light |
True
|
| Operating temperature |
-25 °C
|
|---|---|
| Storage temperature |
-40 °C
|
| Materials |
Surface and vertical-mount pole connection box and magnetic mount housing: Polycarbonate
|
|---|
| General | Publication |
|---|---|
| Product Cutsheet | -- |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
| Technotes |
|---|
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Outer diameter |
70 mm
|
|---|---|
| Degree of protection (NEMA) |
4X
|
| Degree of protection (IP) |
IP65
|
| Recommended wire size |
0.5 mm²
|
| Recommended terminal torque |
0.8 Nm
|
| Shock |
5 module stack: 35 G (surface-mount base or 10 cm aluminum pole base)
|
| Vibration |
5 module stack: 0.75 G (surface-mount base or 10 cm aluminum pole base)
|
| Decibel rating |
Piezo light modules and light modules/with sound: high 107 dB/low 95 dB, selectable via DIP switch (set at continuous or pulsing tone, determined at a distance of 1 m from the sound module)
|
| Rated operating voltage Ue |
120 V
|
|---|---|
| Voltage type for actuating |
AC
|
| Sound module rating |
Level-1 sound module: 20000 h
|
| Tone frequency |
Level-1 module: preset at 2400 Hz or 3300 Hz
|
| Flashing and tone frequency for steady Incandescent/ with sound |
Level-1 module: sound pulsing frequency 1.5 Hz
|
| Lamp life rating |
Level-1 incandescent module: 8000h @ 12V AC/DC
|
| Voltage |
120V AC full voltage
|
| Operating voltage |
120V AC (±10%) @ AC, 60 Hz
|
| Current consumption |
Level-1 module: 78mA @ 120V AC
|
| Network option |
Standard
|
| Leakage current impact |
Can absorb up to 3 mA of leakage current from solid-state outputs without module activation.
|
| Communication rate options |
125K, 250K, 500K, autobaud
|
| Housing color |
Black
|
|---|---|
| Base type |
Vertical mount (includes cap)
|
| Level-1 lens color |
Red
|
| Level-2 lens color |
No module
|
| Level-3 lens color |
No module
|
| Level-4 lens color |
No module
|
| Level-5 lens color |
No module
|
| Level-5 module type |
No module
|
| Level-1 module type |
Steady incandescent & sound
|
| Level-2 module type |
No module
|
| Level-3 module type |
No module
|
| Level-4 module type |
No module
|
| Function continuous light |
True
|
| Operating temperature |
-25 °C
|
|---|---|
| Storage temperature |
-40 °C
|
| Materials |
Surface and vertical-mount pole connection box and magnetic mount housing: Polycarbonate
|
|---|
