855TV-B10B4

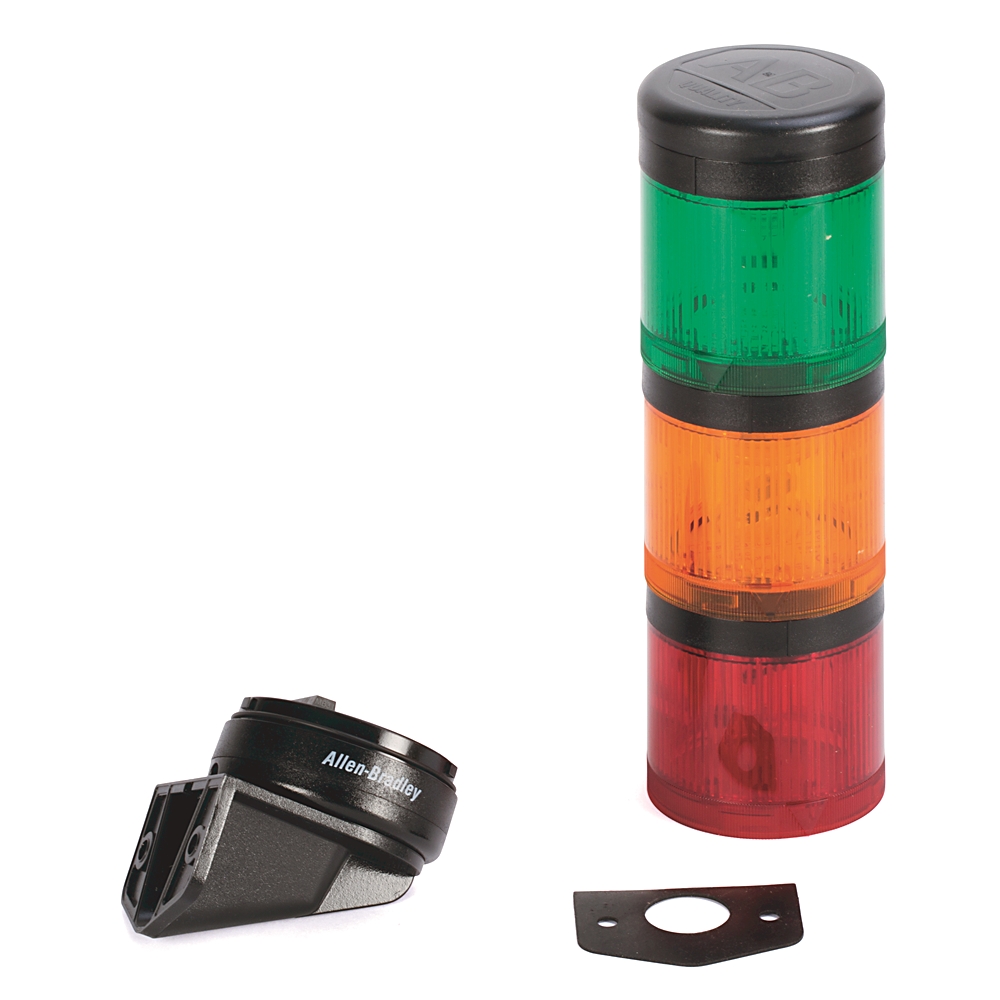

Vertical Mount Signaling Device
Rockwell Automation announces that as of October 01, 2019, the Vertical Mount Signaling Device will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
October 01, 2019
Replacement Category:
Functional Replacement
Replacement Product:
856TC-VMBA3B4
[https://www.rockwellautomation.com/en-us/products/details.856TC-VMBA3B4.html]
Product at a glance
Rockwell Automation announces that as of October 01, 2019, the Vertical Mount Signaling Device will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
October 01, 2019
Replacement Category:
Functional Replacement
Replacement Product:
856TC-VMBA3B4
[https://www.rockwellautomation.com/en-us/products/details.856TC-VMBA3B4.html]
Product at a glance
| Outer diameter |
70 mm
|
|---|---|
| Degree of protection (NEMA) |
4X
|
| Degree of protection (IP) |
IP65
|
| Recommended wire size |
0.5 mm²
|
| Recommended terminal torque |
0.8 Nm
|
| Shock |
5 module stack: 35 G (surface-mount base or 10 cm aluminum pole base)
|
| Vibration |
5 module stack: 0.75 G (surface-mount base or 10 cm aluminum pole base)
|
| Rated operating voltage Ue |
120 V
|
|---|---|
| Voltage type for actuating |
AC
|
| Lamp life rating |
Level-1 strobe module: 15000 h
|
| Light output |
Level-1 module: 3 J per lA
|
| Voltage |
120V AC full voltage
|
| Flashing frequency for LED strobe modules |
Level-1 module: 2 Hz (flash duration 1/50,000 s)
|
| Operating voltage |
120V AC (±10%) @ AC, 60 Hz
|
| Current consumption |
Level-1 module: 50mA @ 120V AC
|
| Network option |
Standard
|
| Leakage current impact |
Can absorb up to 3 mA of leakage current from solid-state outputs without module activation.
|
| Communication rate options |
125K, 250K, 500K, autobaud
|
| Housing color |
Black
|
|---|---|
| Base type |
Vertical mount (includes cap)
|
| Level-1 lens color |
Red
|
| Level-2 lens color |
No module
|
| Level-3 lens color |
No module
|
| Level-4 lens color |
No module
|
| Level-5 lens color |
No module
|
| Level-5 module type |
No module
|
| Level-1 module type |
Strobe xenon
|
| Level-2 module type |
No module
|
| Level-3 module type |
No module
|
| Level-4 module type |
No module
|
| Operating temperature |
-25 °C
|
|---|---|
| Storage temperature |
-40 °C
|
| Materials |
Surface and vertical-mount pole connection box and magnetic mount housing: Polycarbonate
|
|---|
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
- CE
- MOROCCO DOC
This product was certified with the above certifications as of 2025-09-10. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Outer diameter |
70 mm
|
|---|---|
| Degree of protection (NEMA) |
4X
|
| Degree of protection (IP) |
IP65
|
| Recommended wire size |
0.5 mm²
|
| Recommended terminal torque |
0.8 Nm
|
| Shock |
5 module stack: 35 G (surface-mount base or 10 cm aluminum pole base)
|
| Vibration |
5 module stack: 0.75 G (surface-mount base or 10 cm aluminum pole base)
|
| Rated operating voltage Ue |
120 V
|
|---|---|
| Voltage type for actuating |
AC
|
| Lamp life rating |
Level-1 strobe module: 15000 h
|
| Light output |
Level-1 module: 3 J per lA
|
| Voltage |
120V AC full voltage
|
| Flashing frequency for LED strobe modules |
Level-1 module: 2 Hz (flash duration 1/50,000 s)
|
| Operating voltage |
120V AC (±10%) @ AC, 60 Hz
|
| Current consumption |
Level-1 module: 50mA @ 120V AC
|
| Network option |
Standard
|
| Leakage current impact |
Can absorb up to 3 mA of leakage current from solid-state outputs without module activation.
|
| Communication rate options |
125K, 250K, 500K, autobaud
|
| Housing color |
Black
|
|---|---|
| Base type |
Vertical mount (includes cap)
|
| Level-1 lens color |
Red
|
| Level-2 lens color |
No module
|
| Level-3 lens color |
No module
|
| Level-4 lens color |
No module
|
| Level-5 lens color |
No module
|
| Level-5 module type |
No module
|
| Level-1 module type |
Strobe xenon
|
| Level-2 module type |
No module
|
| Level-3 module type |
No module
|
| Level-4 module type |
No module
|
| Operating temperature |
-25 °C
|
|---|---|
| Storage temperature |
-40 °C
|
| Materials |
Surface and vertical-mount pole connection box and magnetic mount housing: Polycarbonate
|
|---|
