855TP-G10H4

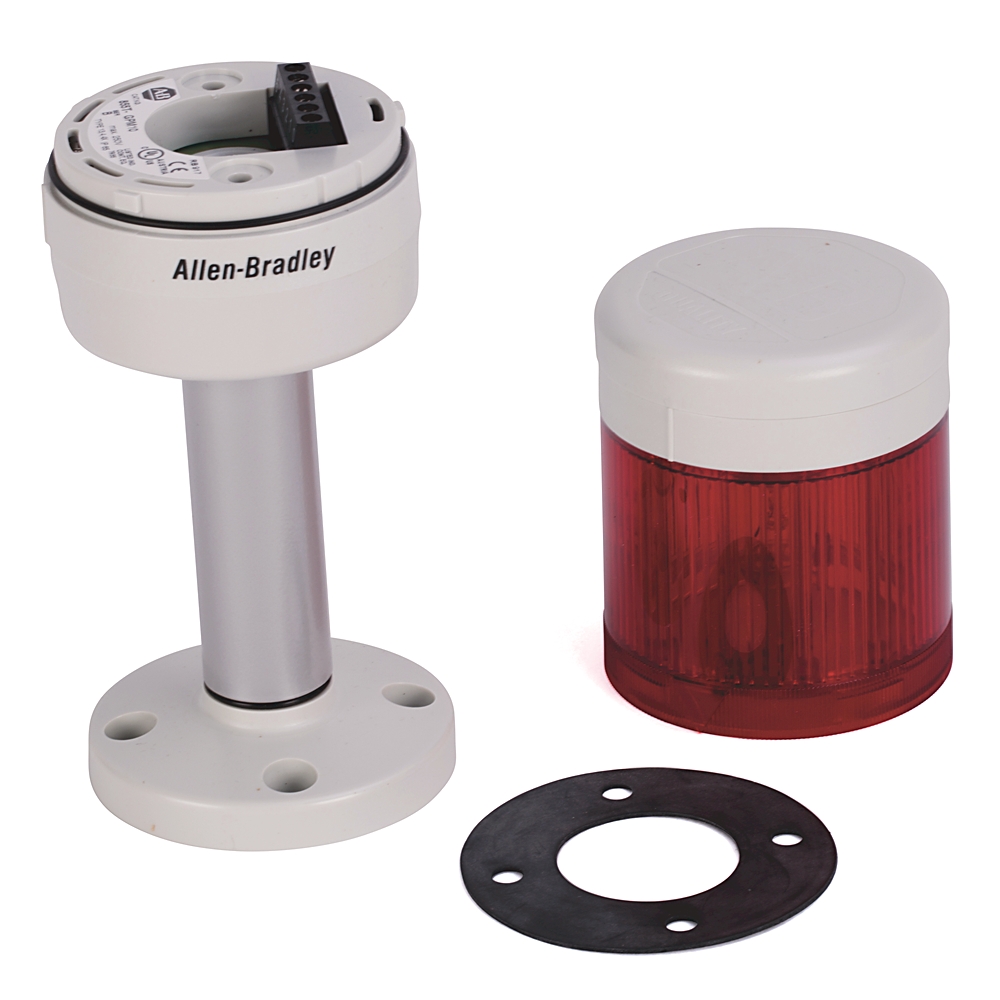

10cm Pole Mount Signaling Device
Rockwell Automation announces that as of October 01, 2019, the 10cm Pole Mount Signaling Device will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
October 01, 2019
Replacement Category:
Functional Replacement
Replacement Product:
856TC-P10BA3B4P1
[https://www.rockwellautomation.com/en-us/products/details.856TC-P10BA3B4P1.html]
Product at a glance
Rockwell Automation announces that as of October 01, 2019, the 10cm Pole Mount Signaling Device will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
October 01, 2019
Replacement Category:
Functional Replacement
Replacement Product:
856TC-P10BA3B4P1
[https://www.rockwellautomation.com/en-us/products/details.856TC-P10BA3B4P1.html]
Product at a glance
| Outer diameter |
70 mm
|
|---|---|
| Degree of protection (NEMA) |
4X
|
| Degree of protection (IP) |
IP65
|
| Recommended wire size |
0.5 mm²
|
| Recommended terminal torque |
0.8 Nm
|
| Shock |
5 module stack: 35 G (surface-mount base or 10 cm aluminum pole base)
|
| Vibration |
5 module stack: 0.75 G (surface-mount base or 10 cm aluminum pole base)
|
| Decibel rating |
Piezo light modules and light modules/with sound: high 107 dB/low 95 dB, selectable via DIP switch (set at continuous or pulsing tone, determined at a distance of 1 m from the sound module)
|
| Rated operating voltage Ue |
120 V
|
|---|---|
| Voltage type for actuating |
AC
|
| Sound module rating |
Level-1 sound module: 20000 h
|
| Tone frequency |
Level-1 module: preset at 2400 Hz or 3300 Hz
|
| Lamp life rating |
Level-1 incandescent module: 8000h @ 12V AC/DC
|
| Voltage |
120V AC full voltage
|
| Operating voltage |
120V AC (±10%) @ AC, 60 Hz
|
| Current consumption |
Level-1 module: 78mA @ 120V AC
|
| Network option |
Standard
|
| Leakage current impact |
Can absorb up to 3 mA of leakage current from solid-state outputs without module activation.
|
| Communication rate options |
125K, 250K, 500K, autobaud
|
| Flashing and tone pulsing frequency for flashing Incandescent/with sound |
Flashing and pulsing frequency the same for 12V module approximately 1.5 Hz, for 24V @ 120V, and 240V modules approximately 1.6 Hz
|
| Housing color |
Grey
|
|---|---|
| Base type |
10 cm pole mount (includes cap)
|
| Level-1 lens color |
Red
|
| Level-2 lens color |
No module
|
| Level-3 lens color |
No module
|
| Level-4 lens color |
No module
|
| Level-5 lens color |
No module
|
| Level-5 module type |
No module
|
| Level-1 module type |
Flashing incandescent & sound
|
| Level-2 module type |
No module
|
| Level-3 module type |
No module
|
| Level-4 module type |
No module
|
| Function flashlight |
True
|
| Flashing light |
True
|
| Operating temperature |
-25 °C
|
|---|---|
| Storage temperature |
-40 °C
|
| Materials |
Surface and vertical-mount pole connection box and magnetic mount housing: Polycarbonate
|
|---|
| General | Publication |
|---|---|
| Product Cutsheet | -- |
| Technical Data | Publication |
|---|---|
| 855-td001_-en-p | 855-TD001 |
