855TP-B24Y8A1

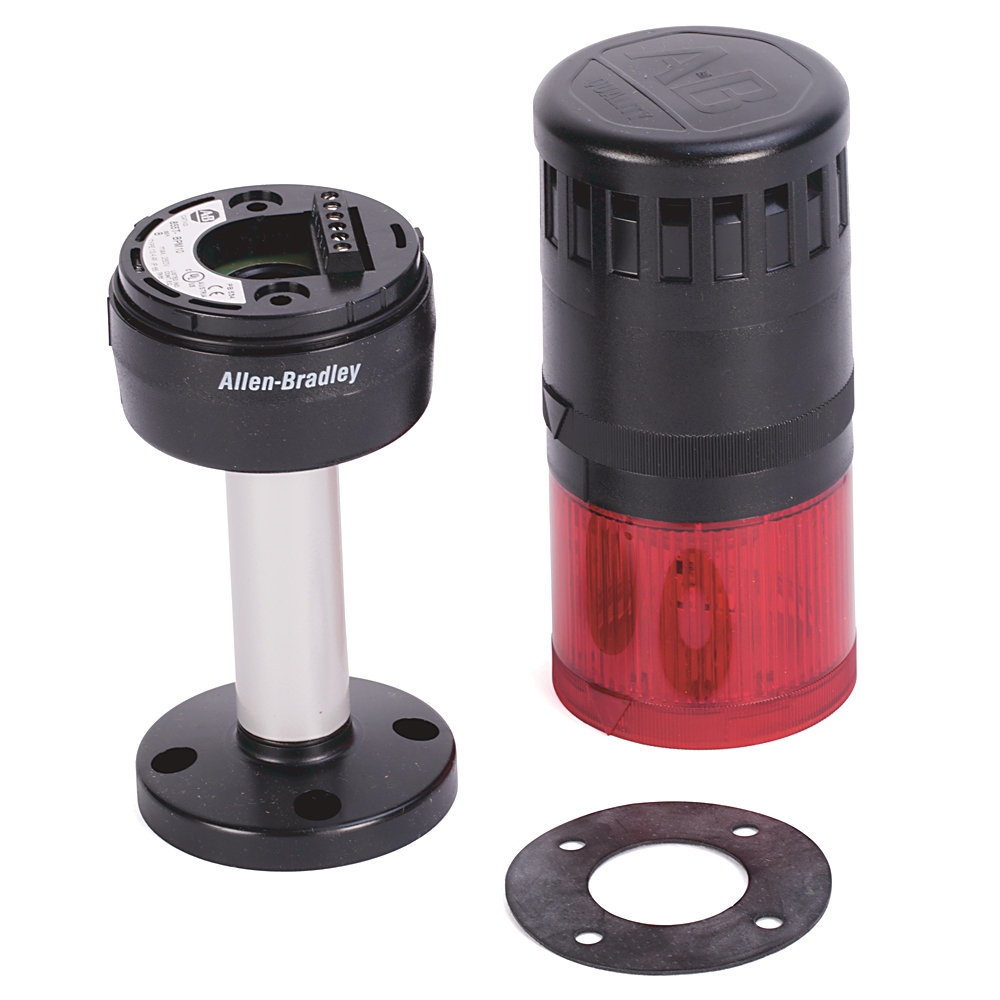

Configured Stack Light Signaling Device

Name: 855TP-B24Y8A1
Brand: Rockwell Automation

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of October 01, 2019, the Configured Stack Light Signaling Device will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: October 01, 2019 Replacement Category: Functional Replacement

Lifecycle status: Discontinued

Discontinued Date: October 01, 2019 Replacement Category: Functional Replacement

Outer diameter	70 mm
Degree of protection (NEMA)	4X
Degree of protection (IP)	IP65
Recommended wire size	0.5 mm²
Recommended terminal torque	0.8 Nm
Shock	5 module stack: 35 G (surface-mount base or 10 cm aluminum pole base)
Vibration	5 module stack: 0.75 G (surface-mount base or 10 cm aluminum pole base)
Decibel rating	Selectable tone sound module: maximum volume ranges from 64...103 dBa (volume adjustable), Based on tone that is selected for all settings except signal horn, which has a maximum of 80 dBa, (determined at a distance of 1 m from the sound module)

Rated operating voltage Ue	24 V
Voltage type for actuating	AC/DC
Sound module rating	Level-2 sound module: 20000 h
Lamp life rating	Level-1 LED module: 10000 h
Light output	Level-1 module, Yellow LED: 900...1800 mcd
Voltage	24V AC/DC full voltage
Operating voltage	24V (±10%) @ AC/DC
Current consumption	Level-2 module: 65mA @ 24V AC/DC
Network option	Standard
Leakage current impact	Can absorb up to 3 mA of leakage current from solid-state outputs without module activation.
Communication rate options	125K, 250K, 500K, autobaud

Housing color	Black
Base type	10 cm pole mount (includes cap)
Level-1 lens color	Yellow
Level-2 lens color	None (sound only)
Level-3 lens color	No module
Level-4 lens color	No module
Level-5 lens color	No module
Level-5 module type	No module
Level-1 module type	Steady LED lA module
Level-2 module type	Single tone sound module
Level-3 module type	No module
Level-4 module type	No module
Function continuous light	True

Operating temperature	-25 °C
Storage temperature	-40 °C

Materials	Surface and vertical-mount pole connection box and magnetic mount housing: Polycarbonate

General	Publication
Product Cutsheet	--

Technical Data	Publication
855-td001_-en-p	855-TD001
