855TE-B24Y4A1

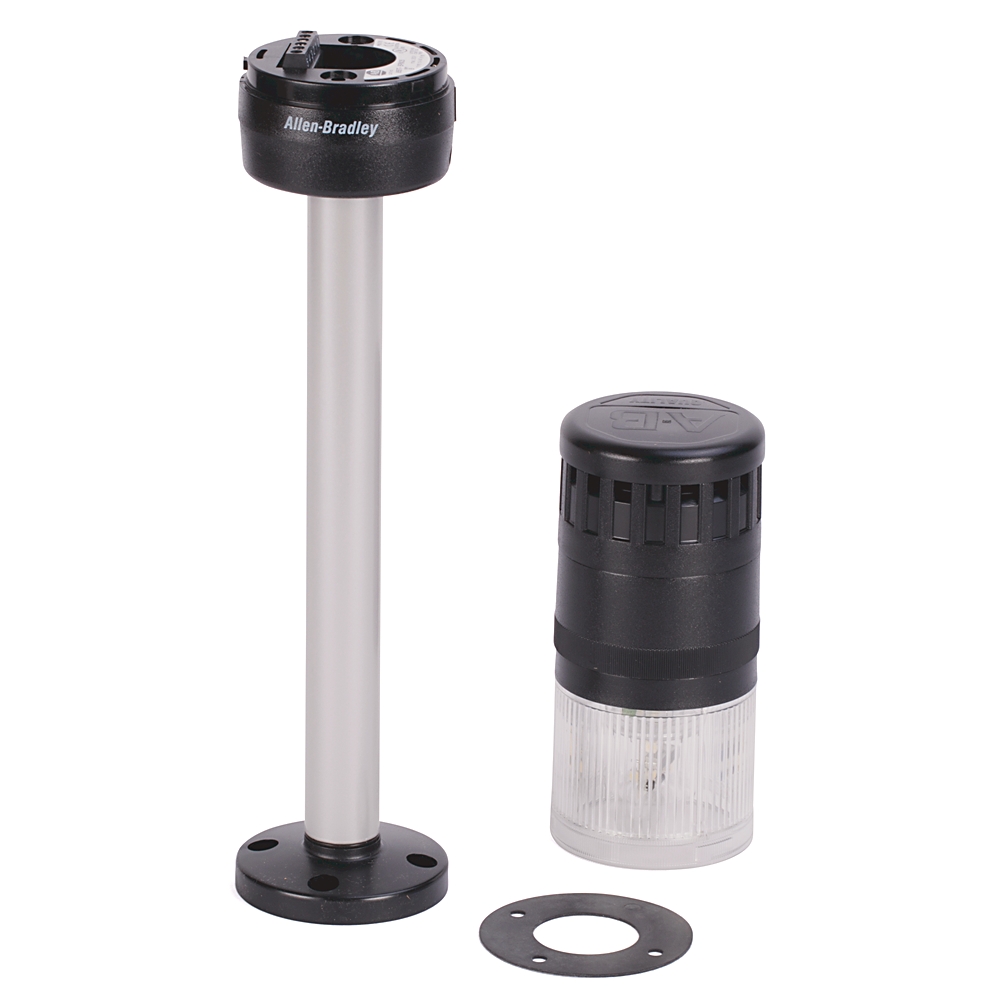

25cm Pole Mount Signaling Device

Name: 25cm Pole Mount Signaling Device
Brand: Rockwell Automation
SKU: 855TE-B24Y4A1

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of October 01, 2019, the 25cm Pole Mount Signaling Device will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: October 01, 2019 Replacement Category: Functional Replacement Replacement Product: 856TC-P25B24Y4T1 [https://www.rockwellautomation.com/en-us/products/details.856TC-P25B24Y4T1.html]

Product at a glance

Replacement Available

Lifecycle status: Discontinued

Product at a glance

Replacement Available

Description

Product discontinued. Pre-Assembled Ctl. Tower, 25cm Pole Mount with Cap, Black Housing, 24V AC/DC Full Voltage, Red Steady LED, Single Tone Sound Module

Unique Product Identifier	855TE-B24Y4A1
UPC	611320457834
Estimated Lead Time	42 days
Country of Origin	Austria

Outer diameter	70 mm
Degree of protection (NEMA)	4X
Degree of protection (IP)	IP65
Recommended wire size	0.5 mm²
Recommended terminal torque	0.8 Nm
Shock	5 module stack: 35 G (surface-mount base or 10 cm aluminum pole base)
Vibration	5 module stack: 0.75 G (surface-mount base or 10 cm aluminum pole base)
Decibel rating	Selectable tone sound module: maximum volume ranges from 64...103 dBa (volume adjustable), Based on tone that is selected for all settings except signal horn, which has a maximum of 80 dBa, (determined at a distance of 1 m from the sound module)

Rated operating voltage Ue	24 V
Voltage type for actuating	AC/DC
Sound module rating	Level-2 sound module: 20000 h
Lamp life rating	Level-1 LED module: 10000 h
Light output	Level-1 module, Yellow LED: 900...1800 mcd
Voltage	24V AC/DC full voltage
Operating voltage	24V (±10%) @ AC/DC
Current consumption	Level-2 module: 65mA @ 24V AC/DC
Network option	Standard
Leakage current impact	Can absorb up to 3 mA of leakage current from solid-state outputs without module activation.
Communication rate options	125K, 250K, 500K, autobaud

Housing color	Black
Base type	25 cm pole mount (includes cap)
Level-1 lens color	Red
Level-2 lens color	None (sound only)
Level-3 lens color	No module
Level-4 lens color	No module
Level-5 lens color	No module
Level-5 module type	No module
Level-1 module type	Steady LED lA module
Level-2 module type	Single tone sound module
Level-3 module type	No module
Level-4 module type	No module
Function continuous light	True

Operating temperature	-25 °C
Storage temperature	-40 °C

Materials	Surface and vertical-mount pole connection box and magnetic mount housing: Polycarbonate

General	Publication
Product Cutsheet	--

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	855TE-B24Y4A1
UPC	611320457834
Estimated Lead Time	42 days
Country of Origin	Austria

Technical Specifications

Outer diameter	70 mm
Degree of protection (NEMA)	4X
Degree of protection (IP)	IP65
Recommended wire size	0.5 mm²
Recommended terminal torque	0.8 Nm
Shock	5 module stack: 35 G (surface-mount base or 10 cm aluminum pole base)
Vibration	5 module stack: 0.75 G (surface-mount base or 10 cm aluminum pole base)
Decibel rating	Selectable tone sound module: maximum volume ranges from 64...103 dBa (volume adjustable), Based on tone that is selected for all settings except signal horn, which has a maximum of 80 dBa, (determined at a distance of 1 m from the sound module)

Rated operating voltage Ue	24 V
Voltage type for actuating	AC/DC
Sound module rating	Level-2 sound module: 20000 h
Lamp life rating	Level-1 LED module: 10000 h
Light output	Level-1 module, Yellow LED: 900...1800 mcd
Voltage	24V AC/DC full voltage
Operating voltage	24V (±10%) @ AC/DC
Current consumption	Level-2 module: 65mA @ 24V AC/DC
Network option	Standard
Leakage current impact	Can absorb up to 3 mA of leakage current from solid-state outputs without module activation.
Communication rate options	125K, 250K, 500K, autobaud

Housing color	Black
Base type	25 cm pole mount (includes cap)
Level-1 lens color	Red
Level-2 lens color	None (sound only)
Level-3 lens color	No module
Level-4 lens color	No module
Level-5 lens color	No module
Level-5 module type	No module
Level-1 module type	Steady LED lA module
Level-2 module type	Single tone sound module
Level-3 module type	No module
Level-4 module type	No module
Function continuous light	True

Operating temperature	-25 °C
Storage temperature	-40 °C

Materials	Surface and vertical-mount pole connection box and magnetic mount housing: Polycarbonate
