855TC-B10D4B4A1

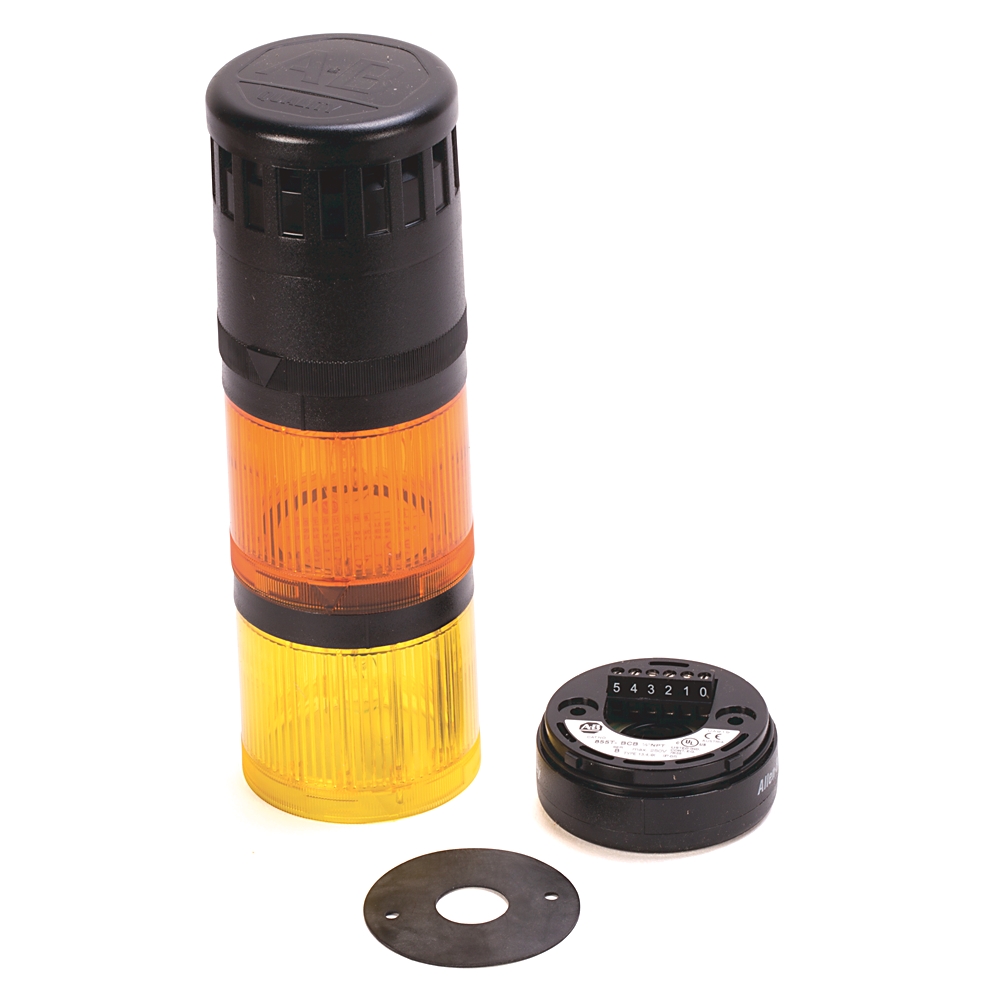

Configured Stack Light Signaling Device
Rockwell Automation announces that as of October 01, 2019, the Configured Stack Light Signaling Device will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
October 01, 2019
Replacement Category:
Functional Replacement
Rockwell Automation announces that as of October 01, 2019, the Configured Stack Light Signaling Device will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
October 01, 2019
Replacement Category:
Functional Replacement
| Outer diameter |
70 mm
|
|---|---|
| Degree of protection (NEMA) |
4X
|
| Degree of protection (IP) |
IP65
|
| Recommended wire size |
0.5 mm²
|
| Recommended terminal torque |
0.8 Nm
|
| Shock |
5 module stack: 35 G (surface-mount base or 10 cm aluminum pole base)
|
| Vibration |
5 module stack: 0.75 G (surface-mount base or 10 cm aluminum pole base)
|
| Decibel rating |
Selectable tone sound module: maximum volume ranges from 64...103 dBa (volume adjustable), Based on tone that is selected for all settings except signal horn, which has a maximum of 80 dBa, (determined at a distance of 1 m from the sound module)
|
| Rated operating voltage Ue |
120 V
|
|---|---|
| Voltage type for actuating |
AC
|
| Sound module rating |
Level-3 sound module: 20000 h
|
| Lamp life rating |
Level-2 strobe module: 15000 h
|
| Light output |
Level-2 module: 3 J per lA
|
| Voltage |
120V AC full voltage
|
| Flashing frequency for LED strobe modules |
Level-2 module: 2 Hz (flash duration 1/50,000 s)
|
| Operating voltage |
120V AC (±10%) @ AC, 60 Hz
|
| Current consumption |
Level-3 module: 65mA @ 24V AC/DC
|
| Network option |
Standard
|
| Leakage current impact |
Can absorb up to 3 mA of leakage current from solid-state outputs without module activation.
|
| Communication rate options |
125K, 250K, 500K, autobaud
|
| Housing color |
Black
|
|---|---|
| Base type |
Surface/1/2 in NPT conduit mount with cap
|
| Level-1 lens color |
Red
|
| Level-2 lens color |
Red
|
| Level-3 lens color |
None (sound only)
|
| Level-4 lens color |
No module
|
| Level-5 lens color |
No module
|
| Level-5 module type |
No module
|
| Level-1 module type |
Steady incandescent module
|
| Level-2 module type |
Strobe xenon
|
| Level-3 module type |
Single tone sound module
|
| Level-4 module type |
No module
|
| Function continuous light |
True
|
| Operating temperature |
-25 °C
|
|---|---|
| Storage temperature |
-40 °C
|
| Materials |
Surface and vertical-mount pole connection box and magnetic mount housing: Polycarbonate
|
|---|
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
