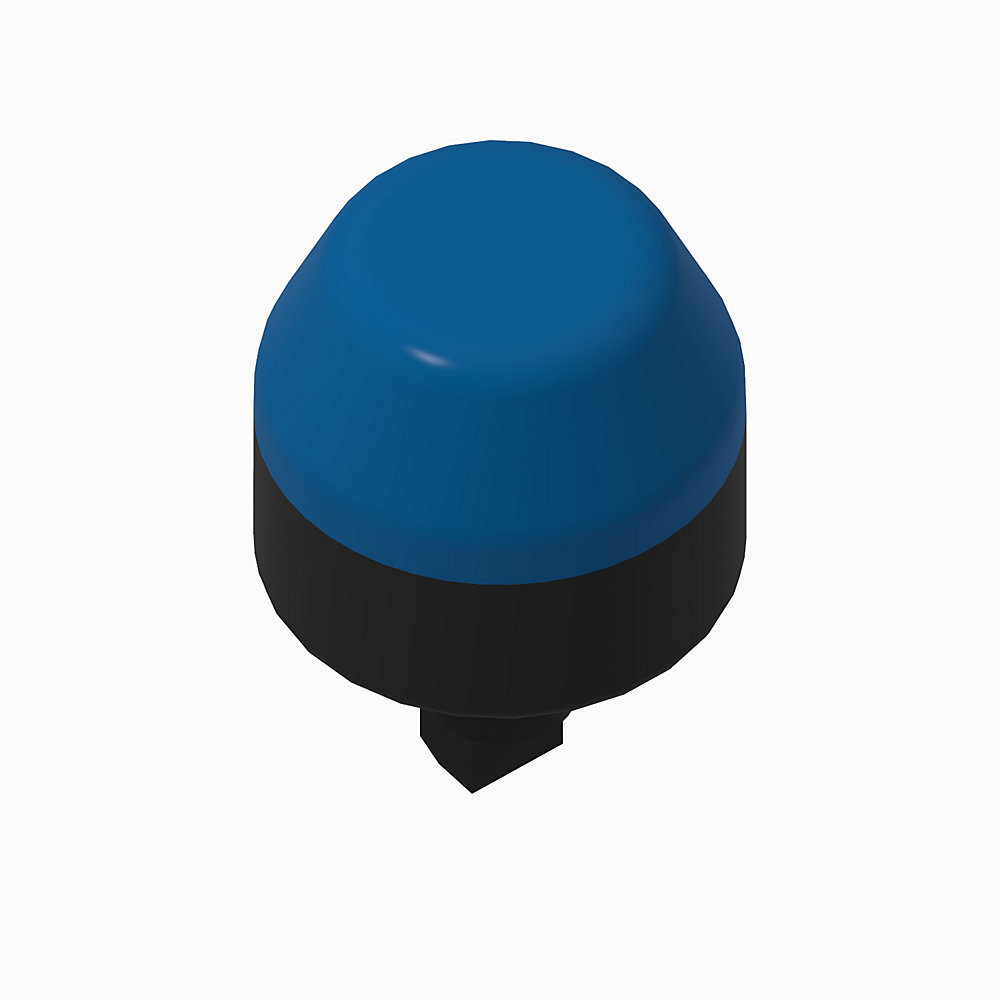

| Lens Color | Blue |
|---|
| Degree of protection (NEMA) | 4X |
|---|---|
| Degree of protection (IP) | IP65 |
| Operating temperature | -25 °F |
| Storage temperature | -25 °F |
| List of degrees of protection (IP) | IP65, IP2X |
| List of degrees of protection (NEMA) | 4, 4X, 13 |
| Suitable for wall mounting | False |
|---|---|
| Suitable for ceiling mounting | False |
| Mounting method | Other |
| Lens color | Blue |
| Housing base material | Polycarbonate |
| Mounting hole | 22.5 mm round mounting hole |
| Terminals | Plug-in terminal block, up to 2.5 mm² (14 AWG), IP2X |
| Mounting | Central mounting for bore holes 22 mm or 30.5 mm with hole adapter kit |
| Housing color | Black |
| Housing lenses | Polycarbonate |
| Type of current | AC |
|---|---|
| Nominal voltage | 240 V |
| Flash energy | 1 j |
| Supply voltage | 230/240V (±10%) AC 50/60 Hz |
| Nominal current | 20mA @ 230/240V AC, 50/60 Hz |
| With contact | False |
| Flashing frequency, min | 1.4 Hz |
| Turn-ON leakage current | ≥3 mA |
| Lamp type | Xenon |
|---|---|
| Height | 85 mm |
| Weight | 80 g |
| Size | 65 mm diam |
| Mounting nut torque | 1.7 nm |
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 7.112 |
| Lead Time | 26 |
| Dimension Width | 8.407 |
| Dimension Length | 7.01 |
| Stock Status | NON_STOCKED |
| Weight | 0.104 |
| Weight Unit | KG |
| Dimension Unit | CM |
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
