| Degree of protection (NEMA) | 4X |
|---|---|
| Degree of protection (IP) | IP65 |
| Operating temperature | -25 °F |
| Storage temperature | -25 °F |
| List of degrees of protection (IP) | IP65, IP2X |
| List of degrees of protection (NEMA) | 4, 4X, 13 |
| Suitable for wall mounting | No |
|---|---|
| Suitable for ceiling mounting | No |
| First color selection | Green |
| Second color selection | Yellow |
| Housing base material | Polycarbonate, black |
| Mounting hole | 22.5 mm round mounting hole |

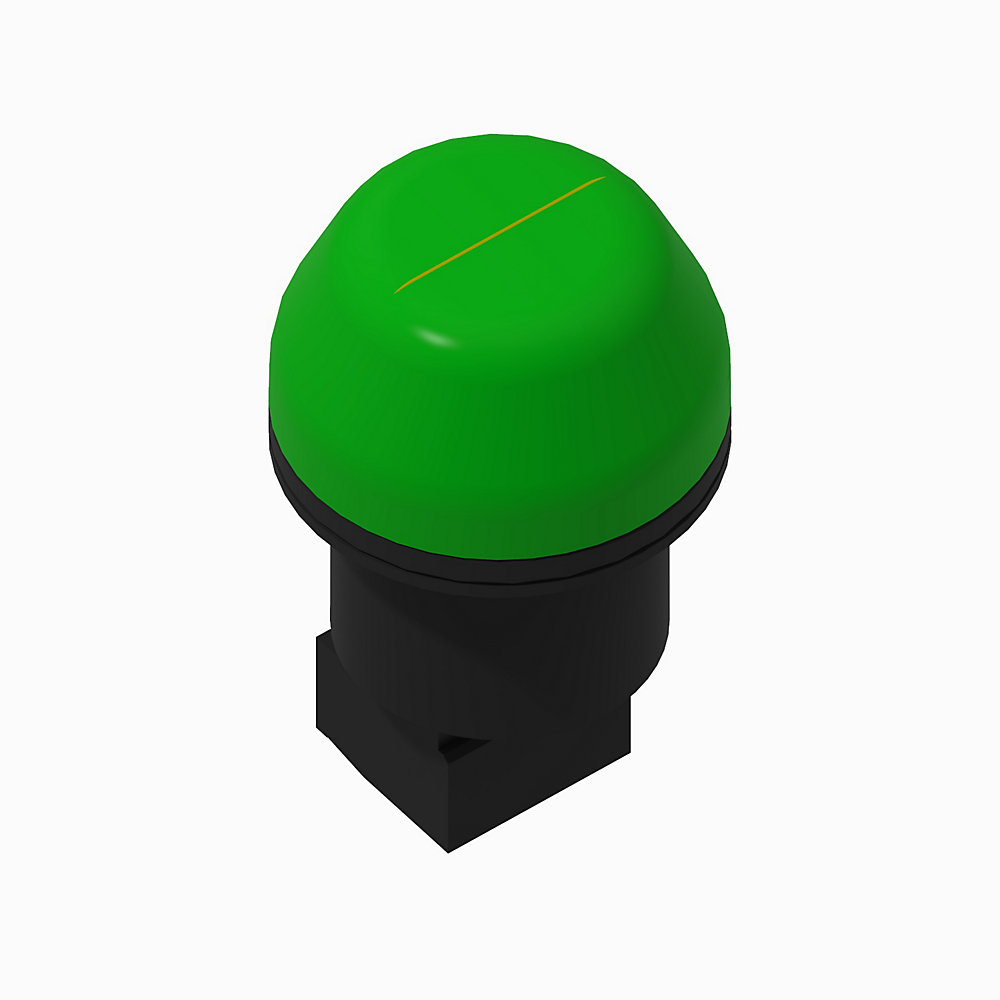

| Function | Two-color, full-lens illumination |
| Terminals | Plug-in terminal block, up to 2.5 mm² (14 AWG), IP2X |
| Mounting | Central mounting for bore holes 22 mm or 30.5 mm with hole adapter kit (catalog number 855P-AHA1) |
| Housing color | Black |
| Housing lenses | Polycarbonate |
| Lamp type | LED |
|---|---|
| Height | 49 mm |
| Weight | 40 g |
| Size | 30 mm diam |
| Mounting nut torque | 1.7 nm |
| Nominal voltage | 24 V |
|---|---|
| Flashing frequency | 2 Hz |
| Nominal current | 28mA @ 24V AC/DC, 50/60 Hz |
| With contact | No |
| Supply voltage range | ±10% |
| Turn-ON leakage current | ≥3 mA |
| Steady/flashing light | Externally by terminal connection |
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 5.715 |
| Lead Time | 5 |
| Dimension Width | 8.255 |
| Dimension Length | 5.715 |
| Stock Status | NON_STOCKED |
| Weight | 38.555 |
| Weight Unit | G |
| Dimension Unit | CM |
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| Technical Data | 855-td001_-en-p | 855-TD001 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
Sign in to your Rockwell Automation account to view Knowledgebase Articles.
Sign In
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Degree of protection (NEMA) | 4X |
|---|---|
| Degree of protection (IP) | IP65 |
| Operating temperature | -25 °F |
| Storage temperature | -25 °F |
| List of degrees of protection (IP) | IP65, IP2X |
| List of degrees of protection (NEMA) | 4, 4X, 13 |
| Suitable for wall mounting | No |
|---|---|
| Suitable for ceiling mounting | No |
| First color selection | Green |
| Second color selection | Yellow |
| Housing base material | Polycarbonate, black |
| Mounting hole | 22.5 mm round mounting hole |
| Function | Two-color, full-lens illumination |
| Terminals | Plug-in terminal block, up to 2.5 mm² (14 AWG), IP2X |
| Mounting | Central mounting for bore holes 22 mm or 30.5 mm with hole adapter kit (catalog number 855P-AHA1) |
| Housing color | Black |
| Housing lenses | Polycarbonate |
| Lamp type | LED |
|---|---|
| Height | 49 mm |
| Weight | 40 g |
| Size | 30 mm diam |
| Mounting nut torque | 1.7 nm |
| Nominal voltage | 24 V |
|---|---|
| Flashing frequency | 2 Hz |
| Nominal current | 28mA @ 24V AC/DC, 50/60 Hz |
| With contact | No |
| Supply voltage range | ±10% |
| Turn-ON leakage current | ≥3 mA |
| Steady/flashing light | Externally by terminal connection |
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 5.715 |
| Lead Time | 5 |
| Dimension Width | 8.255 |
| Dimension Length | 5.715 |
| Stock Status | NON_STOCKED |
| Weight | 38.555 |
| Weight Unit | G |
| Dimension Unit | CM |
Drawings
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
Documents
|
Product Cutsheet
General
-- |
|
855-td001_-en-p
Technical Data
855-TD001 |
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| Technical Data | 855-td001_-en-p | 855-TD001 |
