855PD-B24MEF3522

2 Ckt Panel Mount Alarm 2 Ckt Panel Moun

Serial #:
This product has not been verified. Please register your product to confirm authenticity.
  • alt text
alt text
Chevron LeftChevron Left
alt text
Chevron LeftChevron Left
2019_AB_Logo
Lifecycle status: Active
Lifecycle status: Active
Description

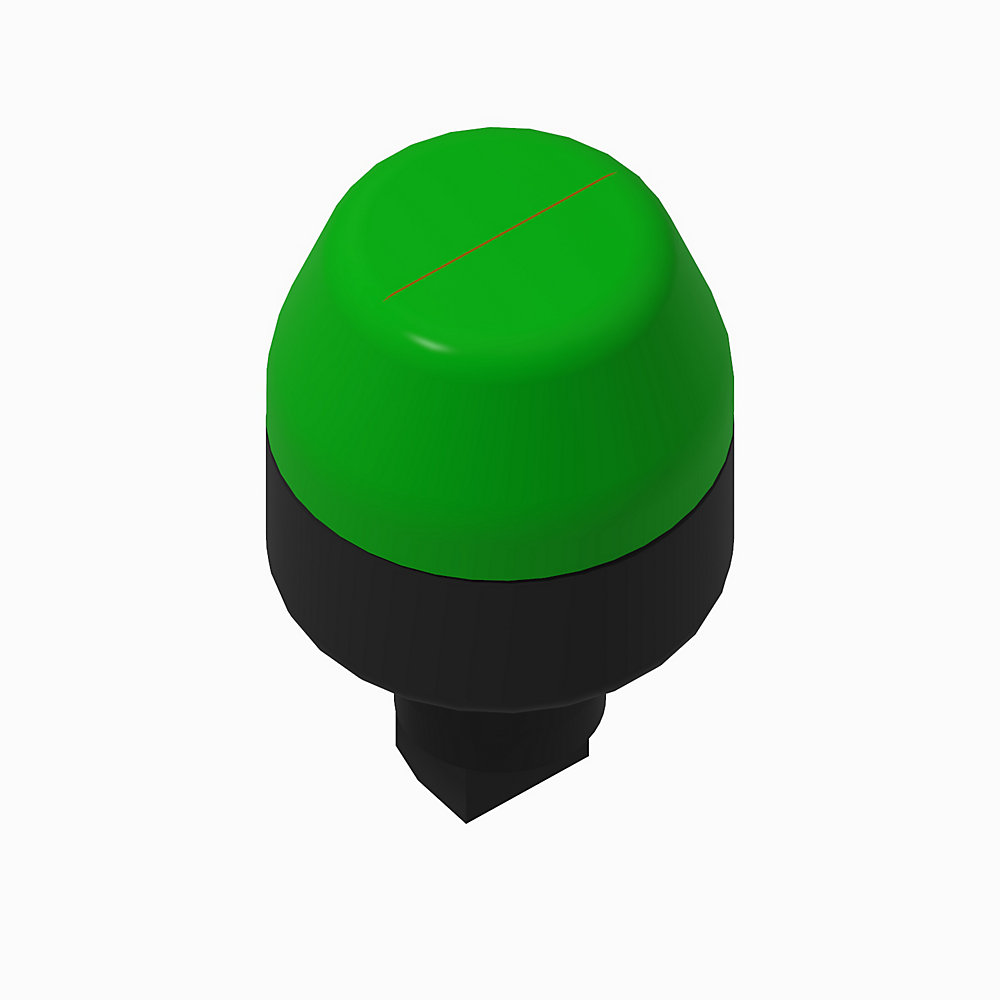

855PD Panel Mount Dual Circuit Alarms, Black Housing, 24V AC/DC, 45 mm, Full Lens Illumination, Green Lens, Amber Lens, 22.5 mm
  • Add to BOM
  • Get support
Find your nearest distributor
Contact your distributor in {0}
Change location
PhonePhone
Find a partner
Overview
Technical Specifications
Environmental
Construction
Mechanical
Electrical
Drawings
Documents
Accessories
Alternative Products
Technotes
Unique Product Identifier
855PD-B24MEF3522
UPC
662074093434
Estimated Lead Time
42 days
Country of Origin
Austria
Degree of protection (NEMA)
4X
Degree of protection (IP)
IP65
Operating temperature
-25 °F
Storage temperature
-25 °F
List of degrees of protection (IP)
IP65, IP2X
List of degrees of protection (NEMA)
4, 4X, 13
Suitable for wall mounting
False
Suitable for ceiling mounting
False
First color selection
Green
Second color selection
Amber
Housing base material
Polycarbonate, black
Mounting hole
22.5 mm round mounting hole
Function
Two-color, full-lens illumination
Terminals
Plug-in terminal block, up to 2.5 mm² (14 AWG), IP2X
Mounting
Central mounting for bore holes 22 mm or 30.5 mm with hole adapter kit (catalog number 855P-AHA1)
Housing color
Black
Housing lenses
Polycarbonate
Lamp type
LED
Height
72 mm
Weight
40 g
Size
45 mm diam
Mounting nut torque
1.7 nm
Flashing frequency
2 Hz
Nominal current
46mA @ 24V AC/DC, 50/60 Hz
With contact
False
Supply voltage range
±10%
Turn-ON leakage current
≥3 mA
Steady/flashing light
Externally by terminal connection
Drawings
3D STEP Model (STP) Download (ZIP)
Product Drawing Drawing (DXF)
Drawings
3D STEP Model (STP) Download (ZIP)
Product Drawing Drawing (DXF)
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
General Publication
Product Cutsheet --
Technical Data Publication
855-td001_-en-p 855-TD001
