855D-T10SC20B10Y4Y8C1

30 mm Stack Light

Name: 30 mm Stack Light
Brand: Rockwell Automation
SKU: 855D-T10SC20B10Y4Y8C1

Serial #:

Lifecycle status: Active

Description

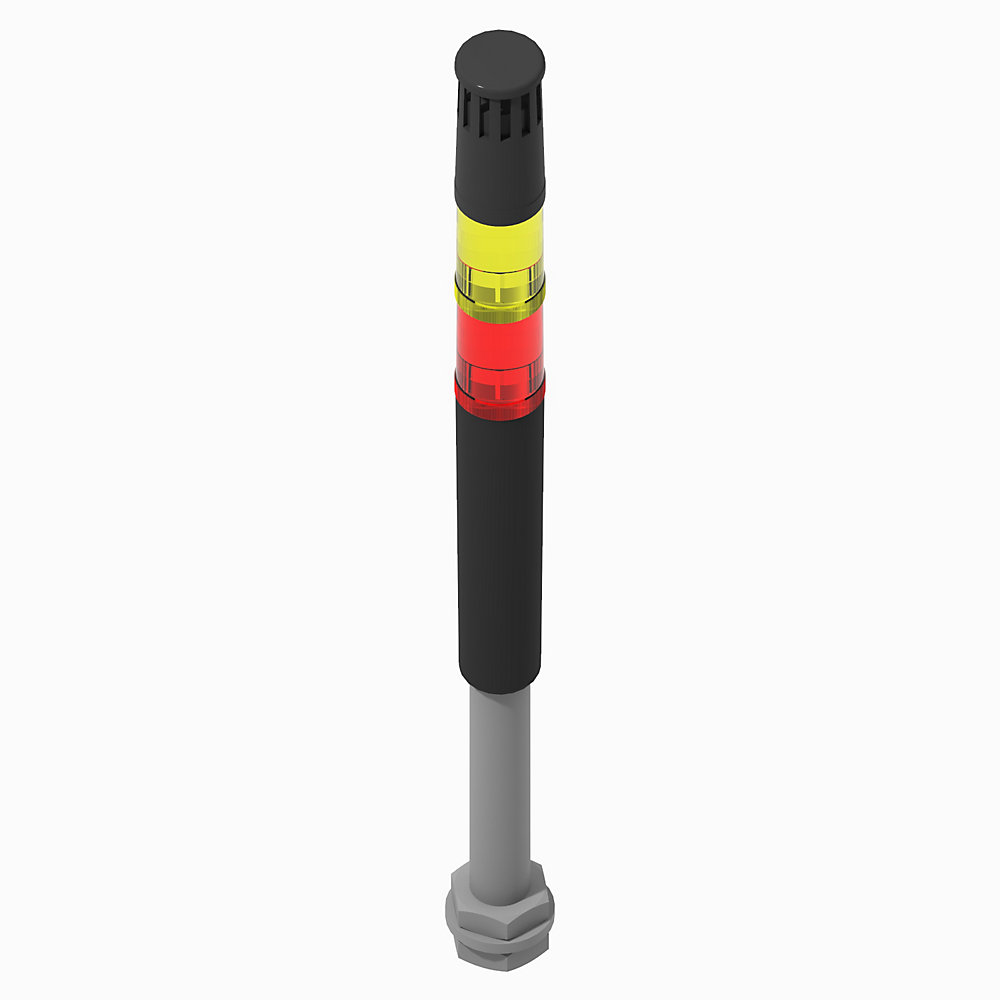

Compact Tower Light, 30 mm, Metric (M20) Threaded Tube For Direct Mount, 10cm, No Network Option, Stranded Cable, 2 meter, Yellow Jacket, Black, 120V AC, Red Steady LED, Yellow Steady LED, None Sound Alarm - Continous Tone, No Lens No Module, No Lens No Module

Lifecycle status: Active

Description

Unique Product Identifier	855D-T10SC20B10Y4Y8C1
UPC	662074452118
Estimated Lead Time	30 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Mechanical

Decibel rating	Piezo sound module: 85 dBa (+2 dB/-5 dB)
Degree of protection (IP)	IP65
Degree of protection (NEMA)	4X
List of degrees of protection (NEMA)	4, 4X, 13
Loudness	85 dBb
Outer diameter	30 mm

Construction

Cable length and termination	2 m, flying leads, Yellow jacket
Function continuous light	True
Housing color	Black
Level-1 lens color/ sound	Red
Level-1 module type	Steady LED
Level-2 lens color/ sound	Yellow
Level-2 module type	Steady LED
Level-3 lens color/ sound	Sound module
Level-3 module type	Piezo sound alarm, continuous tone (85 dBa (+2 dB/-5 dB)): Sound module must be on the top-most level, Only one sound module is allowed per assembly
Level-4 lens color/ sound	No module
Level-4 module type	No module
Level-5 lens color/ sound	No module
Level-5 module type	No module
Mounting type	10 cm M20 metric threaded tube for direct mount

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Current consumption	Sound modules: 22 mA
Estimated light output	Level-2 module, yellow LED: 700 mcd
Function acoustic	False
Lamp life rating	Level-2 LED module: 100000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Operating voltage	Light modules and sound modules: 120V (±10%) @ AC, 60 Hz
Rated operating voltage Ue	120 V
Sound module rating	Level-3 sound module: 20000 h
Voltage type for actuating	AC

Operating temperature	-25 °C
Storage temperature	-25 °C

Click the Download CAD button below to view all file formats available for download.

General	Publication
Product Cutsheet	--

Technical Data	Publication
855-td001_-en-p	855-TD001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	855D-T10SC20B10Y4Y8C1
UPC	662074452118
Estimated Lead Time	30 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Physical Characteristics

Mechanical

Decibel rating	Piezo sound module: 85 dBa (+2 dB/-5 dB)
Degree of protection (IP)	IP65
Degree of protection (NEMA)	4X
List of degrees of protection (NEMA)	4, 4X, 13
Loudness	85 dBb
Outer diameter	30 mm

Construction

Cable length and termination	2 m, flying leads, Yellow jacket
Function continuous light	True
Housing color	Black
Level-1 lens color/ sound	Red
Level-1 module type	Steady LED
Level-2 lens color/ sound	Yellow
Level-2 module type	Steady LED
Level-3 lens color/ sound	Sound module
Level-3 module type	Piezo sound alarm, continuous tone (85 dBa (+2 dB/-5 dB)): Sound module must be on the top-most level, Only one sound module is allowed per assembly
Level-4 lens color/ sound	No module
Level-4 module type	No module
Level-5 lens color/ sound	No module
Level-5 module type	No module
Mounting type	10 cm M20 metric threaded tube for direct mount

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Electrical & Connectivity

Current consumption	Sound modules: 22 mA
Estimated light output	Level-2 module, yellow LED: 700 mcd
Function acoustic	False
Lamp life rating	Level-2 LED module: 100000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Operating voltage	Light modules and sound modules: 120V (±10%) @ AC, 60 Hz
Rated operating voltage Ue	120 V
Sound module rating	Level-3 sound module: 20000 h
Voltage type for actuating	AC
