855D-T00SC20B10L3L5L4

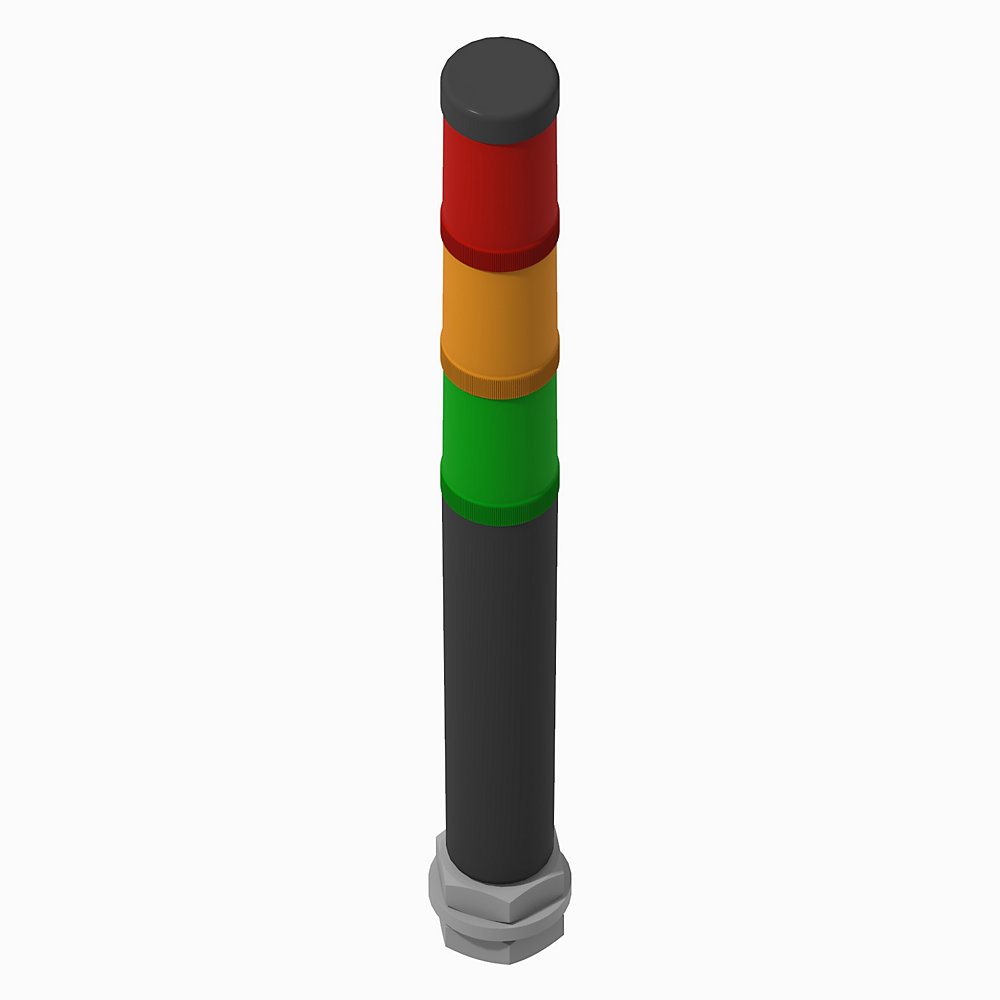

30 mm Stack Light

Name: 30 mm Stack Light
Brand: Rockwell Automation
SKU: 855D-T00SC20B10L3L5L4

Serial #:

Lifecycle status: Active

Description

Compact Tower Light, 30 mm, Metric (M20) Threaded Tube For Direct Mount, 0cm, No Network Option, Stranded Cable, 2 meter, Yellow Jacket, Black, 120V AC, Green Flashing LED, Amber Flashing LED, Red Flashing LED, No Lens No Module, No Lens No Module

Lifecycle status: Active

Description

Unique Product Identifier	855D-T00SC20B10L3L5L4
UPC	662074999323
Estimated Lead Time	84 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Mechanical

Degree of protection (IP)	IP65
Degree of protection (NEMA)	4X
List of degrees of protection (NEMA)	4, 4X, 13
Outer diameter	30 mm

Construction

Cable length and termination	2 m, flying leads, Yellow jacket
Flashing light	True
Function flashlight	True
Housing color	Black
Level-1 lens color/ sound	Green
Level-1 module type	Flashing LED (2 flashes per s)
Level-2 lens color/ sound	Amber
Level-2 module type	Flashing LED (2 flashes per s)
Level-3 lens color/ sound	Red
Level-3 module type	Flashing LED (2 flashes per s)
Level-4 lens color/ sound	No module
Level-4 module type	No module
Level-5 lens color/ sound	No module
Level-5 module type	No module
Mounting type	0 cm M20 metric threaded tube for direct mount

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Current consumption	Sound modules: 22 mA
Estimated light output	Level-3 module, red LED: 1000 mcd
Flashing frequency, approx	Level-3 module: approximately 2 Hz
Function acoustic	False
Lamp life rating	Level-3 LED module: 100000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Operating voltage	Light modules and sound modules: 120V (±10%) @ AC, 60 Hz
Rated operating voltage Ue	120 V
Voltage type for actuating	AC

Operating temperature	-25 °C
Storage temperature	-25 °C

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

Click the Download CAD button below to view all file formats available for download.

General	Publication
Product Cutsheet	--

Technical Data	Publication
855-td001_-en-p	855-TD001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	855D-T00SC20B10L3L5L4
UPC	662074999323
Estimated Lead Time	84 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Physical Characteristics

Mechanical

Degree of protection (IP)	IP65
Degree of protection (NEMA)	4X
List of degrees of protection (NEMA)	4, 4X, 13
Outer diameter	30 mm

Construction

Cable length and termination	2 m, flying leads, Yellow jacket
Flashing light	True
Function flashlight	True
Housing color	Black
Level-1 lens color/ sound	Green
Level-1 module type	Flashing LED (2 flashes per s)
Level-2 lens color/ sound	Amber
Level-2 module type	Flashing LED (2 flashes per s)
Level-3 lens color/ sound	Red
Level-3 module type	Flashing LED (2 flashes per s)
Level-4 lens color/ sound	No module
Level-4 module type	No module
Level-5 lens color/ sound	No module
Level-5 module type	No module
Mounting type	0 cm M20 metric threaded tube for direct mount

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Electrical & Connectivity

Current consumption	Sound modules: 22 mA
Estimated light output	Level-3 module, red LED: 1000 mcd
Flashing frequency, approx	Level-3 module: approximately 2 Hz
Function acoustic	False
Lamp life rating	Level-3 LED module: 100000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Operating voltage	Light modules and sound modules: 120V (±10%) @ AC, 60 Hz
Rated operating voltage Ue	120 V
Voltage type for actuating	AC

Compliance & Environment

Operating temperature	-25 °C
Storage temperature	-25 °C

Drawings

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

Click the Download CAD button below to view all file formats available for download.

Documents

Product Cutsheet General
--

855-td001_-en-p Technical Data
855-TD001

General	Publication
Product Cutsheet	--
Technical Data	Publication
855-td001_-en-p	855-TD001
