855D-P25SC20G10Y3Y4Y5Y6Y8

Preassembled Stack Light 30 mm Stack Lig

Name: Preassembled Stack Light 30 mm Stack Lig
Brand: Rockwell Automation
SKU: 855D-P25SC20G10Y3Y4Y5Y6Y8

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of July 31, 2025, the Preassembled Stack Light 30 mm Stack Lig will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: July 31, 2025 Replacement Category: Engineering Replacement

Description

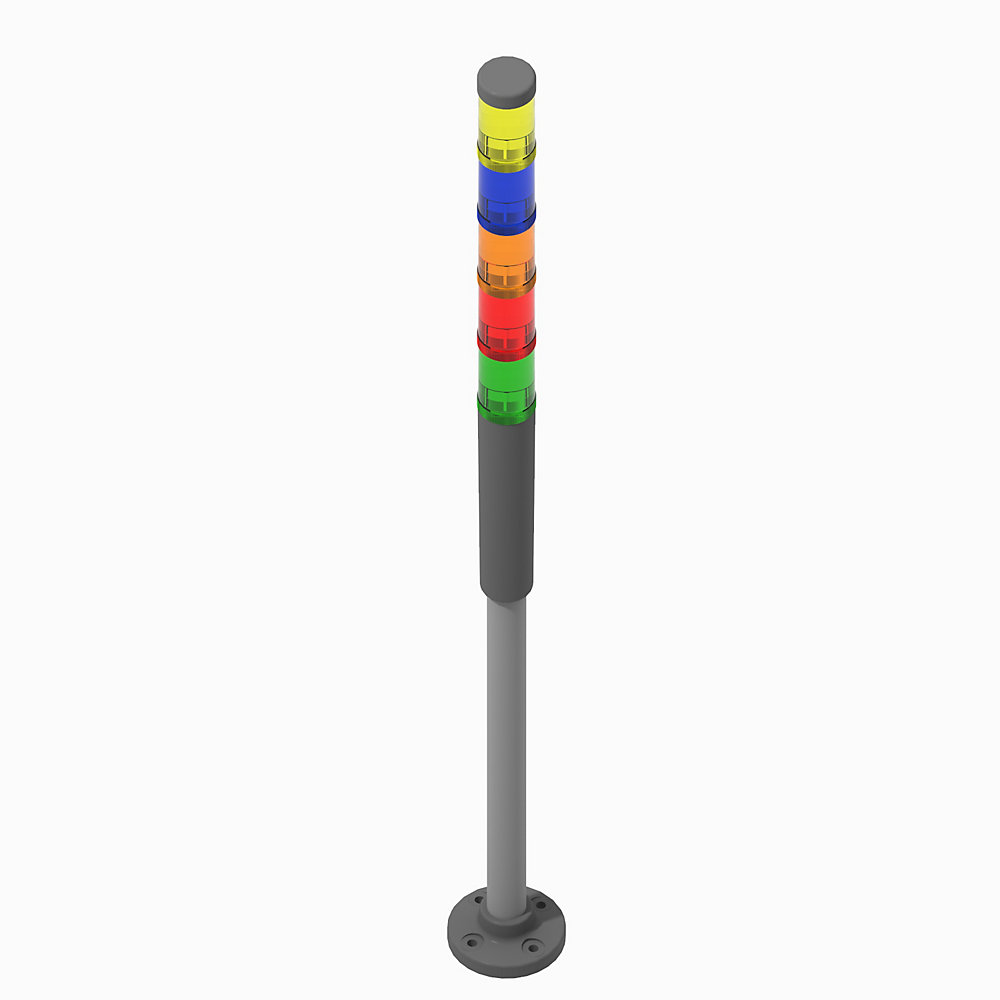

Compact Tower Light, 30 mm, Aluminum Pole-Mount with Foot, 25cm, No Network Option, Stranded Cable, 2 meter, Yellow Jacket, Grey, 120V AC, Green Steady LED, Red Steady LED, Amber Steady LED, Blue Steady LED, Yellow Steady LED

Lifecycle status: Discontinued

Discontinued Date: July 31, 2025 Replacement Category: Engineering Replacement

Description

Unique Product Identifier	855D-P25SC20G10Y3Y4Y5Y6Y8
UPC	612598830329
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Sub Brand	Preassembled Stack Light

Current consumption	Sound modules: 22 mA
Estimated light output	Level-5 module, yellow LED: 700 mcd
Function acoustic	False
Lamp life rating	Level-5 LED module: 100000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Operating voltage	Light modules and sound modules: 120V (±10%) @ AC, 60 Hz
Rated operating voltage Ue	120 V
Voltage type for actuating	AC

Mechanical

Degree of protection (IP)	IP65
Degree of protection (NEMA)	4X
List of degrees of protection (NEMA)	4, 4X, 13
Outer diameter	30 mm
Shock	5 module stack: 35 G
Vibration	5 module stack: 2.0 G

Construction

Cable length and termination	2 m, flying leads, Yellow jacket
Function continuous light	True
Housing color	Grey
Level-1 lens color/ sound	Green
Level-1 module type	Steady LED
Level-2 lens color/ sound	Red
Level-2 module type	Steady LED
Level-3 lens color/ sound	Amber
Level-3 module type	Steady LED
Level-4 lens color/ sound	Blue
Level-4 module type	Steady LED
Level-5 lens color/ sound	Yellow
Level-5 module type	Steady LED
Mounting type	25 cm Aluminium pole mount with ft

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Operating temperature	-25 °C
Storage temperature	-25 °C

Click the Download CAD button below to view all file formats available for download.

General	Publication
Product Cutsheet	--

Technical Data	Publication
855-td001_-en-p	855-TD001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	855D-P25SC20G10Y3Y4Y5Y6Y8
UPC	612598830329
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Electrical & Connectivity

Sub Brand	Preassembled Stack Light

Current consumption	Sound modules: 22 mA
Estimated light output	Level-5 module, yellow LED: 700 mcd
Function acoustic	False
Lamp life rating	Level-5 LED module: 100000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Operating voltage	Light modules and sound modules: 120V (±10%) @ AC, 60 Hz
Rated operating voltage Ue	120 V
Voltage type for actuating	AC

Physical Characteristics

Mechanical

Degree of protection (IP)	IP65
Degree of protection (NEMA)	4X
List of degrees of protection (NEMA)	4, 4X, 13
Outer diameter	30 mm
Shock	5 module stack: 35 G
Vibration	5 module stack: 2.0 G

Construction

Cable length and termination	2 m, flying leads, Yellow jacket
Function continuous light	True
Housing color	Grey
Level-1 lens color/ sound	Green
Level-1 module type	Steady LED
Level-2 lens color/ sound	Red
Level-2 module type	Steady LED
Level-3 lens color/ sound	Amber
Level-3 module type	Steady LED
Level-4 lens color/ sound	Blue
Level-4 module type	Steady LED
Level-5 lens color/ sound	Yellow
Level-5 module type	Steady LED
Mounting type	25 cm Aluminium pole mount with ft

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Compliance & Environment

Operating temperature	-25 °C
Storage temperature	-25 °C
