855D-P25SC20B24Y3L4C1

30 mm Stack Light

Name: 30 mm Stack Light
Brand: Rockwell Automation
SKU: 855D-P25SC20B24Y3L4C1

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of July 31, 2025, the 30 mm Stack Light will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: July 31, 2025 Replacement Category: Engineering Replacement

Lifecycle status: Discontinued

Discontinued Date: July 31, 2025 Replacement Category: Engineering Replacement

Description

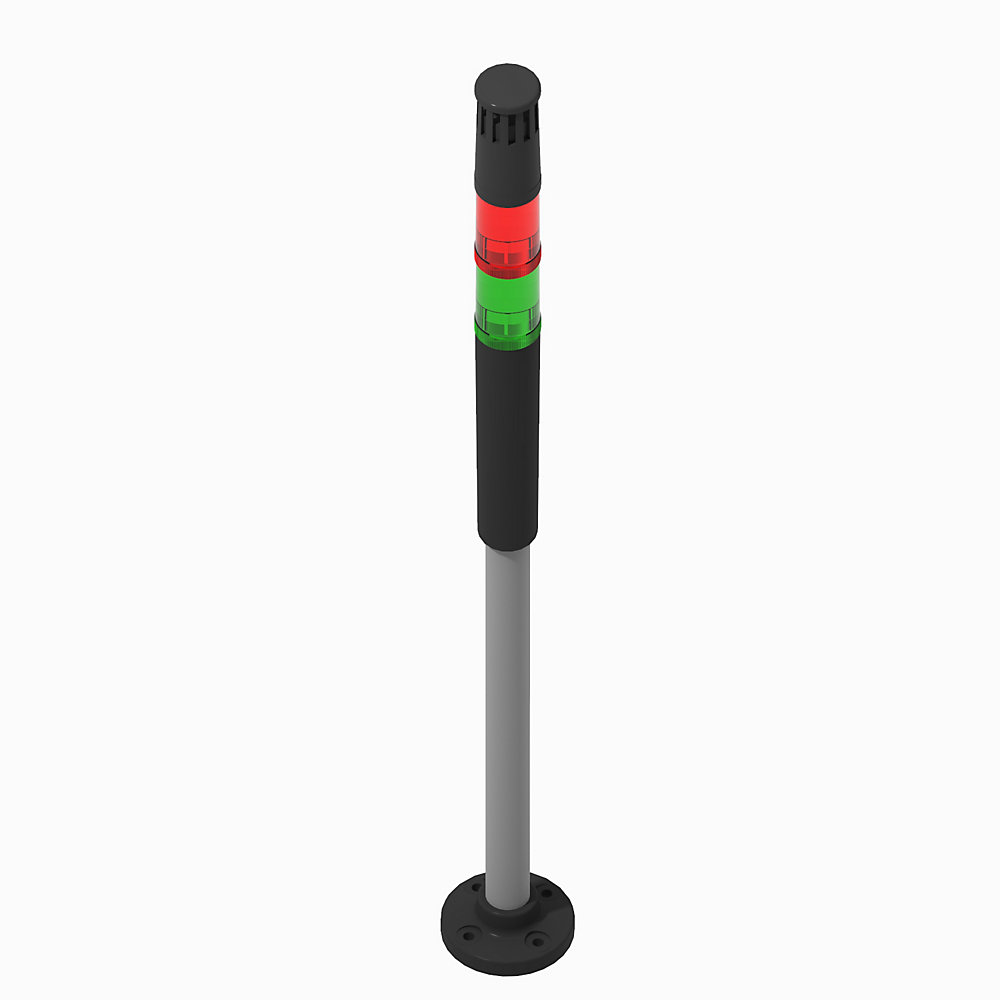

Compact Tower Light, 30 mm, Aluminum Pole-Mount with Foot, 25cm, No Network Option, Stranded Cable, 2 meter, Yellow Jacket, Black, 24V AC/DC, Green Steady LED, Red Flashing LED, None Sound Alarm - Continous Tone, No Module, No Module

Unique Product Identifier	855D-P25SC20B24Y3L4C1
UPC	662074953134
Estimated Lead Time	42 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Outer diameter	30 mm
Degree of protection (NEMA)	4X
Loudness	85 dBb
Degree of protection (IP)	IP65
Shock	5 module stack: 35 G
Vibration	5 module stack: 2.0 G
Decibel rating	Piezo sound module: 85 dBa (+2 dB/-5 dB)
List of degrees of protection (NEMA)	4, 4X, 13

Function acoustic	False
Rated operating voltage Ue	24 V
Voltage type for actuating	AC/DC
Sound module rating	Level-3 sound module: 20000 h
Flashing frequency, approx	Level-2 module: approximately 2 Hz
Lamp life rating	Level-2 LED module: 100000 h
Estimated light output	Level-2 module, red LED: 1000 mcd
Operating voltage	Light modules and sound modules: 24V (±10%) @ AC/DC
Current consumption	Sound modules: 40 mA
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation

Housing color	Black
Level-1 lens color/ sound	Green
Level-2 lens color/ sound	Red
Level-3 lens color/ sound	Sound module
Level-4 lens color/ sound	No module
Level-5 lens color/ sound	No module
Mounting type	25 cm Aluminium pole mount with ft
Cable length and termination	2 m, flying leads, Yellow jacket
Level-5 module type	No module
Level-1 module type	Steady LED
Level-2 module type	Flashing LED (2 flashes per s)
Level-3 module type	Piezo sound alarm, continuous tone (85 dBa (+2 dB/-5 dB)): Sound module must be on the top-most level, Only one sound module is allowed per assembly
Level-4 module type	No module
Function flashlight	True
Function continuous light	True
Flashing light	True

Operating temperature	-25 °C
Storage temperature	-25 °C

Material	Rubber seals and gaskets: Nitrile rubber

General	Publication
Product Cutsheet	--

Technical Data	Publication
855-td001_-en-p	855-TD001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	855D-P25SC20B24Y3L4C1
UPC	662074953134
Estimated Lead Time	42 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

Technical Specifications

Outer diameter	30 mm
Degree of protection (NEMA)	4X
Loudness	85 dBb
Degree of protection (IP)	IP65
Shock	5 module stack: 35 G
Vibration	5 module stack: 2.0 G
Decibel rating	Piezo sound module: 85 dBa (+2 dB/-5 dB)
List of degrees of protection (NEMA)	4, 4X, 13

Function acoustic	False
Rated operating voltage Ue	24 V
Voltage type for actuating	AC/DC
Sound module rating	Level-3 sound module: 20000 h
Flashing frequency, approx	Level-2 module: approximately 2 Hz
Lamp life rating	Level-2 LED module: 100000 h
Estimated light output	Level-2 module, red LED: 1000 mcd
Operating voltage	Light modules and sound modules: 24V (±10%) @ AC/DC
Current consumption	Sound modules: 40 mA
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation

Housing color	Black
Level-1 lens color/ sound	Green
Level-2 lens color/ sound	Red
Level-3 lens color/ sound	Sound module
Level-4 lens color/ sound	No module
Level-5 lens color/ sound	No module
Mounting type	25 cm Aluminium pole mount with ft
Cable length and termination	2 m, flying leads, Yellow jacket
Level-5 module type	No module
Level-1 module type	Steady LED
Level-2 module type	Flashing LED (2 flashes per s)
Level-3 module type	Piezo sound alarm, continuous tone (85 dBa (+2 dB/-5 dB)): Sound module must be on the top-most level, Only one sound module is allowed per assembly
Level-4 module type	No module
Function flashlight	True
Function continuous light	True
Flashing light	True

Operating temperature	-25 °C
Storage temperature	-25 °C

Material	Rubber seals and gaskets: Nitrile rubber
