855D-P10SC20G24Y8Q1

30 mm Stack Light

Name: 30 mm Stack Light
Brand: Rockwell Automation
SKU: 855D-P10SC20G24Y8Q1

Serial #:

Lifecycle status: Active

Description

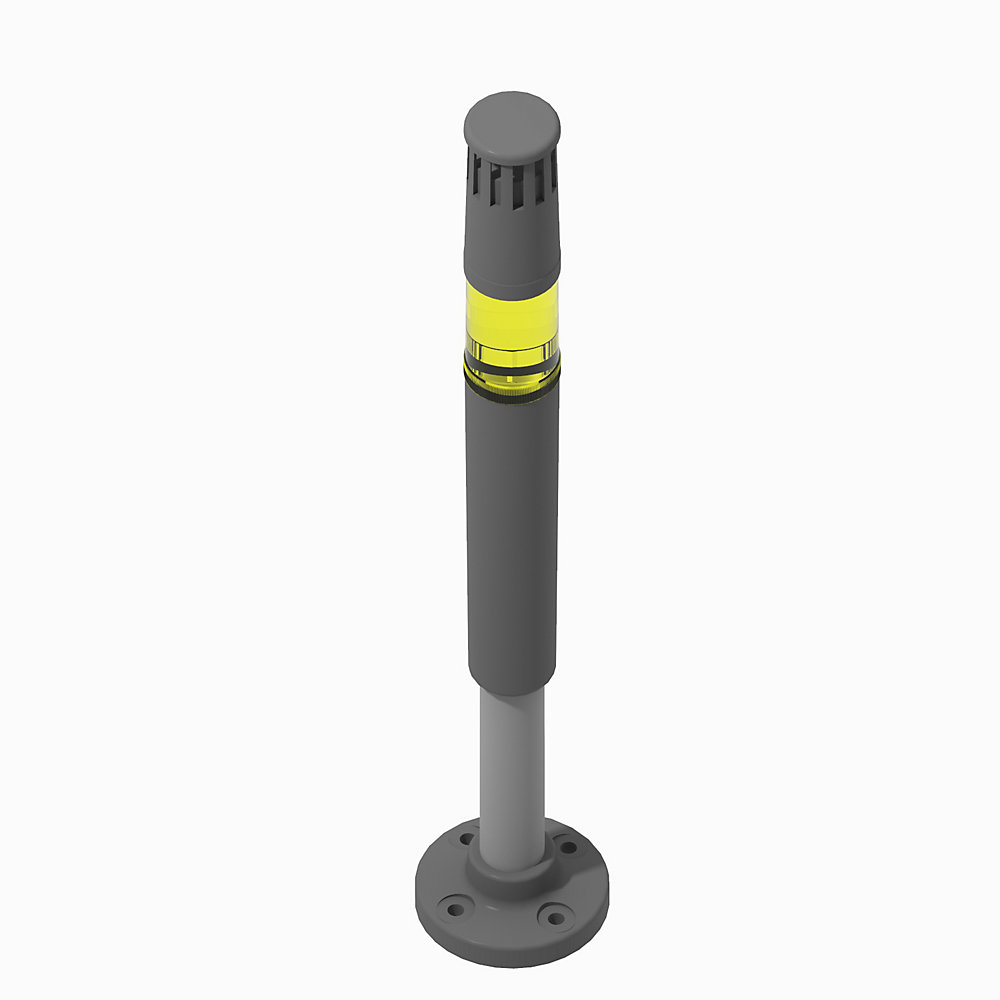

Compact Tower Light, 30 mm, Aluminum Pole-Mount with Foot, 10cm, No Network Option, Stranded Cable, 2 meter, Yellow Jacket, Grey, 24V AC/DC, Yellow Steady LED, None Two-Circuit Sound Alarm, No Lens No Module, No Lens No Module, No Lens No Module

Lifecycle status: Active

Description

Unique Product Identifier	855D-P10SC20G24Y8Q1
UPC	662074778287
Estimated Lead Time	84 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Mechanical

Decibel rating	Piezo sound module: 85 dBa (+2 dB/-5 dB)
Degree of protection (IP)	IP65
Degree of protection (NEMA)	4X
List of degrees of protection (NEMA)	4, 4X, 13
Loudness	85 dBb
Outer diameter	30 mm
Shock	5 module stack: 35 G
Vibration	5 module stack: 2.0 G

Construction

Cable length and termination	2 m, flying leads, Yellow jacket
Function continuous light	True
Housing color	Grey
Level-1 lens color/ sound	Yellow
Level-1 module type	Steady LED
Level-2 lens color/ sound	Sound module
Level-2 module type	Dual-circuit piezo sound alarm (85 dBa (+2 dB/-5 dB)): The maximum number of light modules that are allowed is three, Sound module must be on the top-most level, Only one sound module is allowed per assembly
Level-3 lens color/ sound	No module
Level-3 module type	No module
Level-4 lens color/ sound	No module
Level-4 module type	No module
Level-5 lens color/ sound	No module
Level-5 module type	No module
Mounting type	10 cm Aluminium pole mount with ft

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Current consumption	Sound modules: 40 mA
Estimated light output	Level-1 module, yellow LED: 700 mcd
Function acoustic	False
Lamp life rating	Level-1 LED module: 100000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Operating voltage	Light modules and sound modules: 24V (±10%) @ AC/DC
Rated operating voltage Ue	24 V
Sound module rating	Level-2 sound module: 20000 h
Voltage type for actuating	AC/DC

Operating temperature	-25 °C
Storage temperature	-25 °C
