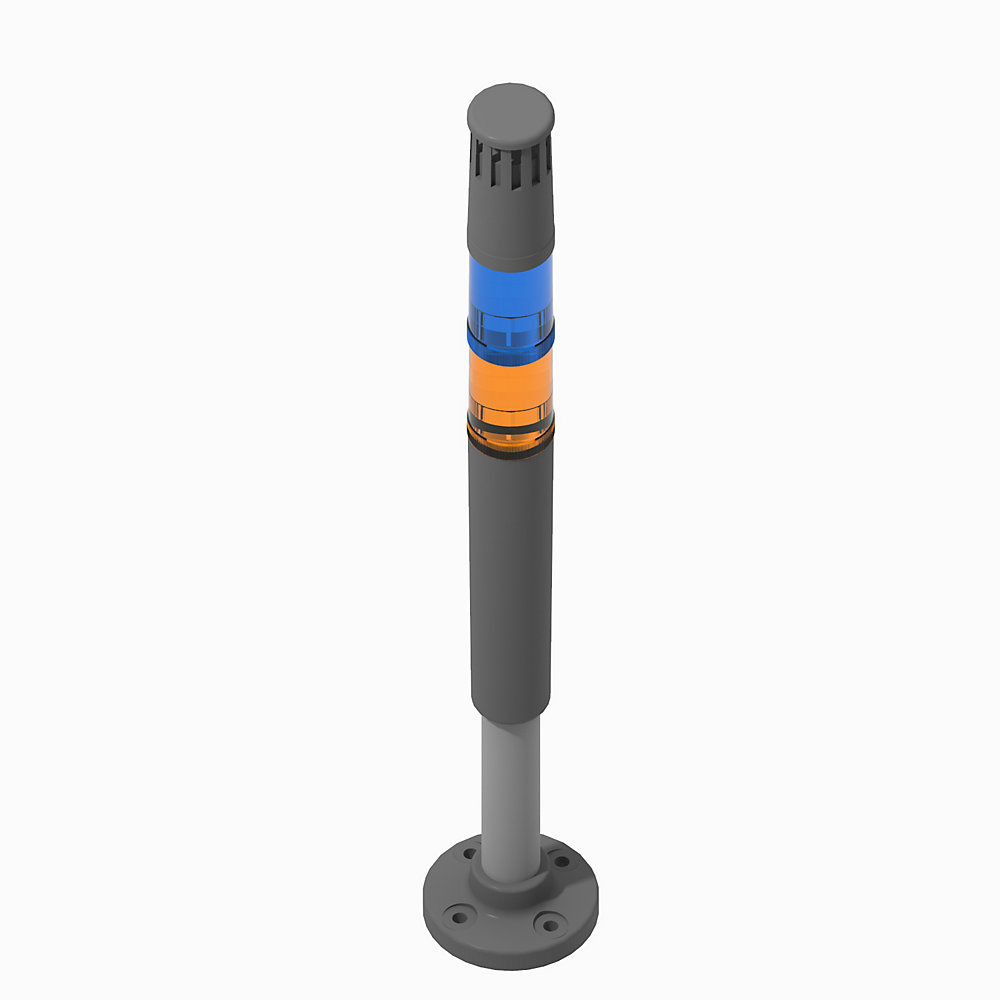

855D-P10SC20G24L5L6P1
Preassembled Stack Light 30 mm Stack Lig
Rockwell Automation announces that as of July 31, 2025, the Preassembled Stack Light 30 mm Stack Lig will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
July 31, 2025
Replacement Category:
Engineering Replacement
Rockwell Automation announces that as of July 31, 2025, the Preassembled Stack Light 30 mm Stack Lig will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
July 31, 2025
Replacement Category:
Engineering Replacement
| Outer diameter |
30 mm
|
|---|---|
| Degree of protection (NEMA) |
4X
|
| Loudness |
85 dBb
|
| Degree of protection (IP) |
IP65
|
| Shock |
5 module stack: 35 G
|
| Vibration |
5 module stack: 2.0 G
|
| Decibel rating |
Piezo sound module: 85 dBa (+2 dB/-5 dB)
|
| List of degrees of protection (NEMA) |
4, 4X, 13
|
| Function acoustic |
False
|
|---|---|
| Rated operating voltage Ue |
24 V
|
| Voltage type for actuating |
AC/DC
|
| Sound module rating |
Level-3 sound module: 20000 h
|
| Flashing frequency, approx |
Level-2 module: approximately 2 Hz
|
| Lamp life rating |
Level-2 LED module: 100000 h
|
| Estimated light output |
Level-2 module, blue LED: 250 mcd
|
| Operating voltage |
Light modules and sound modules: 24V (±10%) @ AC/DC
|
| Current consumption |
Sound modules: 40 mA
|
| Leakage current impact |
All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
|
| Housing color |
Grey
|
|---|---|
| Level-1 lens color/ sound |
Amber
|
| Level-2 lens color/ sound |
Blue
|
| Level-3 lens color/ sound |
Sound module
|
| Level-4 lens color/ sound |
No module
|
| Level-5 lens color/ sound |
No module
|
| Mounting type |
10 cm Aluminium pole mount with ft
|
| Cable length and termination |
2 m, flying leads, Yellow jacket
|
| Level-5 module type |
No module
|
| Level-1 module type |
Flashing LED (2 flashes per s)
|
| Level-2 module type |
Flashing LED (2 flashes per s)
|
| Level-3 module type |
Piezo sound alarm, pulsing tone (85 dBa (+2 dB/-5 dB)): Sound module must be on the top-most level, Only one sound module is allowed per assembly
|
| Level-4 module type |
No module
|
| Function flashlight |
True
|
| Flashing light |
True
|
| Operating temperature |
-25 °C
|
|---|---|
| Storage temperature |
-25 °C
|
| Material |
Rubber seals and gaskets: Nitrile rubber
|
|---|
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| Technical Data | 855-td001_-en-p | 855-TD001 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Outer diameter |
30 mm
|
|---|---|
| Degree of protection (NEMA) |
4X
|
| Loudness |
85 dBb
|
| Degree of protection (IP) |
IP65
|
| Shock |
5 module stack: 35 G
|
| Vibration |
5 module stack: 2.0 G
|
| Decibel rating |
Piezo sound module: 85 dBa (+2 dB/-5 dB)
|
| List of degrees of protection (NEMA) |
4, 4X, 13
|
| Function acoustic |
False
|
|---|---|
| Rated operating voltage Ue |
24 V
|
| Voltage type for actuating |
AC/DC
|
| Sound module rating |
Level-3 sound module: 20000 h
|
| Flashing frequency, approx |
Level-2 module: approximately 2 Hz
|
| Lamp life rating |
Level-2 LED module: 100000 h
|
| Estimated light output |
Level-2 module, blue LED: 250 mcd
|
| Operating voltage |
Light modules and sound modules: 24V (±10%) @ AC/DC
|
| Current consumption |
Sound modules: 40 mA
|
| Leakage current impact |
All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
|
| Housing color |
Grey
|
|---|---|
| Level-1 lens color/ sound |
Amber
|
| Level-2 lens color/ sound |
Blue
|
| Level-3 lens color/ sound |
Sound module
|
| Level-4 lens color/ sound |
No module
|
| Level-5 lens color/ sound |
No module
|
| Mounting type |
10 cm Aluminium pole mount with ft
|
| Cable length and termination |
2 m, flying leads, Yellow jacket
|
| Level-5 module type |
No module
|
| Level-1 module type |
Flashing LED (2 flashes per s)
|
| Level-2 module type |
Flashing LED (2 flashes per s)
|
| Level-3 module type |
Piezo sound alarm, pulsing tone (85 dBa (+2 dB/-5 dB)): Sound module must be on the top-most level, Only one sound module is allowed per assembly
|
| Level-4 module type |
No module
|
| Function flashlight |
True
|
| Flashing light |
True
|
| Operating temperature |
-25 °C
|
|---|---|
| Storage temperature |
-25 °C
|
| Material |
Rubber seals and gaskets: Nitrile rubber
|
|---|
