855D-P00SC20G24Y7Y3Y8Y4C1

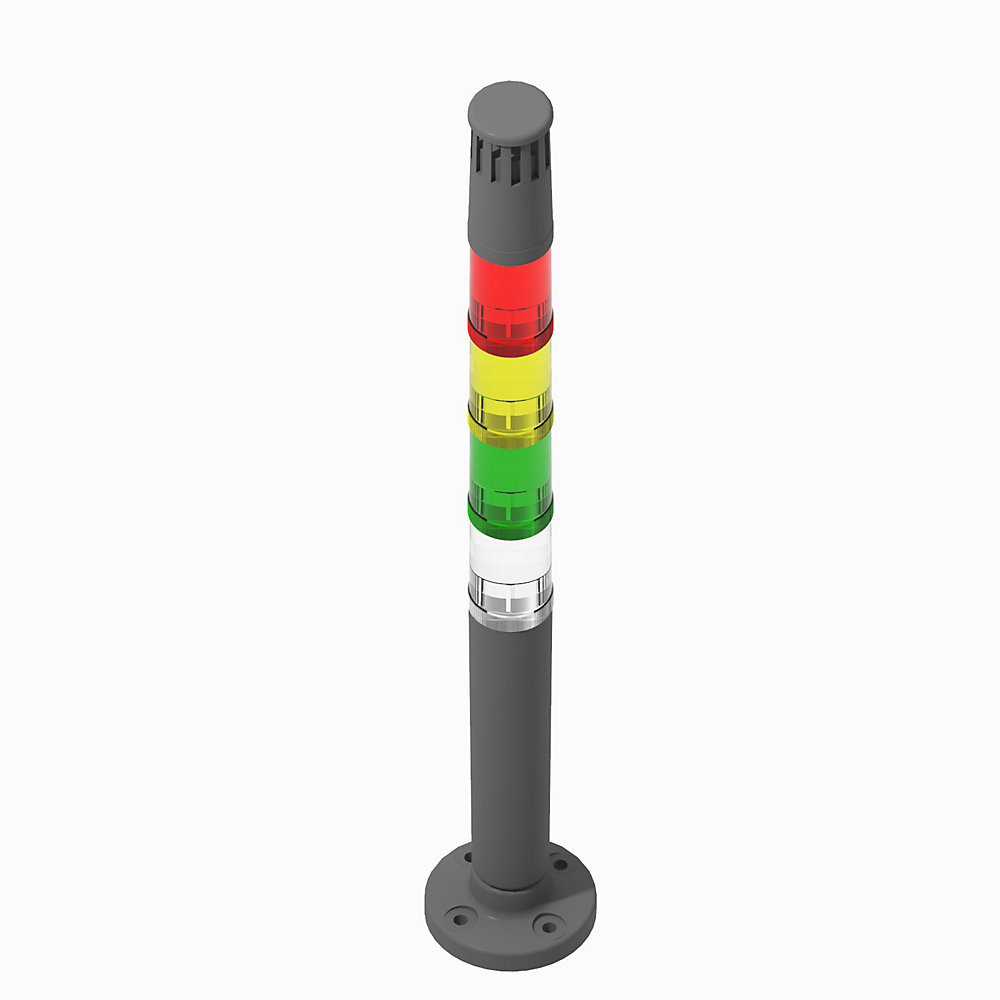

Surface-Mount 30 mm Stack Light

Name: Surface-Mount 30 mm Stack Light
Brand: Rockwell Automation
SKU: 855D-P00SC20G24Y7Y3Y8Y4C1

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of July 31, 2025, the Surface-Mount 30 mm Stack Light will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: July 31, 2025 Replacement Category: Engineering Replacement

Description

Compact Tower Light, 30 mm, Surface-Mount, No Network Option, Stranded Cable, 2 meter, Yellow Jacket, Grey, 24V AC/DC, Clear Steady LED, Green Steady LED, Yellow Steady LED, Red Steady LED, None Sound Alarm - Continous Tone

Lifecycle status: Discontinued

Discontinued Date: July 31, 2025 Replacement Category: Engineering Replacement

Description

Unique Product Identifier	855D-P00SC20G24Y7Y3Y8Y4C1
UPC	662074564323
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Mechanical

Decibel rating	Piezo sound module: 85 dBa (+2 dB/-5 dB)
Degree of protection (IP)	IP65
Degree of protection (NEMA)	4X
List of degrees of protection (NEMA)	4, 4X, 13
Loudness	85 dBb
Outer diameter	30 mm
Shock	5 module stack: 35 G
Vibration	5 module stack: 2.0 G

Construction

Cable length and termination	2 m, flying leads, Yellow jacket
Function continuous light	True
Housing color	Grey
Level-1 lens color/ sound	Clear
Level-1 module type	Steady LED
Level-2 lens color/ sound	Green
Level-2 module type	Steady LED
Level-3 lens color/ sound	Yellow
Level-3 module type	Steady LED
Level-4 lens color/ sound	Red
Level-4 module type	Steady LED
Level-5 lens color/ sound	Sound module
Level-5 module type	Piezo sound alarm, continuous tone (85 dBa (+2 dB/-5 dB)): Sound module must be on the top-most level, Only one sound module is allowed per assembly
Mounting type	Surface mount

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Current consumption	Sound modules: 40 mA
Estimated light output	Level-4 module, red LED: 1000 mcd
Function acoustic	False
Lamp life rating	Level-4 LED module: 100000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Operating voltage	Light modules and sound modules: 24V (±10%) @ AC/DC
Rated operating voltage Ue	24 V
Sound module rating	Level-5 sound module: 20000 h
Voltage type for actuating	AC/DC

Operating temperature	-25 °C
Storage temperature	-25 °C

Click the Download CAD button below to view all file formats available for download.

General	Publication
Product Cutsheet	--

Technical Data	Publication
855-td001_-en-p	855-TD001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	855D-P00SC20G24Y7Y3Y8Y4C1
UPC	662074564323
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Physical Characteristics

Mechanical

Decibel rating	Piezo sound module: 85 dBa (+2 dB/-5 dB)
Degree of protection (IP)	IP65
Degree of protection (NEMA)	4X
List of degrees of protection (NEMA)	4, 4X, 13
Loudness	85 dBb
Outer diameter	30 mm
Shock	5 module stack: 35 G
Vibration	5 module stack: 2.0 G

Construction

Cable length and termination	2 m, flying leads, Yellow jacket
Function continuous light	True
Housing color	Grey
Level-1 lens color/ sound	Clear
Level-1 module type	Steady LED
Level-2 lens color/ sound	Green
Level-2 module type	Steady LED
Level-3 lens color/ sound	Yellow
Level-3 module type	Steady LED
Level-4 lens color/ sound	Red
Level-4 module type	Steady LED
Level-5 lens color/ sound	Sound module
Level-5 module type	Piezo sound alarm, continuous tone (85 dBa (+2 dB/-5 dB)): Sound module must be on the top-most level, Only one sound module is allowed per assembly
Mounting type	Surface mount

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Electrical & Connectivity

Current consumption	Sound modules: 40 mA
Estimated light output	Level-4 module, red LED: 1000 mcd
Function acoustic	False
Lamp life rating	Level-4 LED module: 100000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Operating voltage	Light modules and sound modules: 24V (±10%) @ AC/DC
Rated operating voltage Ue	24 V
Sound module rating	Level-5 sound module: 20000 h
Voltage type for actuating	AC/DC

Compliance & Environment

Operating temperature	-25 °C
Storage temperature	-25 °C

Drawings

Click the Download CAD button below to view all file formats available for download.

Documents

Product Cutsheet General
--

855-td001_-en-p Technical Data
855-TD001

General	Publication
Product Cutsheet	--
Technical Data	Publication
855-td001_-en-p	855-TD001
