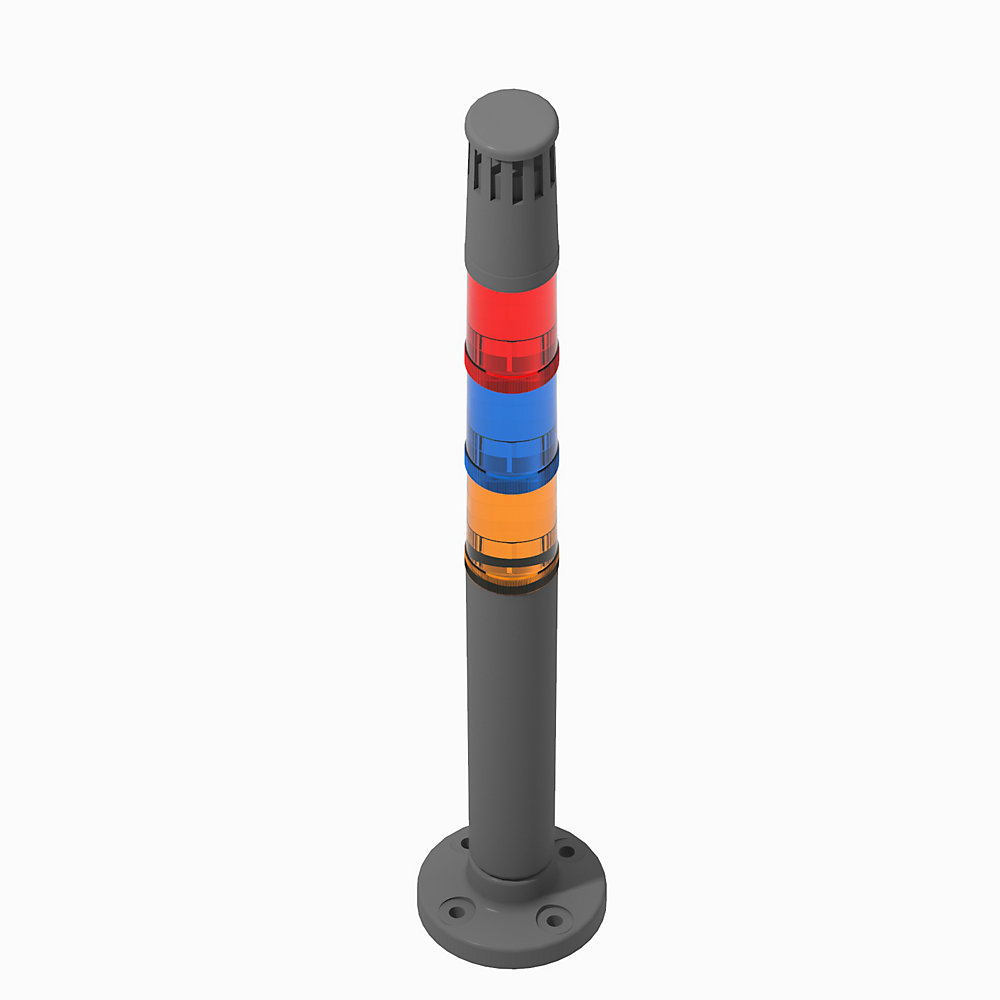

| Outer diameter | 30 mm |
|---|---|
| Degree of protection (NEMA) | 4X |
| Loudness | 85 dBb |
| Degree of protection (IP) | IP65 |
| Shock | 5 module stack: 35 G |
| Vibration | 5 module stack: 2.0 G |
| Decibel rating | Piezo sound module: 85 dBa (+2 dB/-5 dB) |
| List of degrees of protection (NEMA) | 4, 4X, 13 |
| Function acoustic | False |
|---|---|
| Rated operating voltage Ue | 24 V |
| Voltage type for actuating | AC/DC |
| Sound module rating | Level-4 sound module: 20000 h |
| Flashing frequency, approx | Level-3 module: approximately 2 Hz |
| Lamp life rating | Level-3 LED module: 100000 h |
| Estimated light output | Level-3 module, red LED: 1000 mcd |
| Operating voltage | Light modules and sound modules: 24V (±10%) @ AC/DC |
| Current consumption | Sound modules: 40 mA |
| Leakage current impact | All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation |
| Housing color | Grey |
|---|---|
| Level-1 lens color/ sound | Amber |
| Level-2 lens color/ sound | Blue |
| Level-3 lens color/ sound | Red |
| Level-4 lens color/ sound | Sound module |
| Level-5 lens color/ sound | No module |
| Mounting type | Surface mount |
| Cable length and termination | 2 m, flying leads, Yellow jacket |
| Level-5 module type | No module |
| Level-1 module type | Flashing LED (2 flashes per s) |
| Level-2 module type | Flashing LED (2 flashes per s) |
| Level-3 module type | Flashing LED (2 flashes per s) |
| Level-4 module type | Piezo sound alarm, pulsing tone (85 dBa (+2 dB/-5 dB)): Sound module must be on the top-most level, Only one sound module is allowed per assembly |
| Function flashlight | True |
| Flashing light | True |
| Operating temperature | -25 °C |
|---|---|
| Storage temperature | -25 °C |
| Material | Rubber seals and gaskets: Nitrile rubber |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 4.293 |
| Lead Time | 8 |
| Dimension Width | 5.588 |
| Dimension Length | 9.804 |
| Stock Status | NON_STOCKED |
| Weight | 45.359 |
| Weight Unit | G |
| Dimension Unit | CM |
