855D-P00SC20B10Y3Y4Y6Y8L4

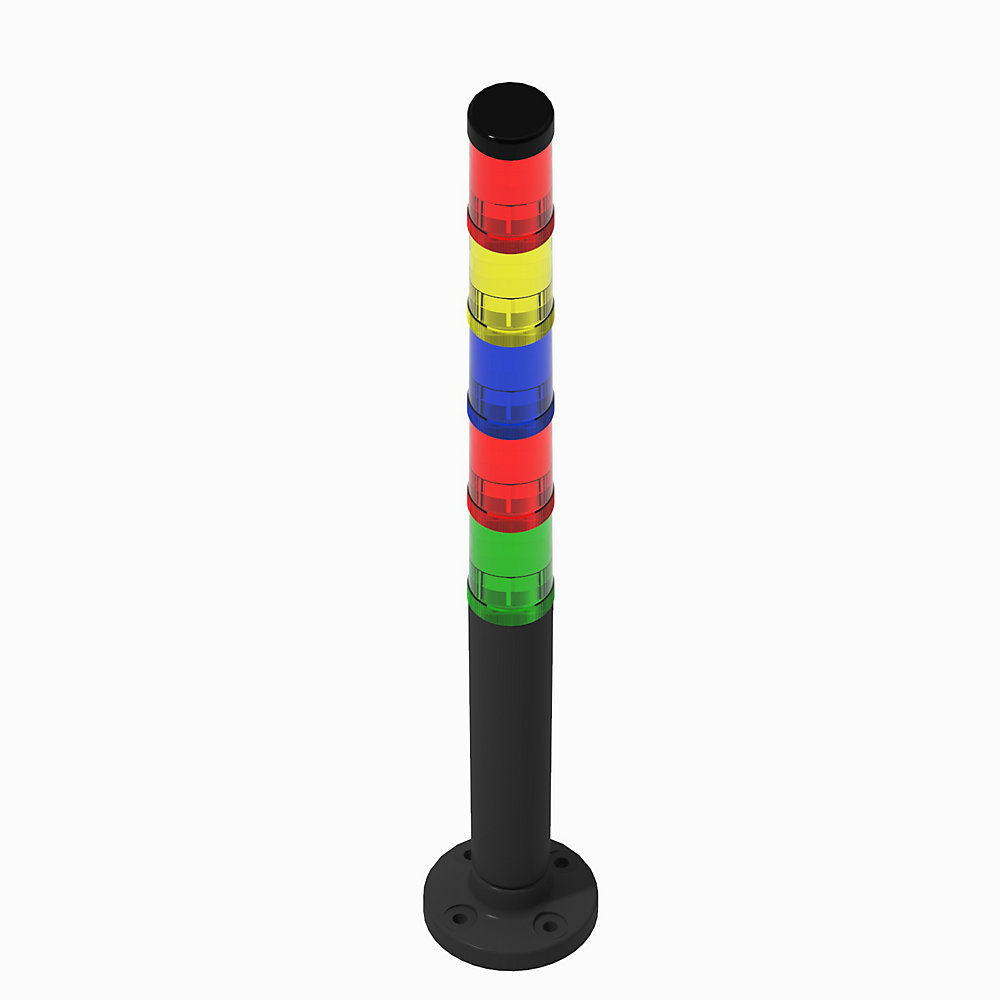

Surface-Mount 30 mm Stack Light

Name: Surface-Mount 30 mm Stack Light
Brand: Rockwell Automation
SKU: 855D-P00SC20B10Y3Y4Y6Y8L4

Serial #:

Lifecycle status: Active

Description

Compact Tower Light, 30 mm, Surface-Mount, No Network Option, Stranded Cable, 2 meter, Yellow Jacket, Black, 120V AC, Green Steady LED, Red Steady LED, Blue Steady LED, Yellow Steady LED, Red Flashing LED

Lifecycle status: Active

Description

Unique Product Identifier	855D-P00SC20B10Y3Y4Y6Y8L4
UPC	662074993765
Estimated Lead Time	84 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Mechanical

Degree of protection (IP)	IP65
Degree of protection (NEMA)	4X
List of degrees of protection (NEMA)	4, 4X, 13
Outer diameter	30 mm
Shock	5 module stack: 35 G
Vibration	5 module stack: 2.0 G

Construction

Cable length and termination	2 m, flying leads, Yellow jacket
Flashing light	True
Function continuous light	True
Function flashlight	True
Housing color	Black
Level-1 lens color/ sound	Green
Level-1 module type	Steady LED
Level-2 lens color/ sound	Red
Level-2 module type	Steady LED
Level-3 lens color/ sound	Blue
Level-3 module type	Steady LED
Level-4 lens color/ sound	Yellow
Level-4 module type	Steady LED
Level-5 lens color/ sound	Red
Level-5 module type	Flashing LED (2 flashes per s)
Mounting type	Surface mount

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Current consumption	Sound modules: 22 mA
Estimated light output	Level-5 module, red LED: 1000 mcd
Flashing frequency, approx	Level-5 module: approximately 2 Hz
Function acoustic	False
Lamp life rating	Level-5 LED module: 100000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Operating voltage	Light modules and sound modules: 120V (±10%) @ AC, 60 Hz
Rated operating voltage Ue	120 V
Voltage type for actuating	AC

Operating temperature	-25 °C
Storage temperature	-25 °C

Click the Download CAD button below to view all file formats available for download.

General	Publication
Product Cutsheet	--

Technical Data	Publication
855-td001_-en-p	855-TD001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	855D-P00SC20B10Y3Y4Y6Y8L4
UPC	662074993765
Estimated Lead Time	84 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Physical Characteristics

Mechanical

Degree of protection (IP)	IP65
Degree of protection (NEMA)	4X
List of degrees of protection (NEMA)	4, 4X, 13
Outer diameter	30 mm
Shock	5 module stack: 35 G
Vibration	5 module stack: 2.0 G

Construction

Cable length and termination	2 m, flying leads, Yellow jacket
Flashing light	True
Function continuous light	True
Function flashlight	True
Housing color	Black
Level-1 lens color/ sound	Green
Level-1 module type	Steady LED
Level-2 lens color/ sound	Red
Level-2 module type	Steady LED
Level-3 lens color/ sound	Blue
Level-3 module type	Steady LED
Level-4 lens color/ sound	Yellow
Level-4 module type	Steady LED
Level-5 lens color/ sound	Red
Level-5 module type	Flashing LED (2 flashes per s)
Mounting type	Surface mount

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Electrical & Connectivity

Current consumption	Sound modules: 22 mA
Estimated light output	Level-5 module, red LED: 1000 mcd
Flashing frequency, approx	Level-5 module: approximately 2 Hz
Function acoustic	False
Lamp life rating	Level-5 LED module: 100000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Operating voltage	Light modules and sound modules: 120V (±10%) @ AC, 60 Hz
Rated operating voltage Ue	120 V
Voltage type for actuating	AC

Compliance & Environment

Operating temperature	-25 °C
Storage temperature	-25 °C
