855D-P00SC20B10Y3Y4Y5C1

Preassembled Stack Light 30 mm Stack Lig

Name: Preassembled Stack Light 30 mm Stack Lig
Brand: Rockwell Automation
SKU: 855D-P00SC20B10Y3Y4Y5C1

Serial #:

Lifecycle status: Active

Description

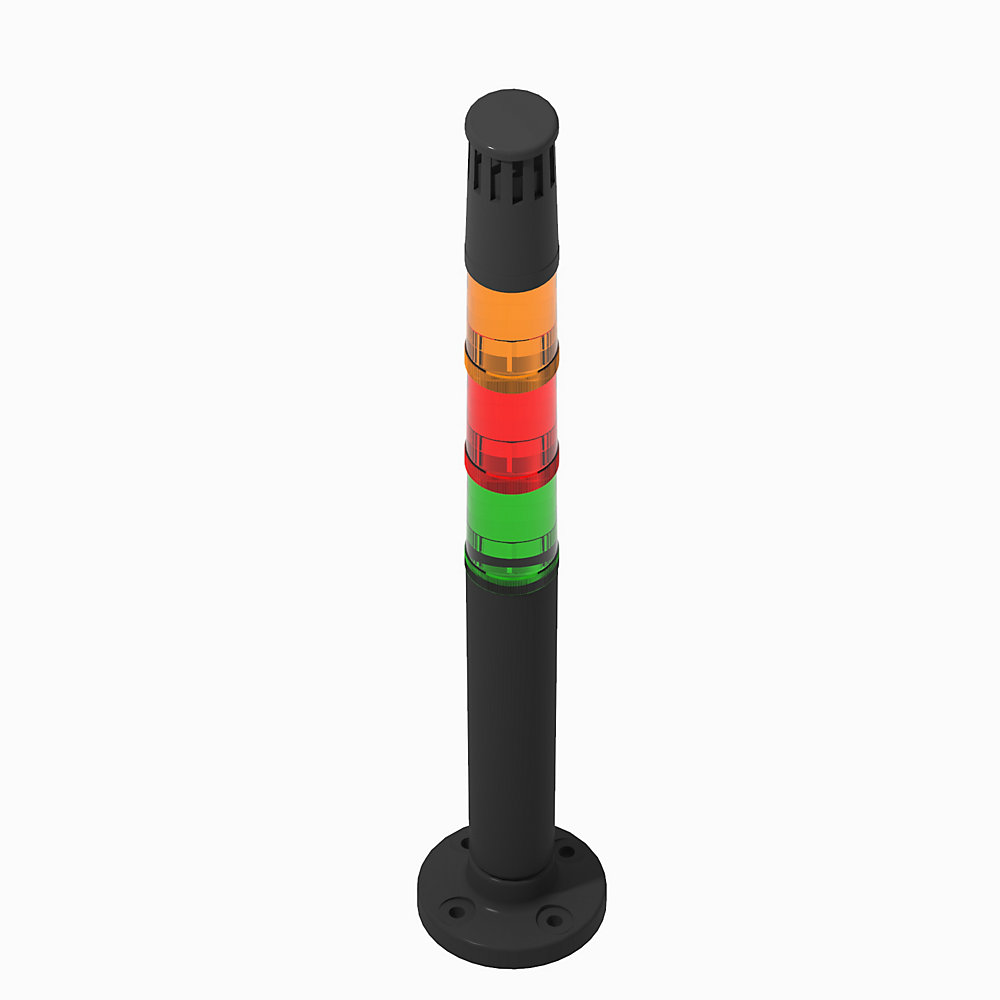

Compact Tower Light, 30 mm, Surface-Mount, No Network Option, Stranded Cable, 2 meter, Yellow Jacket, Black, 120V AC, Green Steady LED, Red Steady LED, Amber Steady LED, None Sound Alarm - Continous Tone, No Lens No Module

Unique Product Identifier	855D-P00SC20B10Y3Y4Y5C1
UPC	612598843657
Estimated Lead Time	30 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Outer diameter	30 mm
Degree of protection (NEMA)	4X
Loudness	85 dBb
Degree of protection (IP)	IP65
Shock	5 module stack: 35 G
Vibration	5 module stack: 2.0 G
Decibel rating	Piezo sound module: 85 dBa (+2 dB/-5 dB)
List of degrees of protection (NEMA)	4, 4X, 13

Function acoustic	False
Rated operating voltage Ue	120 V
Voltage type for actuating	AC
Sound module rating	Level-4 sound module: 20000 h
Lamp life rating	Level-3 LED module: 100000 h
Estimated light output	Level-3 module, amber LED: 800 mcd
Operating voltage	Light modules and sound modules: 120V (±10%) @ AC, 60 Hz
Current consumption	Sound modules: 22 mA
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation

Housing color	Black
Level-1 lens color/ sound	Green
Level-2 lens color/ sound	Red
Level-3 lens color/ sound	Amber
Level-4 lens color/ sound	Sound module
Level-5 lens color/ sound	No module
Mounting type	Surface mount
Cable length and termination	2 m, flying leads, Yellow jacket
Level-5 module type	No module
Level-1 module type	Steady LED
Level-2 module type	Steady LED
Level-3 module type	Steady LED
Level-4 module type	Piezo sound alarm, continuous tone (85 dBa (+2 dB/-5 dB)): Sound module must be on the top-most level, Only one sound module is allowed per assembly
Function continuous light	True

Operating temperature	-25 °C
Storage temperature	-25 °C

Material	Rubber seals and gaskets: Nitrile rubber

General	Publication
Product Cutsheet	--

Technical Data	Publication
855-td001_-en-p	855-TD001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

UKCA DOC

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	855D-P00SC20B10Y3Y4Y5C1
UPC	612598843657
Estimated Lead Time	30 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

Technical Specifications

Outer diameter	30 mm
Degree of protection (NEMA)	4X
Loudness	85 dBb
Degree of protection (IP)	IP65
Shock	5 module stack: 35 G
Vibration	5 module stack: 2.0 G
Decibel rating	Piezo sound module: 85 dBa (+2 dB/-5 dB)
List of degrees of protection (NEMA)	4, 4X, 13

Function acoustic	False
Rated operating voltage Ue	120 V
Voltage type for actuating	AC
Sound module rating	Level-4 sound module: 20000 h
Lamp life rating	Level-3 LED module: 100000 h
Estimated light output	Level-3 module, amber LED: 800 mcd
Operating voltage	Light modules and sound modules: 120V (±10%) @ AC, 60 Hz
Current consumption	Sound modules: 22 mA
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation

Housing color	Black
Level-1 lens color/ sound	Green
Level-2 lens color/ sound	Red
Level-3 lens color/ sound	Amber
Level-4 lens color/ sound	Sound module
Level-5 lens color/ sound	No module
Mounting type	Surface mount
Cable length and termination	2 m, flying leads, Yellow jacket
Level-5 module type	No module
Level-1 module type	Steady LED
Level-2 module type	Steady LED
Level-3 module type	Steady LED
Level-4 module type	Piezo sound alarm, continuous tone (85 dBa (+2 dB/-5 dB)): Sound module must be on the top-most level, Only one sound module is allowed per assembly
Function continuous light	True

Operating temperature	-25 °C
Storage temperature	-25 °C

Material	Rubber seals and gaskets: Nitrile rubber
