855D-P00SC20B10L7L8L4L3P1

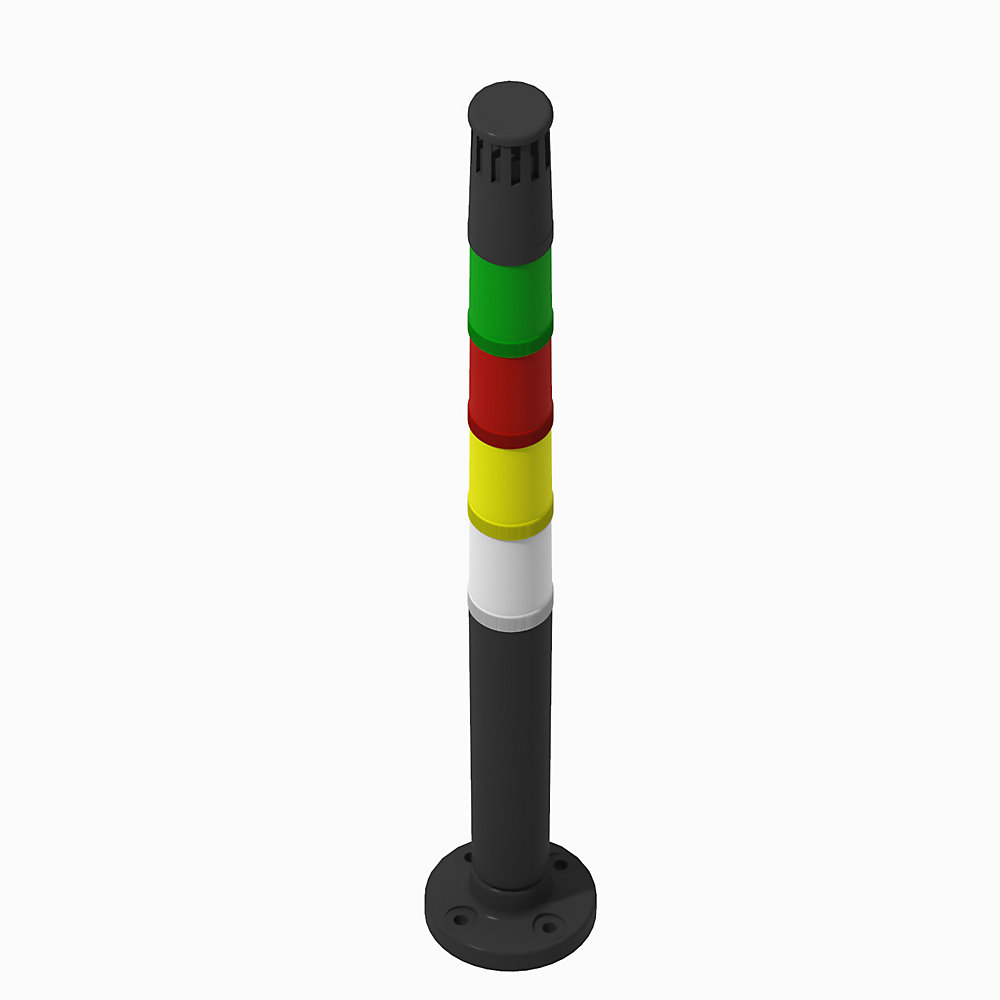

Preassembled Stack Light 30 mm Stack Lig

Name: Preassembled Stack Light 30 mm Stack Lig
Brand: Rockwell Automation
SKU: 855D-P00SC20B10L7L8L4L3P1

Serial #:

Lifecycle status: Active

Description

Compact Tower Light, 30 mm, Surface-Mount, No Network Option, Stranded Cable, 2 meter, Yellow Jacket, Black, 120V AC, Clear Flashing LED, Yellow Flashing LED, Red Flashing LED, Green Flashing LED, None Sound Alarm - Pulsing Tone

Lifecycle status: Active

Description

Unique Product Identifier	855D-P00SC20B10L7L8L4L3P1
UPC	885630109350
Estimated Lead Time	84 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Sub Brand	Preassembled Stack Light

Current consumption	Sound modules: 22 mA
Estimated light output	Level-4 module, green LED: 1500 mcd
Flashing frequency, approx	Level-4 module: approximately 2 Hz
Function acoustic	False
Lamp life rating	Level-4 LED module: 100000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Operating voltage	Light modules and sound modules: 120V (±10%) @ AC, 60 Hz
Rated operating voltage Ue	120 V
Sound module rating	Level-5 sound module: 20000 h
Voltage type for actuating	AC

Mechanical

Decibel rating	Piezo sound module: 85 dBa (+2 dB/-5 dB)
Degree of protection (IP)	IP65
Degree of protection (NEMA)	4X
List of degrees of protection (NEMA)	4, 4X, 13
Loudness	85 dBb
Outer diameter	30 mm
Shock	5 module stack: 35 G
Vibration	5 module stack: 2.0 G

Construction

Cable length and termination	2 m, flying leads, Yellow jacket
Flashing light	True
Function flashlight	True
Housing color	Black
Level-1 lens color/ sound	Clear
Level-1 module type	Flashing LED (2 flashes per s)
Level-2 lens color/ sound	Yellow
Level-2 module type	Flashing LED (2 flashes per s)
Level-3 lens color/ sound	Red
Level-3 module type	Flashing LED (2 flashes per s)
Level-4 lens color/ sound	Green
Level-4 module type	Flashing LED (2 flashes per s)
Level-5 lens color/ sound	Sound module
Level-5 module type	Piezo sound alarm, pulsing tone (85 dBa (+2 dB/-5 dB)): Sound module must be on the top-most level, Only one sound module is allowed per assembly
Mounting type	Surface mount

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Operating temperature	-25 °C
Storage temperature	-25 °C
