855D-P00SC20B10L6L5L8L4L3

Preassembled Stack Light 30 mm Stack Lig

Name: Preassembled Stack Light 30 mm Stack Lig
Brand: Rockwell Automation
SKU: 855D-P00SC20B10L6L5L8L4L3

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of July 31, 2025, the Preassembled Stack Light 30 mm Stack Lig will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: July 31, 2025 Replacement Category: Engineering Replacement

Description

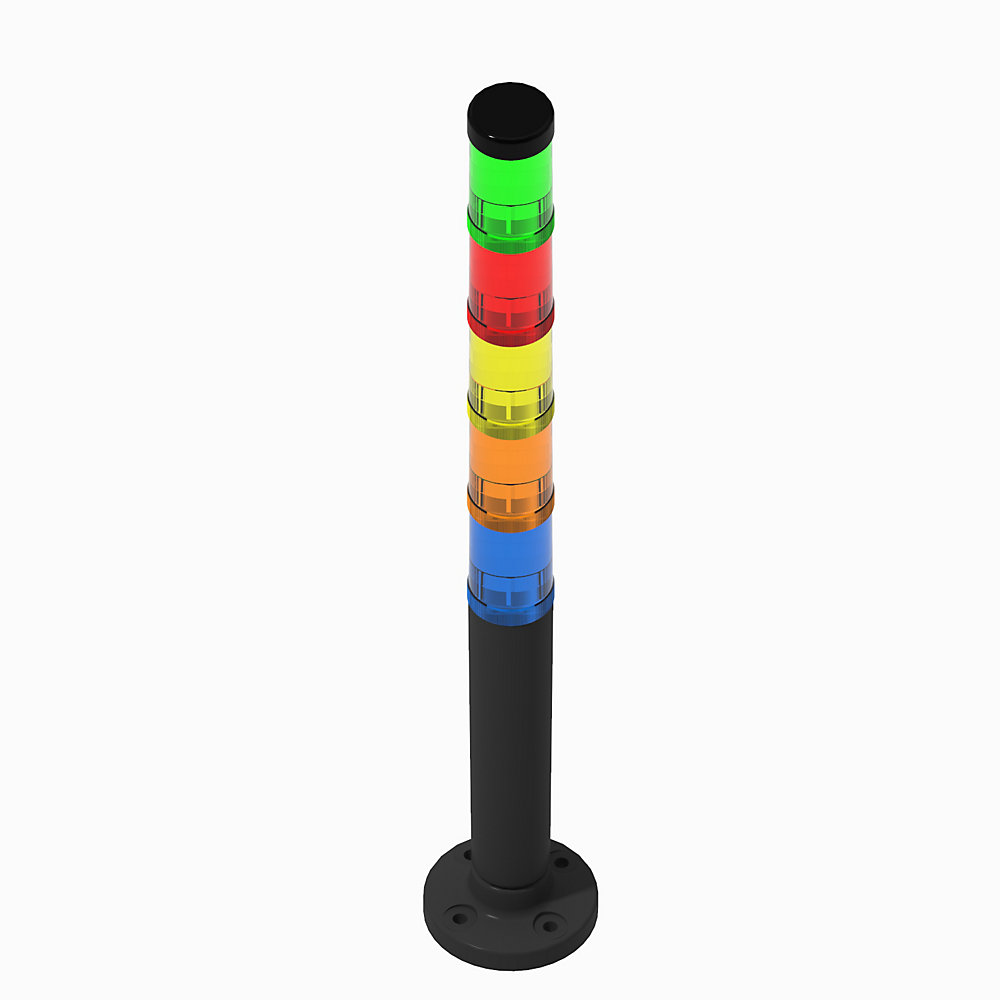

Compact Tower Light, 30 mm, Surface-Mount, No Network Option, Stranded Cable, 2 meter, Yellow Jacket, Black, 120V AC, Blue Flashing LED, Amber Flashing LED, Yellow Flashing LED, Red Flashing LED, Green Flashing LED

Lifecycle status: Discontinued

Discontinued Date: July 31, 2025 Replacement Category: Engineering Replacement

Description

Unique Product Identifier	855D-P00SC20B10L6L5L8L4L3
UPC	887172730092
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Sub Brand	Preassembled Stack Light

Current consumption	Sound modules: 22 mA
Estimated light output	Level-5 module, green LED: 1500 mcd
Flashing frequency, approx	Level-5 module: approximately 2 Hz
Function acoustic	False
Lamp life rating	Level-5 LED module: 100000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Operating voltage	Light modules and sound modules: 120V (±10%) @ AC, 60 Hz
Rated operating voltage Ue	120 V
Voltage type for actuating	AC

Mechanical

Degree of protection (IP)	IP65
Degree of protection (NEMA)	4X
List of degrees of protection (NEMA)	4, 4X, 13
Outer diameter	30 mm
Shock	5 module stack: 35 G
Vibration	5 module stack: 2.0 G

Construction

Cable length and termination	2 m, flying leads, Yellow jacket
Flashing light	True
Function flashlight	True
Housing color	Black
Level-1 lens color/ sound	Blue
Level-1 module type	Flashing LED (2 flashes per s)
Level-2 lens color/ sound	Amber
Level-2 module type	Flashing LED (2 flashes per s)
Level-3 lens color/ sound	Yellow
Level-3 module type	Flashing LED (2 flashes per s)
Level-4 lens color/ sound	Red
Level-4 module type	Flashing LED (2 flashes per s)
Level-5 lens color/ sound	Green
Level-5 module type	Flashing LED (2 flashes per s)
Mounting type	Surface mount

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Operating temperature	-25 °C
Storage temperature	-25 °C

Click the Download CAD button below to view all file formats available for download.

General	Publication
Product Cutsheet	--

Technical Data	Publication
855-td001_-en-p	855-TD001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	855D-P00SC20B10L6L5L8L4L3
UPC	887172730092
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Electrical & Connectivity

Sub Brand	Preassembled Stack Light

Current consumption	Sound modules: 22 mA
Estimated light output	Level-5 module, green LED: 1500 mcd
Flashing frequency, approx	Level-5 module: approximately 2 Hz
Function acoustic	False
Lamp life rating	Level-5 LED module: 100000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Operating voltage	Light modules and sound modules: 120V (±10%) @ AC, 60 Hz
Rated operating voltage Ue	120 V
Voltage type for actuating	AC

Physical Characteristics

Mechanical

Degree of protection (IP)	IP65
Degree of protection (NEMA)	4X
List of degrees of protection (NEMA)	4, 4X, 13
Outer diameter	30 mm
Shock	5 module stack: 35 G
Vibration	5 module stack: 2.0 G

Construction

Cable length and termination	2 m, flying leads, Yellow jacket
Flashing light	True
Function flashlight	True
Housing color	Black
Level-1 lens color/ sound	Blue
Level-1 module type	Flashing LED (2 flashes per s)
Level-2 lens color/ sound	Amber
Level-2 module type	Flashing LED (2 flashes per s)
Level-3 lens color/ sound	Yellow
Level-3 module type	Flashing LED (2 flashes per s)
Level-4 lens color/ sound	Red
Level-4 module type	Flashing LED (2 flashes per s)
Level-5 lens color/ sound	Green
Level-5 module type	Flashing LED (2 flashes per s)
Mounting type	Surface mount

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Compliance & Environment

Operating temperature	-25 °C
Storage temperature	-25 °C
